Technics SX-PX201

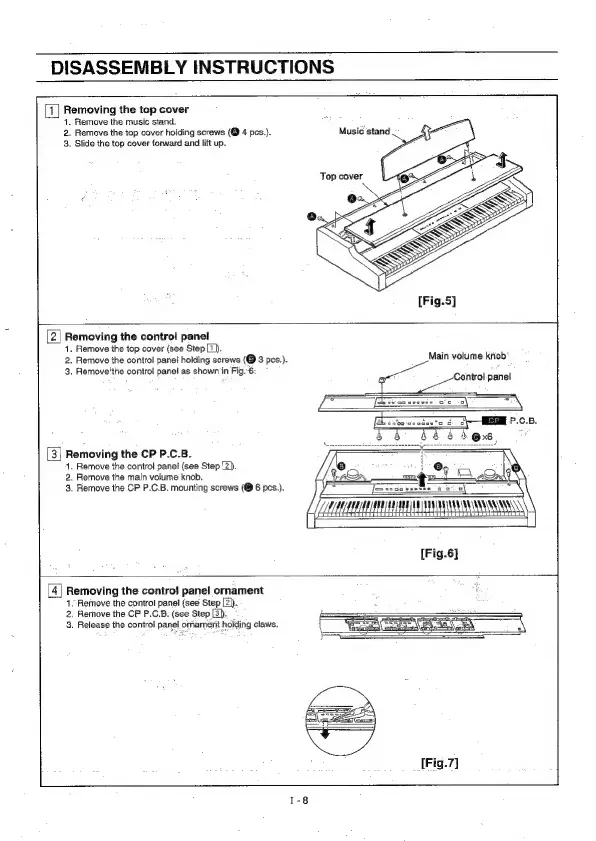

DISASSEMBLY INSTRUCTIONS
Removing the top cover
1. Remove the music stand.
2, Remove the top cover holding screws (@ 4 pcs.}.
3. Slide the top cover forward and lift up.
[Fig.5]
nN
Removing the control panel
1. Remove the top cover (see Step
2. Remove the control panel holding screws (@ 3 pcs.).
3, Remove'the control panel as shown in Fig.’6:
Main volume knob*
Control panel
Removing the CP P.C.B.
4. Remove the control panel (see Step 2).
2, Remove the main volume knob.
3. Remove the CP P.C.B. mounting screws (@ 6 pes.).
Ey
[Fig.6]
>
[4] Removing the contro! panel ornament
1.Remove the control panel (see Step [2)).
2, Remove the CP P.C.B. (see Step [3)).
3. Release the control panel omament holding claws,
[Fig.7]
