Attaching / Detaching the stand and wall mounting
ATTACHING/DETACHING THE STAND
Attaching the Stand
Please lay the TV down on a fl at and clean surface.
1
3x M4x10
3
45°
45°
4
90°
5
PUSH
O
p
e
n
C
l
o
s
e
6
1x M4x10
2

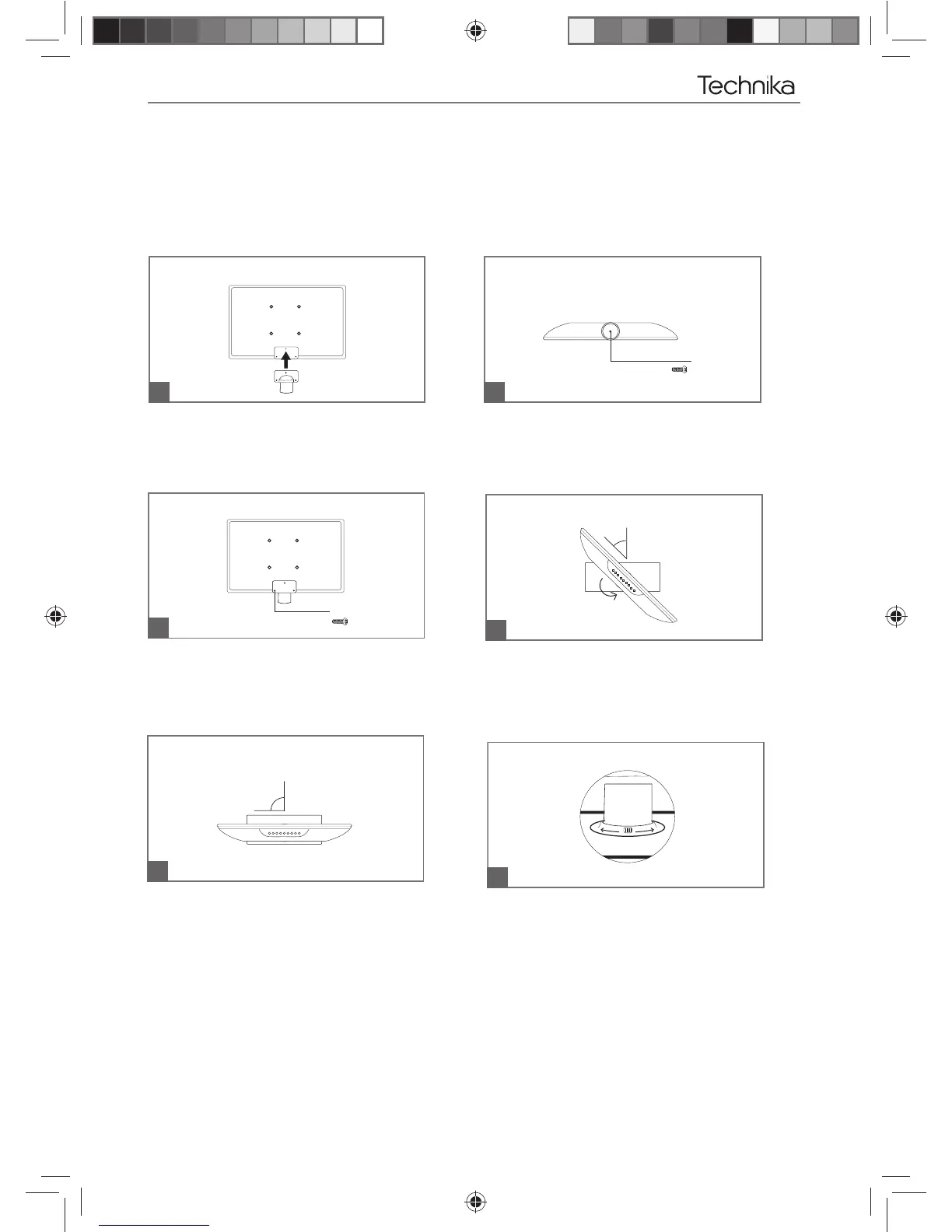

Fig 1) Attach the stand neck to the rear of the TV
set.
Fig 2) Secure the neck underneath with 1 x (M4x10)
screw provided.
Fig 5) Gently twist the base to lock the neck and
base together.
Fig 6) Once the base and neck are locked a small
button will click that is located on the stand neck.
Fig3) Secure the neck to the rear of the TV set with
the 3 x (M4x10) screws provided.
v Fig 4) Once the neck has been connected attach
the base to the neck as a 45 degree angle.
