Technika 22-212s - Connections; TV Input and Output Ports Diagram

15
15
15
15
RF INEARPHONE AV IN COAX OUT
SCART
CI IN
HDMI 2 HDMI 1
USB 3 USB 2
USB 1
LAN

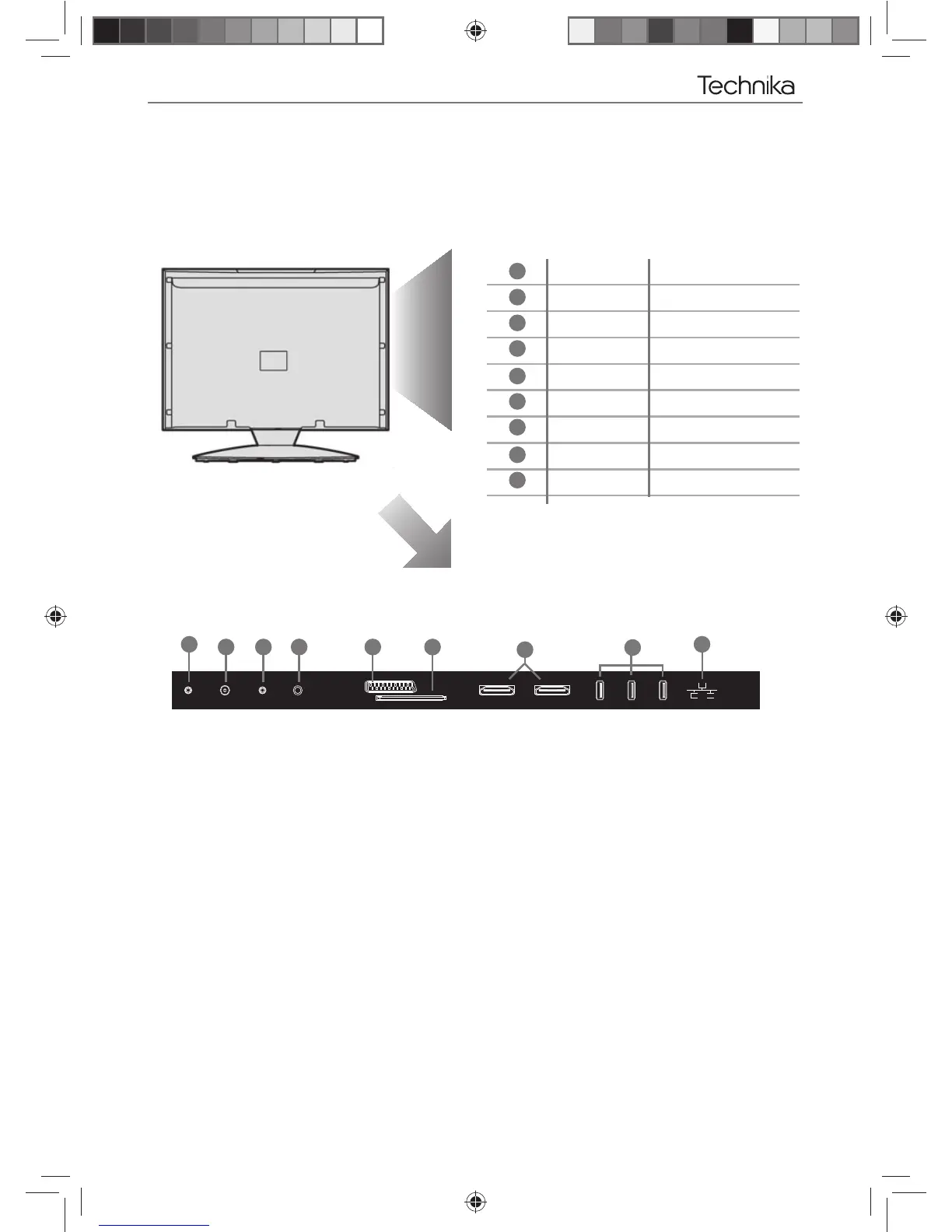

CONNECTIONS
Connections
A
BCD E F
G
H
HEADPHONES 3.5mm Headphone output
RF IN RF / TV Aerial Input
AV IN 3.5mm (Use cable provided)
COAX Audio Out Digital Coax output
SCART SCART input
CI CARD IN Common Interface Card Input
2 x HDMI HDMI input
3 x USB USB port
LAN Network connection
