CONNECTIONS

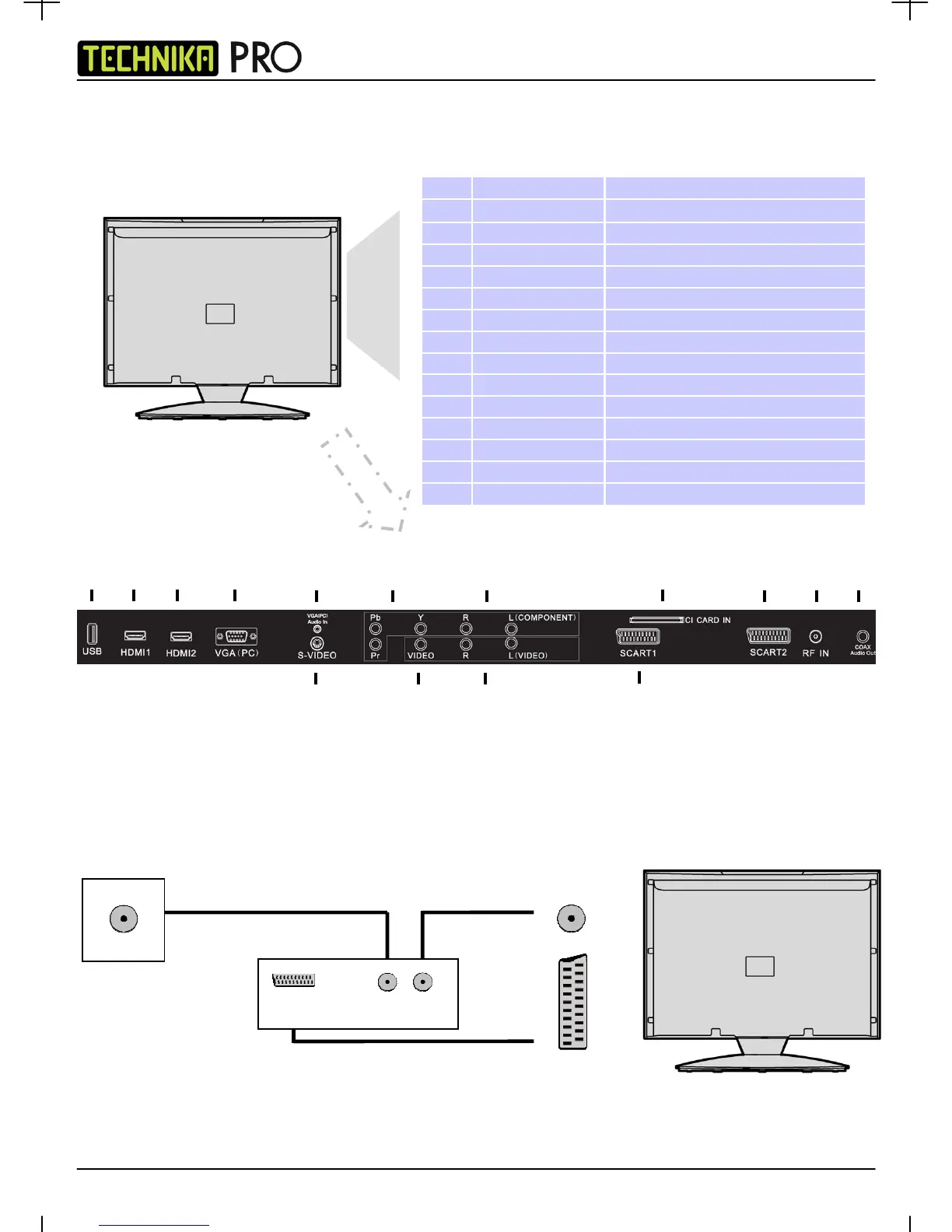

Rear Connections
Connecting a DVD or Video recorder
Source should be set to SCART
A USB USB port
B HDMI 1 HDMI input
C HDMI 2 HDMI input
D VGA(PC) VGA-PC input
E VGA(PC) Audio In 3.5mm PC audio input
F S-VIDEO S-Video input
G COMPONENT (HD) Component input (YPbPr)
H VIDEO Video input
I R/L (COMPONENT) Component audio input
J R/L (VIDEO) S-Video/Video audio input
K SCART 1 SCART input
L CI CARD IN Common Interface Card Input
M SCART 2 SCART input
N RF IN RF / TV Aerial Input
O COAX Audio Out Digital Coax output (all sources)
RF IN
SCART
Wall Aerial
Point
SCART
OUT
RF
IN
RF
OUT
DVD or VCR
12
IDTV
A B C D E G I L M N O
F H J K
To Next Page
