When you have installed the hob, make sure that
• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection
barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.
Fitting the foam seal
Turn the unit over and carefully attach the foam seal to the underside edge of the
glass.

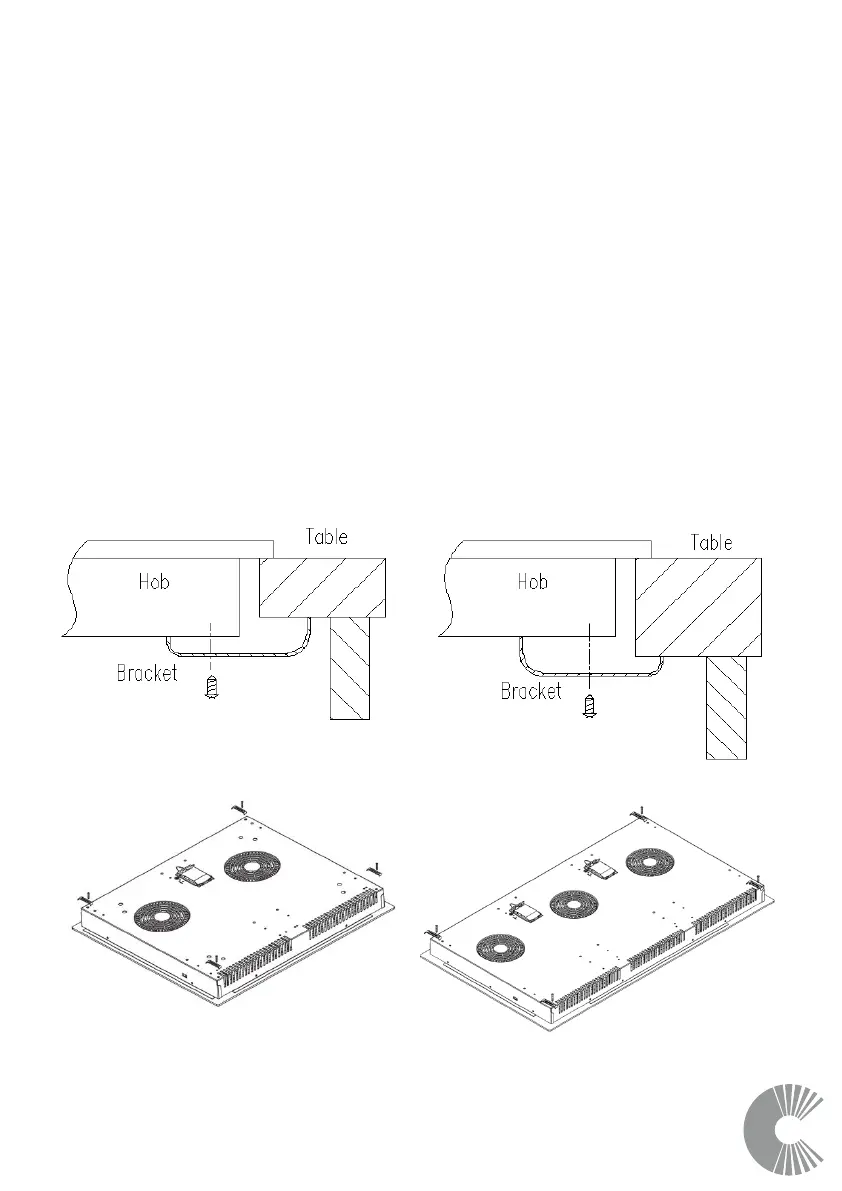

Locating the fixing brackets
• Fix the hob on the work surface by screwing the four brackets on the bottom of
hob after installation.
• Adjust the bracket position to suit for different work surface’s thickness.
• Ensure the hob sits flat and square to the work surface and doesn’t slide around.
TGC6IND-5 TGC9IND-5
