6.4 Free room
When installing the unit leave enough free room to allow opening, correct use and easy maintenance in safe
conditions.

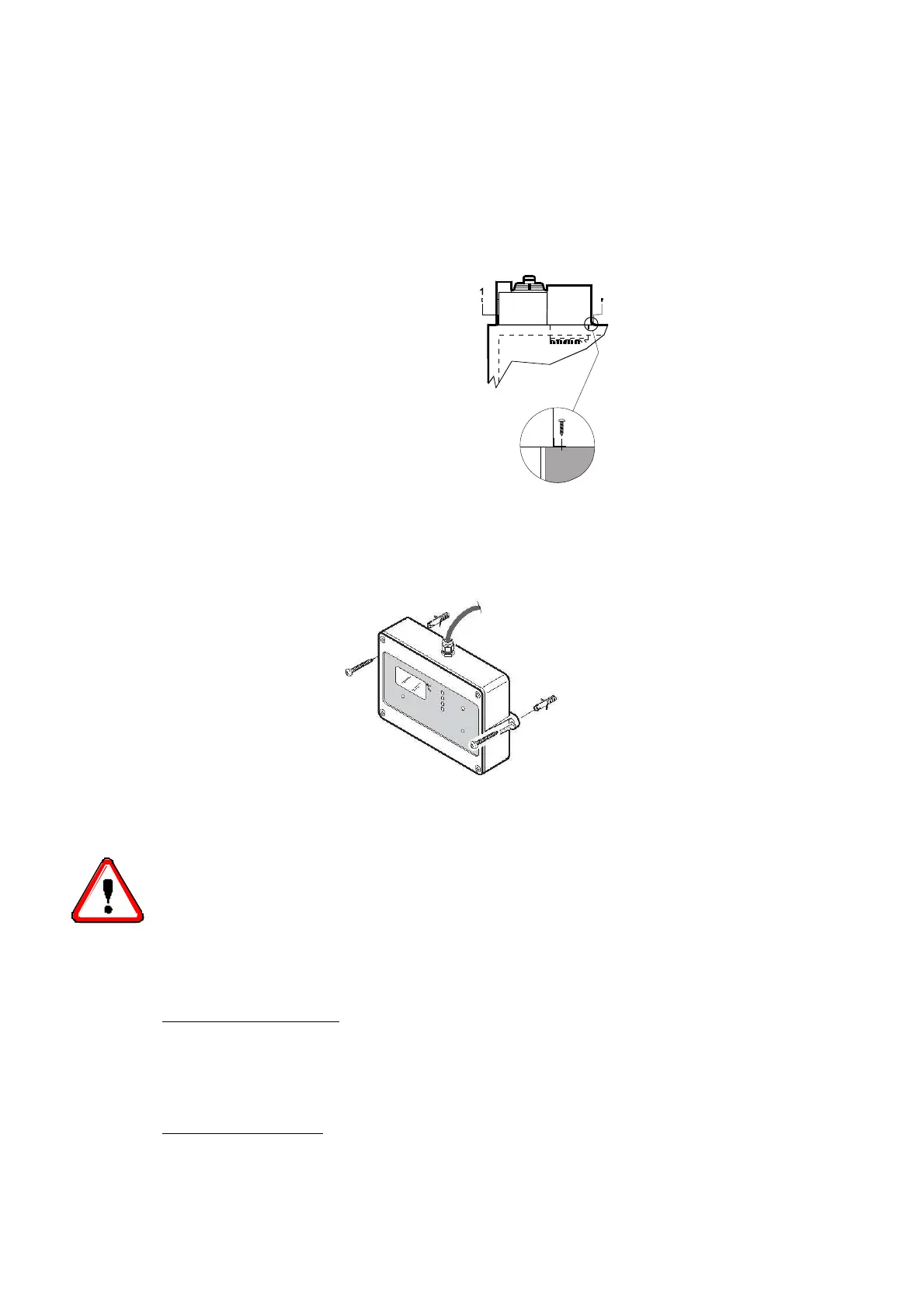

6.5 Installation
A) Prepare a opening with suitable dimensions in the cold room wall (see pictures above).
Position the unit onto the cold room wall inserting the evaporator section in the opening.
B) Fix the unit using the screws supplied.
6.6 Fitting the remote panel:
Fix the back plate to the wall using the pre-drilled holes; be careful the panel is kept in a vertical position.
Fit the connecting cable between panel and unit making sure not to bundle it with other cables.
ATTENTION
Check that the unit and its devices have suffered no damages
during transport. Pay special attention to the components
secured to the electric panel door and to the refrigerating circuit
pipes. Mount the unit as shown in the drawings; make sure that the
electric connections are carried out properly.
6.7 Safety devices
The following
mechanical safety devices
are supplied:
1. Fixed upper and side protections for evaporator and condensing unit, secured by
locking screws.
2. External fan protections placed on the evaporating and condensing units, secured
with screws.
The following
electrical safety devices
are supplied:
a. Protection of fans (belonging to motors) against high power absorption; with
automatic reset.
b. High pressure switch (only for special components) to protect against excessive
pressure; with automatic reset.
