Easy Lamp: Service & maintenance manual – rev. 1.0
Page 2.2
Nominal voltage: 12V
Nominal capacity ( 20 hour rate) : 7.0Ah
Dimensions:
Total height: 3.937" ( 100mm)
Height: 3.740" ( 95mm)
Length: 5.945" ( 151mm)
Width: 2.559" ( 65mm)
Mass weight: approx. 2.53kg
Capacity ( 25 degrees Celsius) :
7.0Ah ( 20 hour rate/ 385mA)
7.0Ah ( 10 hour rate/ 700mA)
2 hour rate discharge cut-off voltage 10.2V/ 2.47A
Self discharge ( 25 degrees Celsius) :
90% ( residual capacity after standing 3 months)
81% ( residual capacity after standing 6 months)
62% ( residual capacity after standing 12 months)

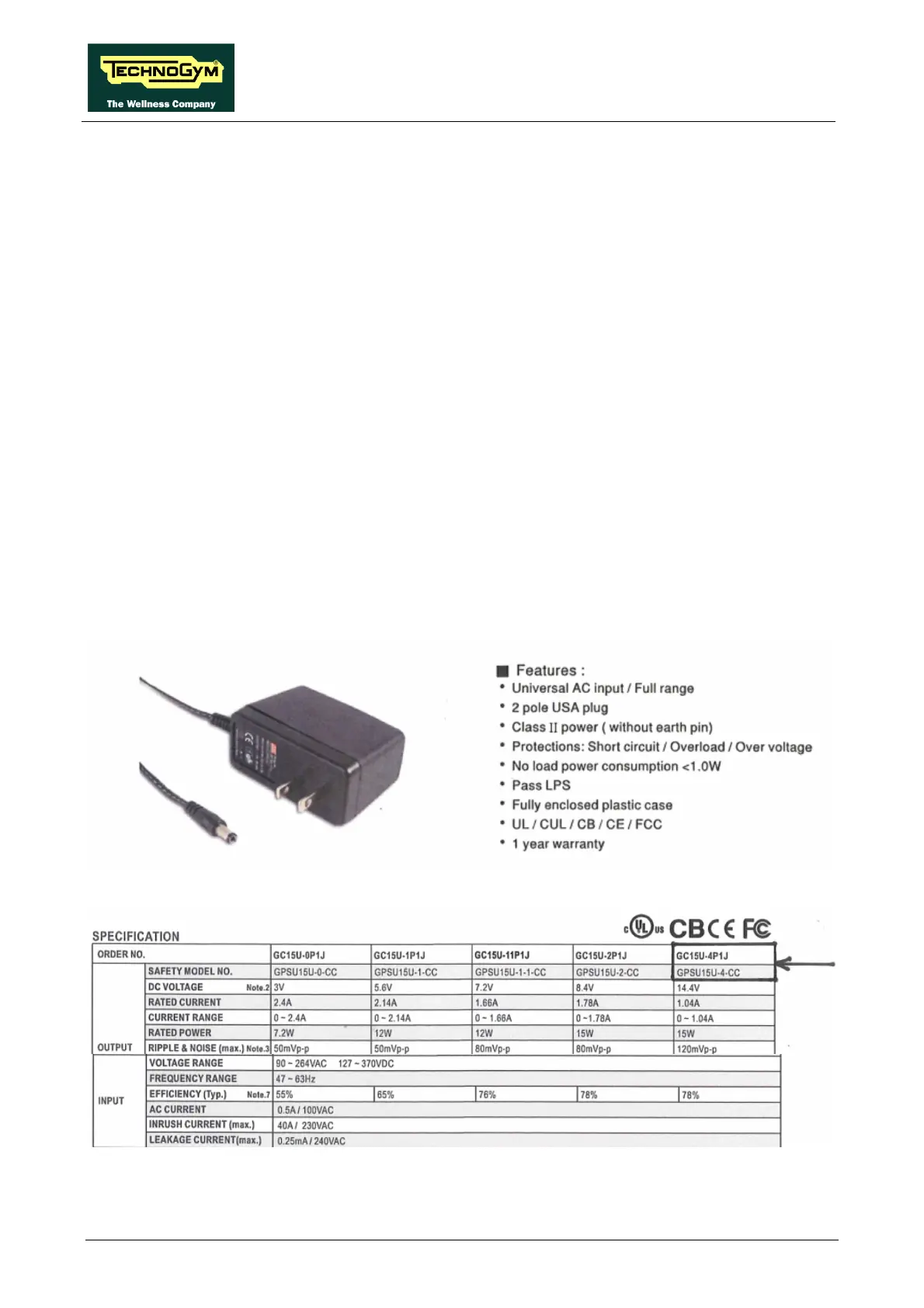

2.3. POWER SUPPLY (BATTERY CHARGER)
