3. PRINCIPLES OF OPERATION
3.1. ELECTRONIC BOARD
One unique electronic board manages the Easy Lamp. It receives power from the power supply
and battery and switch on the 3 led lamps according to the selected program. Lamps colour can be
green, red and blue. Green and red are the standard operating colours referred to the cyclic
program set. While blue light flashes during lamp programming or when battery is low.

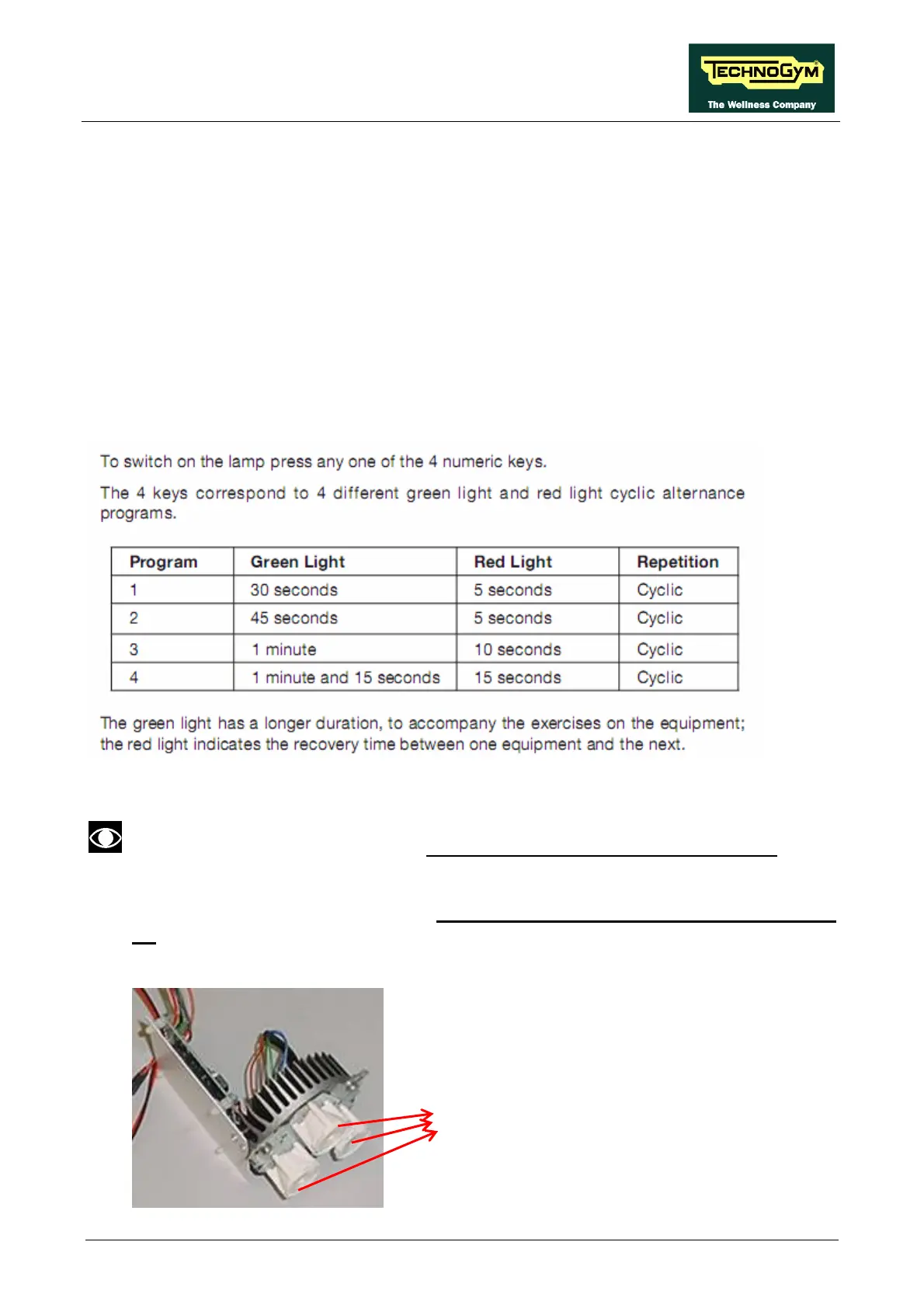

See below the standard program setting (extracted from User’s manual):
Please refer to the user’s manual to the change/ customize the lamp programming.
T o switch on the lamp the first time it’s mandatory to connect the power supply even if
battery is fully charged. In fact when you connect the power supply you can see a red
flash that confirm lamp can be switched on then by the remote control. So, every time
you replace or disconnect the battery, you need to connect the power supply for about 10
sec. otherwise Easy Lamp won’t switch on by itself. After this first pulse it can be switch
on and off normally by the remote control.
3 led lamps
