Easy Lamp: Service & maintenance manual – rev. 1.0\
Page 4.4

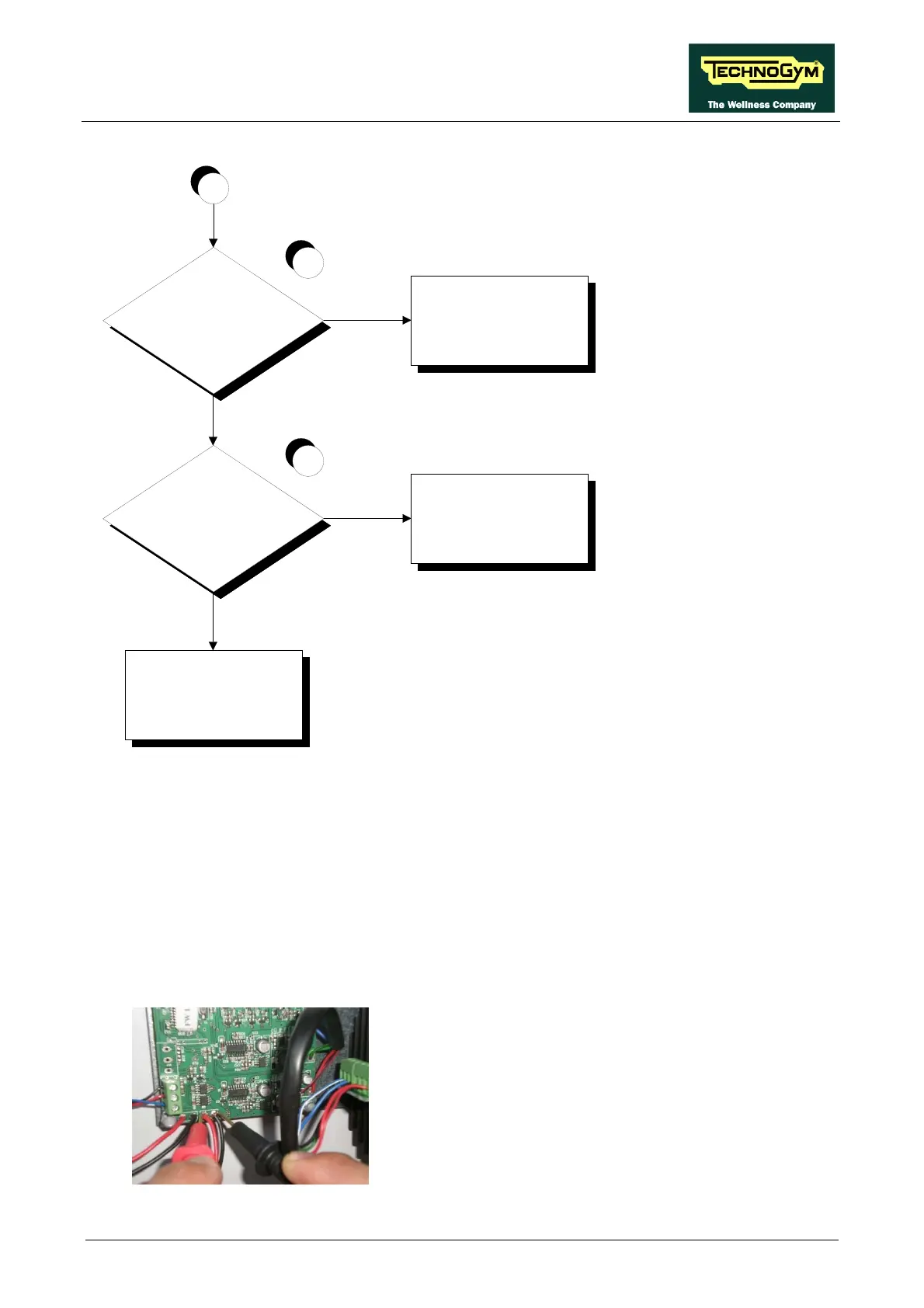

A
Check if y ou hav e the main
power at the output of the
Power Supply .
Replace the Power Supply.
Check if y ou hav e the power at
the output of the Easy Lamp
power supply plug.
Repair or replace the plug.
Check the power supply wiring and
the diode in the red cable. Repair it
or replace the electronic board.
NO
NO
YES
YES
5
6
Follow the procedure step by step to correctly diagnose the problem. Take particular care with the
checks highlighted by circled numbers, which are described in detail below:
(1) Place the tester probes across pins P1 and P2 and check if you measure about 13,6Vdc.
(2) To switch on the Easy Lamp press any one of the 4 numeric keys. Related program should
starts.
(3) Place the tester probes across pins B1 and B2 and check if you measure about 13Vdc.
To Next Page
