2.4. IBL2403 Dimensions
44.0 mm 58.0 mm
65.0 mm
19.0 mm
18.0 mm
50.0 mm
2.5 mm
4 mm
4.0 mm
0.098 “
0.748 “
1.732 “
2.283 “
0.157 “
0.157 “0.709 “
1.968 “
2.559 “

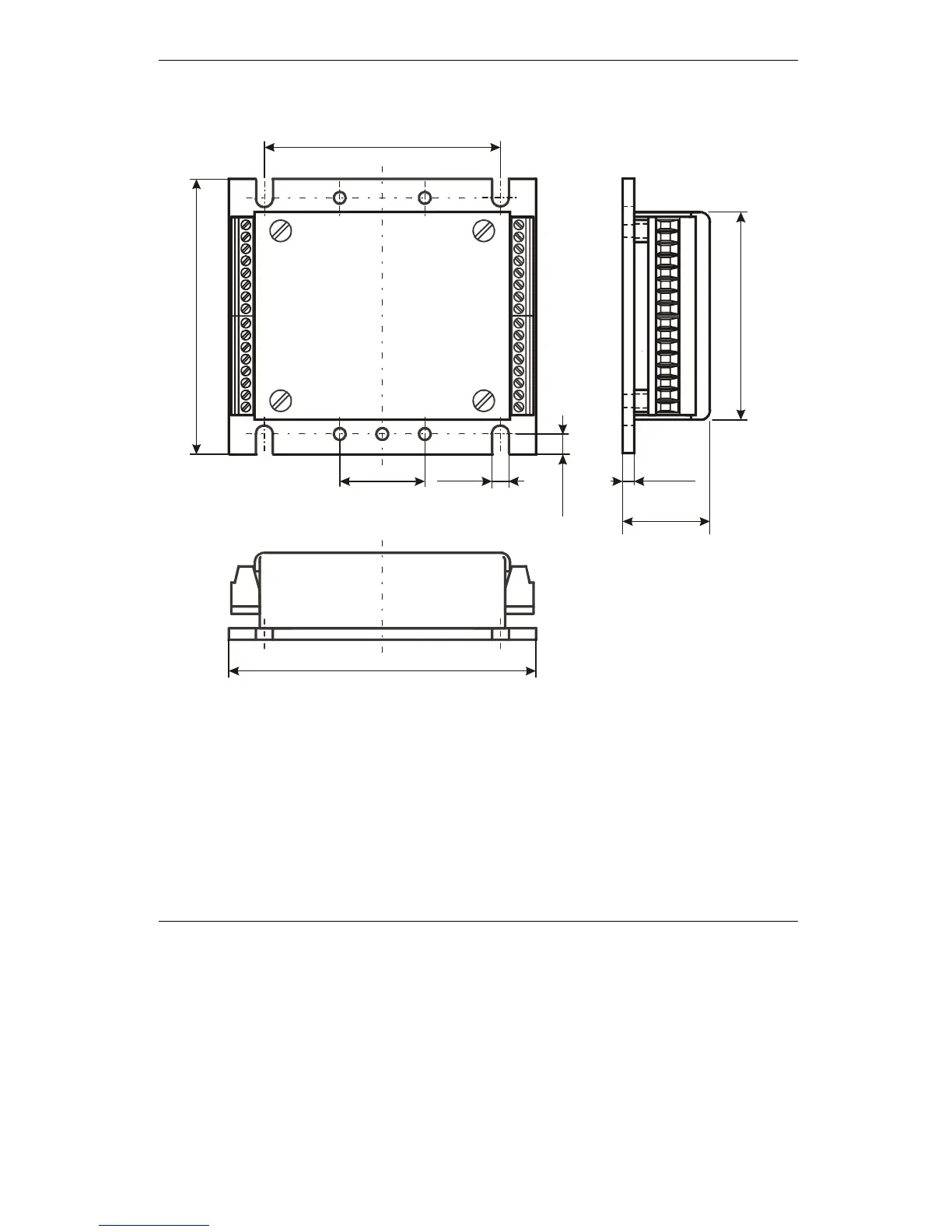

Figure 2.11. IBL2403 drive dimensions
