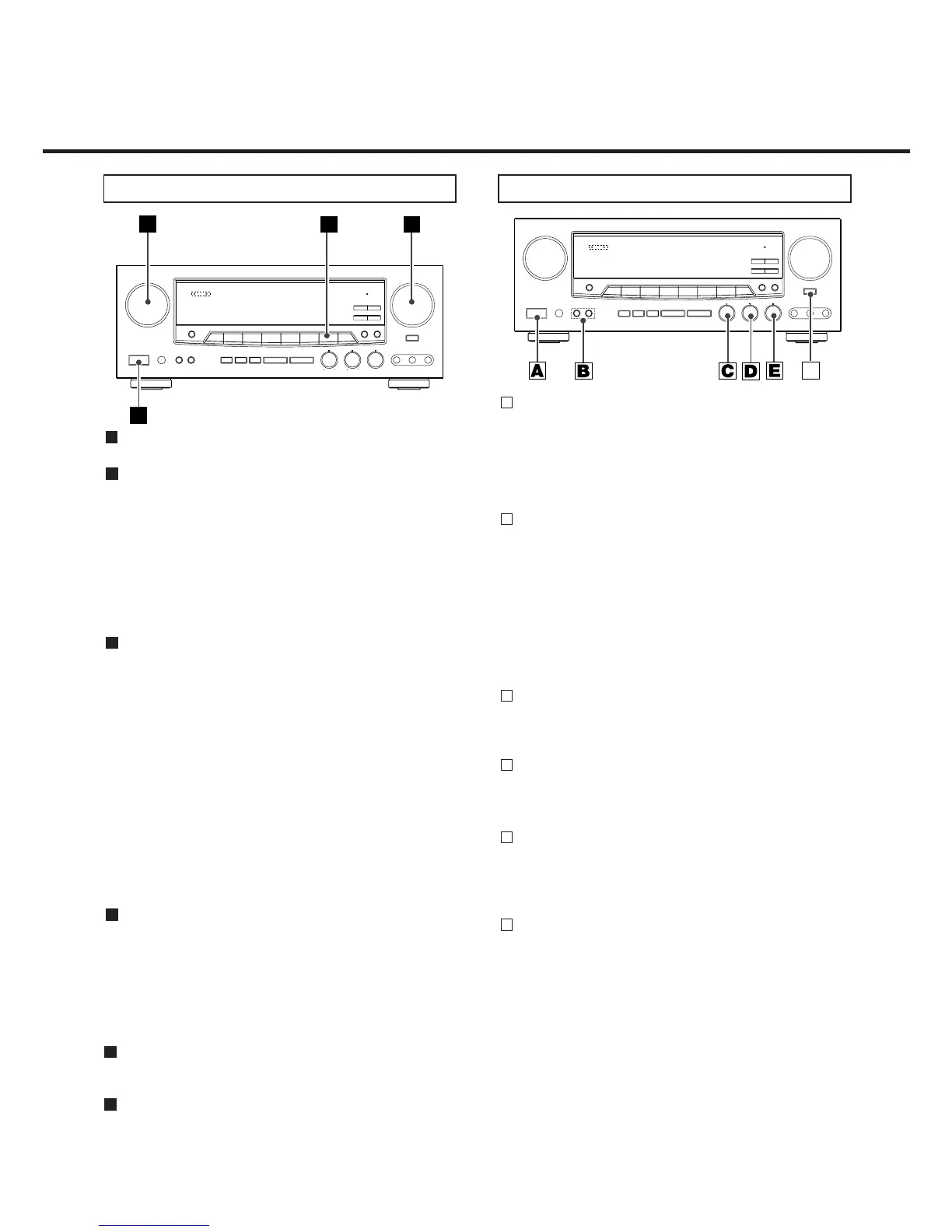

Basic Operations
11
BALANCE Control
This control is used to adjust the balance of the front
speakers.
Normally set to the center position.
E
BASS BOOST Switch
Bass frequencies (lows) can be increased by pressing
the bass boost switch. However, do not use the bass
boost feature at high volume levels or permanent
damage may occur to your speakers.
F
Bass Control
This control is used for adjusting the level of the low
frequency sound range.
Treble Control
This control is used for adjusting the level of the high
frequency sound range.
D
C
POWER STANDBY/ON Button
Press this button to turn the power on.
Press it again to turn the system off (power standby
mode).
The STANDBY indicator lights up in power standby mode
and goes out when this unit is turned on.
SPEAKER Select Button
With the unit in the STEREO mode, SPEAKERS A and B
can be selected simultaneously. lf the unit is in any of
the SURROUND MODEs (DTS, DOLBY DIGITAL, DOLBY
PRO LOGIC, 3 STEREO, other SURROUND MODES),
speaker selection is automatically limited to SPEAKERS
A only,
B
A
Press the POWER button to ON.
Select the desired source with the FUNCTION (source)
selector.
2
1
VCR/VID 1
TV/ VID 2 (OPT 1, OPT 2, COAX)
AUX/ VID 3 (OPT 1, OPT 2, COAX)
DVD/ CD (OPT 1, OPT 2, COAX)
TAPE
CD/ (OPT 1, OPT 2, COAX)
TUNER (frequency)
Play the source, and gradually turn up the volume to the
required level with the MASTER VOLUME control.
4
You can record a source such as a Compact Disc onto a
cassette tape connected to the TAPE REC jacks.
Turn the FUNCTION (source) selector corresponding to
the source to be recorded.
Start recording.
2
1
If "DTS", "DOLBY DIGITAL" or "SOURCE" blinks on the
display:
A digital input souce(OPT 1, 2, COAX) has been selected,
but the source isn't connected or is not switched on.
In that case, connect and switch the source on, or select
ANALOG by pressing the DIGITAL INPUT button.
< If the DTS or DOLBY DIGITAL button is pressed in
ANALOG mode, OPT 1 will be selected automatically.
Please select OPT1, OPT2 or COAX in accordance with
your connection.
When TV, DVD, AUX or CD is selected, press the
DIGITAL INPUT button and select "OPTICAL-1",
"OPTICAL-2", "COAXIAL" or "ANALOG" in accordance
with your connection.
3
1
4
2
3
F
Basic Operations (1) Basic Operations (2)
Recording a Source
To Next Page
