LIGHTS
P-Mentor – Aircraft Flight Manual Page 7 - 37
11.2. INTERNAL LIGHTS
The instrument panel can be illuminated by three light strips and two spotlights. The
map lights and instrument dimming rheostats are not directly illuminated.
On the “Internal lighting” instrument panel you can turn ON and regulate the
following elements:
- “LH MAP LIGHT” rheostat turn on and regulates the left directional
cockpit spotlight.
- “RH MAP LIGHT” rheostat turn on and regulates the right directional
cockpit spotlight.
- “INSTRUMENTS” rheostat turn on and regulates the upper left and right
led strip lights. Indirectly, if the displays are set on PHOTOCELL mode
and regulated correctly, the input light level inside the cockpit modify the
display brightness too.
- “EMERG LIGHT” switch turn on the upper central led light.

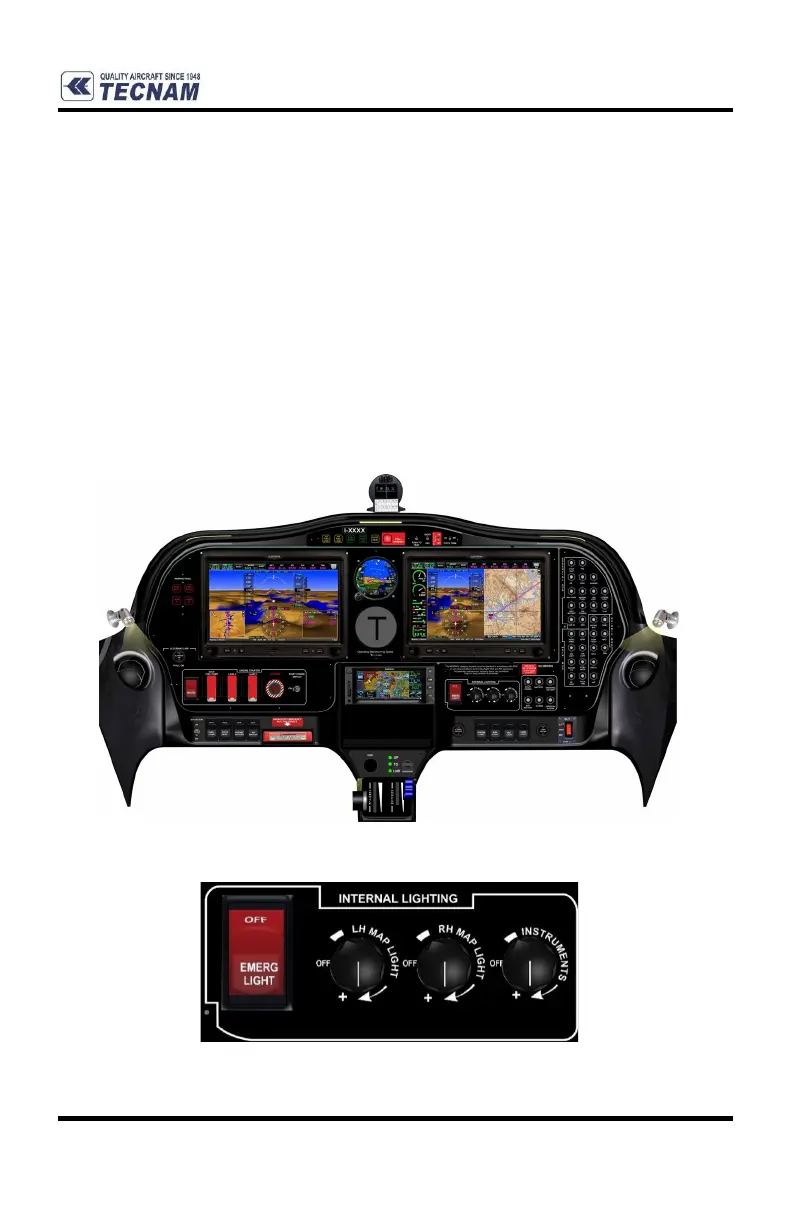

Figure 7-23 – Cockpit internal lights
Figure 7-24 –Internal Lighting panel
