1. GENERAL
1.1. INTRODUCTION
This section contains supplemental information to operate, in a safe and efficient
manner, the aircraft when equipped with DME KN 63 device.
This supplement must be attached to the Airplane Flight Manual; the information
contained herein supplements the basic Airplane Flight Manual. For limitations,
procedures and performance information not contained in this supplement consult the
basic approved Airplane Flight Manual.
This system is composed by the KN63 (DME Receiver) and CI105-16 (DME Antenna).
The KN63 is designed to operate with the box present on PFD/MFD of G3x Touch
avionic suite (see Fig.S04-1) where range, speed, and time-to-station were indicated.
In order to provide Info from the DME to G3xt, the KN63 is connected to adapt GAD43e.
In order to have the audio link, the KN63 is connected to Garmin remote Audio panel
GMA 245R.
The DME KN63 is connected to the Main battery by the Avionic Switch.
The DME KN63 System is protected by means of one circuit breaker, located on the
breakers panel, labeled “DME”, linked to avionic bus.
Also the GAD43e is protected by a dedicated circuit breaker labelled “GAD 43” linked to
avionic bus.

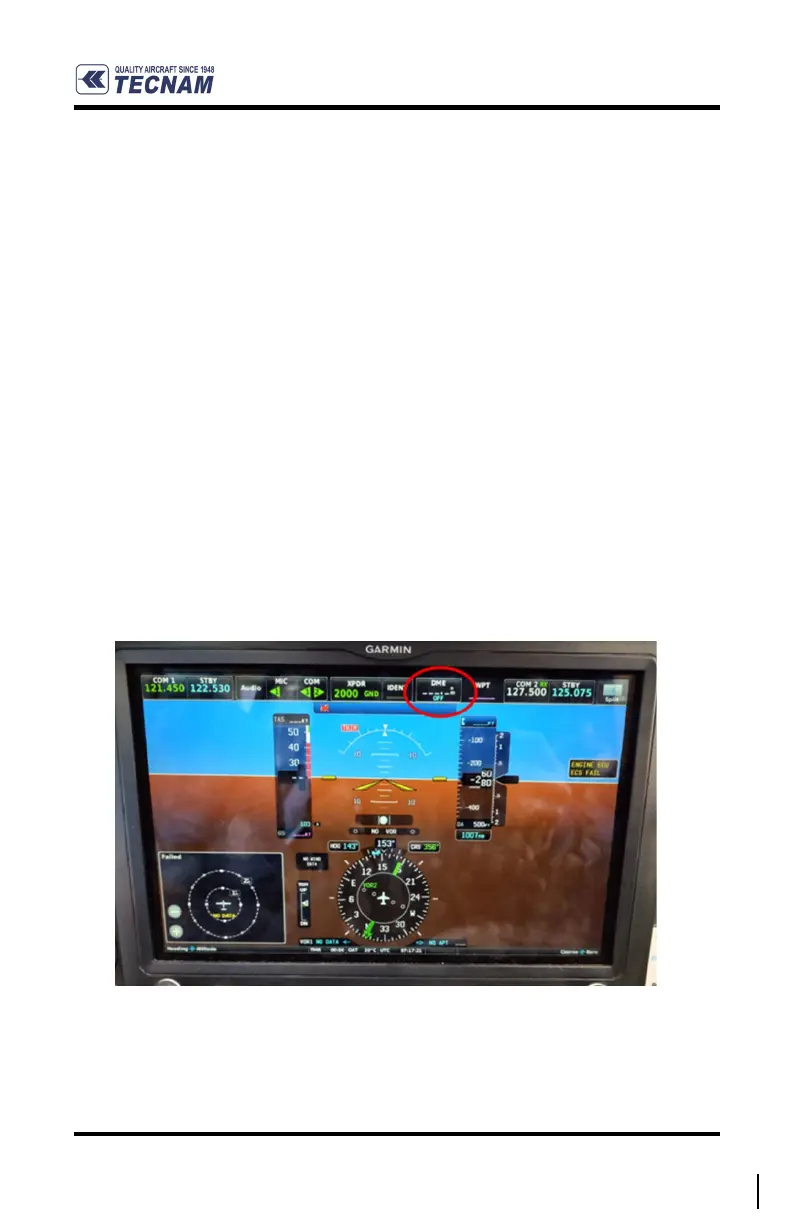

Figure S04-1 – DME Box on G3xt
