3-12
dn-03 (Input terminals status)
Use dn-03 to check the status of Input terminals.

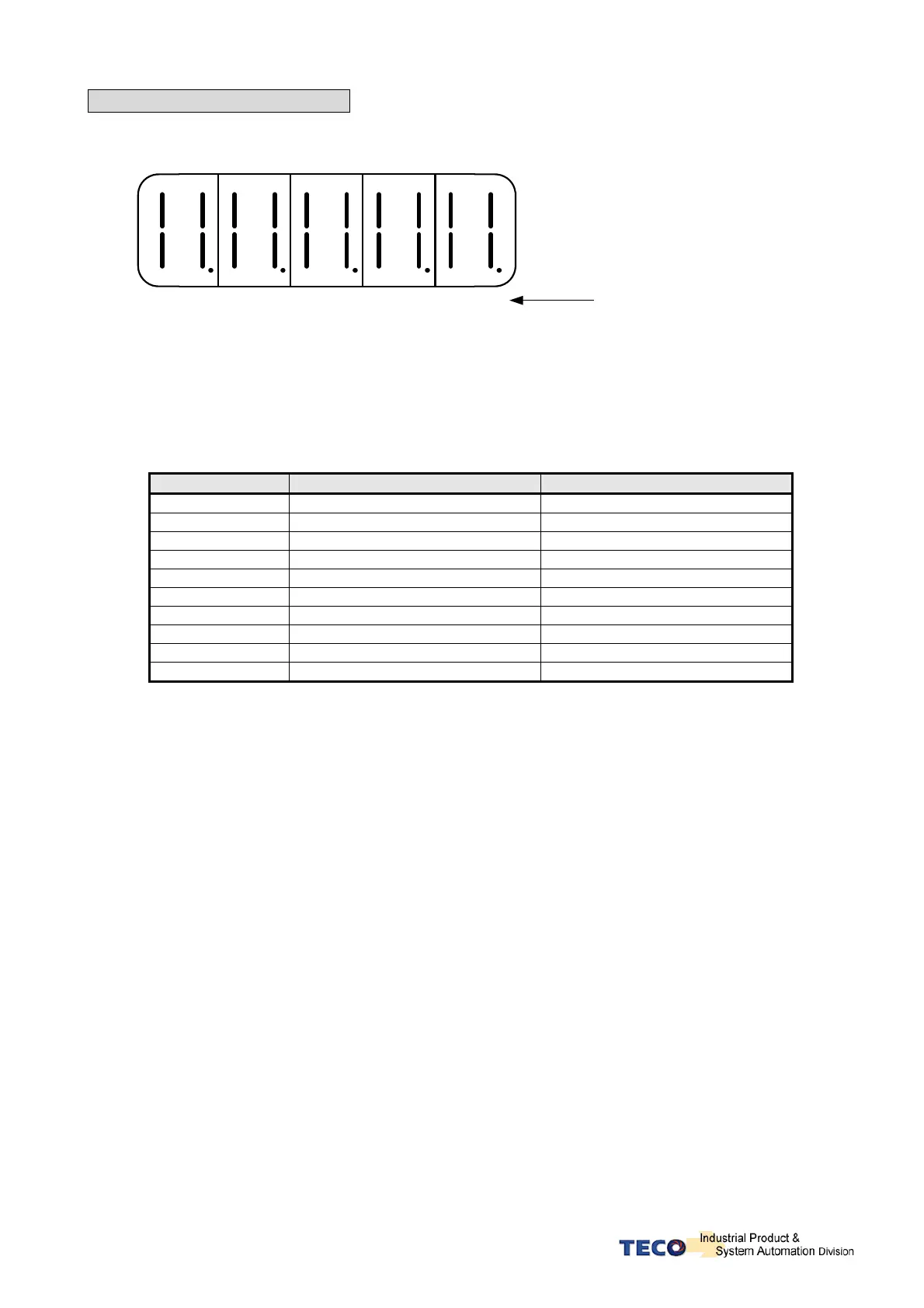

Digital Input status display is described below:
12345678
LED Number
910
When Input terminal signal has a low logic level (close loop with IG24), the corresponding LED will be on.
When Input terminal signal has a high logic level (open loop with IG24), the corresponding LED will be off.
Table below shows the functions of the digital input.
DI-1 ~ DI -10 are programmable Inputs. Default settings are shown below.
For programmable function list see section 5-6-1.
LED Number Input terminal number Default function
1 DI-1
SON
2 DI -2
ALRS
3 DI -3
PCNT
4 DI -4
CCWL
5 DI -5
CWL
6 DI -6
TLMT
7 DI -7
CLR
8 DI -8
LOK
9 DI -9
EMC
10 DI -10
SPD1
