TECO JSDAP Series User Manual

5-51
(4)

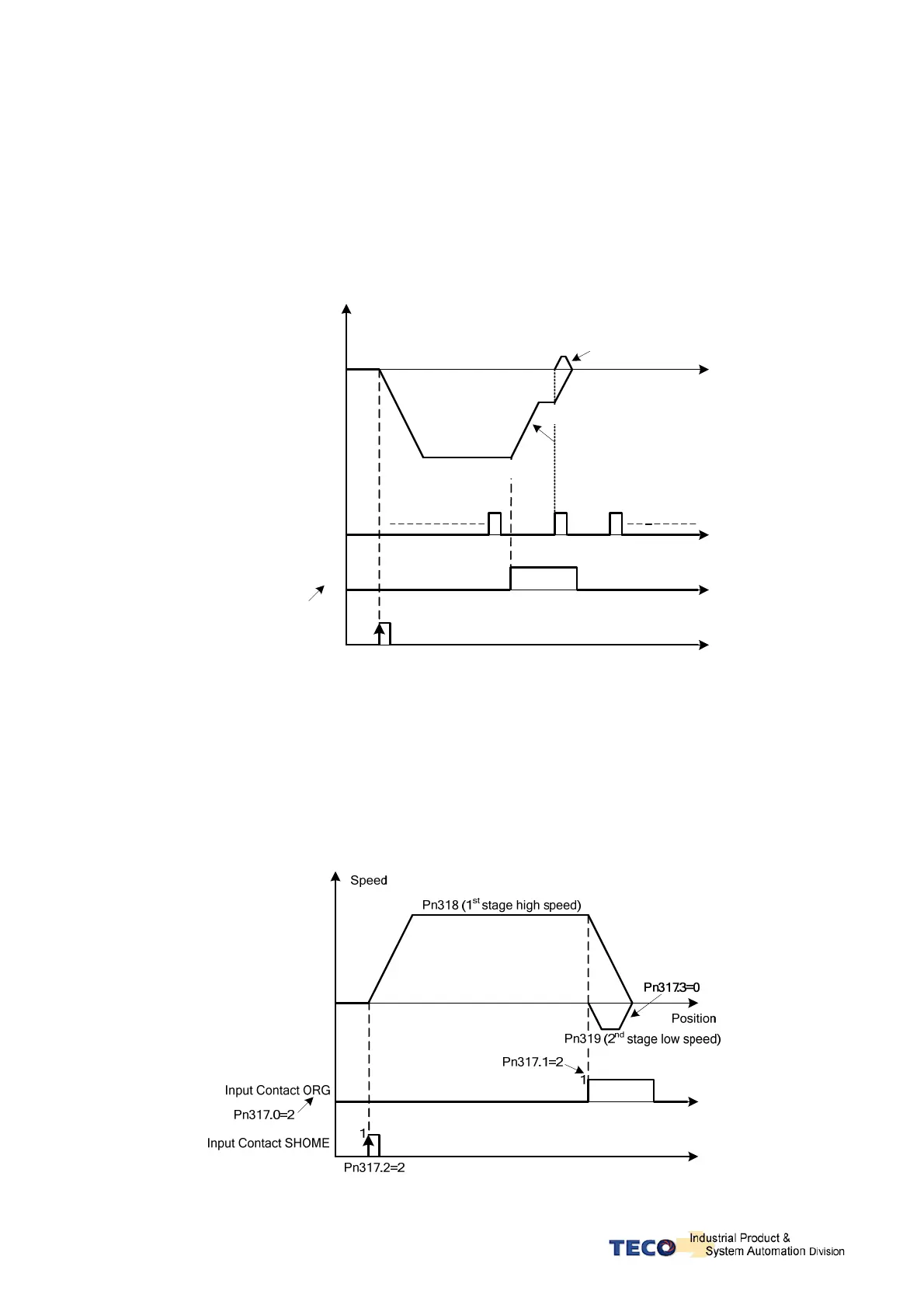

 Pn317.0=3(After Starting HOME routine, run CW in 1
st
preset high speed to search for HOME
Reference.(ORG)
 Pn317.1=1. After finding HOME Reference, continues in the same direction in 2
nd
preset low speed to
find the nearest Z Phase to be set as the HOME position.
 Pn317.2=2 Input Contact SHOME Starts the HOME routine.
 Pn317.3=0 Reverse search for HOME position
1
1
Speed
Position
Pn317.3=0
Z-Phase Pulse of
Motor Encoder
Input Contact ORG
Pn317.0=3
Input Contact SHOME
Pn319 (2
nd
Stage low speed)
Pn317.1=1
Pn318
(1
st
Stage High Speed)
Pn317.2=2
(5)
 Pn317.0=2. After Starting HOME routine, run CCW in 1
st
preset high speed to search for HOME Reference.
(ORG).
 Pn317.1=2. After Finding the HOME Reference, the Rising Edge of ORG sets the HOME Position.
 Pn317.2=2 Input Contact SHOME Starts the HOME routine.
 Pn317.3=0 Reverse search for HOME position
