TECO JSDAP Series User Manual

7-8

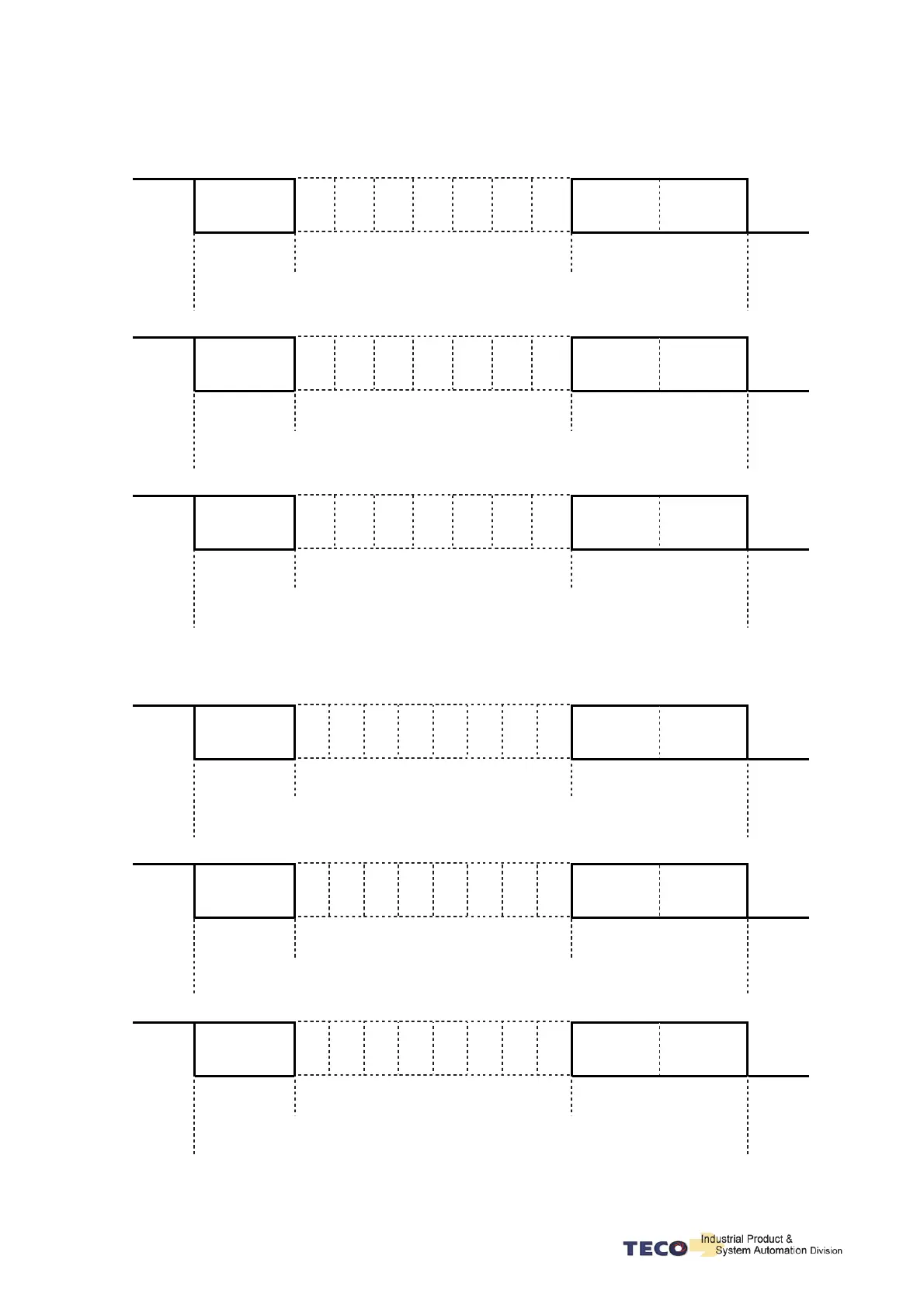

ASCII Mode Framing
10 bits Frame (7-bits Data)
7N2
Start
bit
0 1 2 3 4 5 6
Stop
bit
Stop
bit
←－－－ Data:7 bits －－－→
←－－－－－－－ Character Frame：10 bits －－－－－－－→
7E1
Start
bit
0 1 2 3 4 5 6
Even
parity
Stop
bit
←－－－ Data:7 bits －－－→
←－－－－－－－－ Character Frame:10 bits －－－－－－－→
7O1
Start
bit
0 1 2 3 4 5 6
Odd
parity
Stop
bit
←－－－ Data:7 bits －－－→
←－－－－－－－－ Character Frame:10 bits －－－－－－－→
11 bits Frame（8-bits Data）
8N2
Start
bit
0 1 234567
Stop
bit
Stop
bit
←－－－ Data:8 bits －－－→
←－－－－－－－－ Character Frame:11 bits －－－－－－－→
8E1
Start
bit
0 1 234567
Even
parity
Stop
bit
←－－－ Data:8 bits －－－→
←－－－－－－－－ Character Frame:11 bits －－－－－－－→
8O1
Start
bit
0 1 234567
Odd
parity
Stop
bit
←－－－ Data:8 bits －－－→
←－－－－－－－－ Character Frame:11 bits －－－－－－－→
