3-5

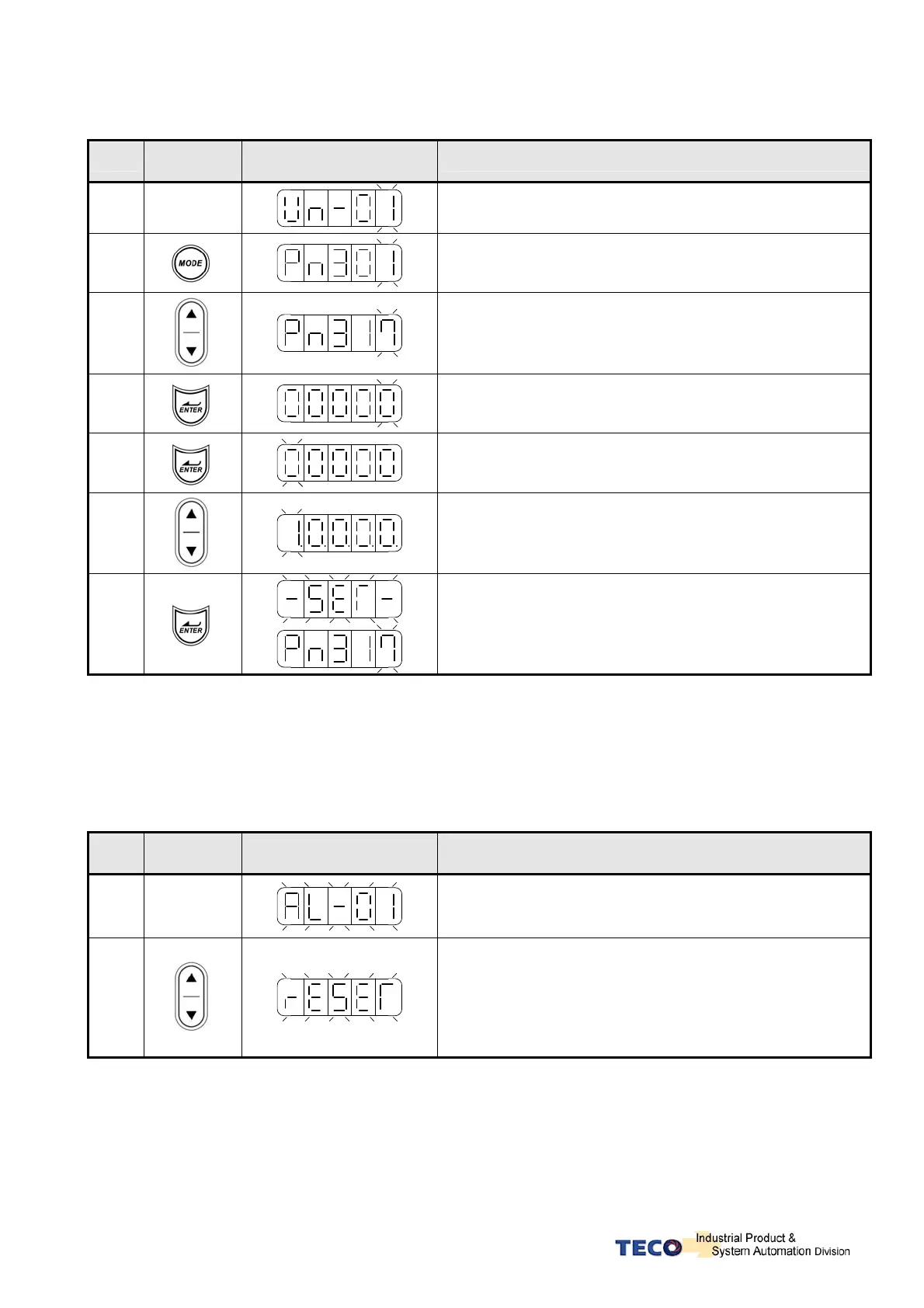

(2) If the negative value has 5 digits follow the steps in the example below:
Ex: Pn317 (internal position preset command 1) set to a negative value -10000 revolutions.
Step
Control
Keys
LED Display after
Operation
Description
1 Power On
On” power on “ Drive Status parameter is displayed.
2
Pressing MODE-Key 8 times, position parameter Pn 301
will be displayed.
3
Use INCREMENT- Key to display Pn317.
4
To view the Pn317 preset press ENTER-Key for 2
seconds.
5
To move to the most significant digit press the
ENTER-Key 4 times.
6
Press DECREMENT-Key once to set the most significant
digit To 1. And press the DECREMENT-Key once again.
ll 5 decimal points will light up to indicate a negative
number.
7
To save the altered preset value, Press the ENTER- Key
for 2 seconds until “SET”is displayed briefly and then
display is returned to parameter Pn 317.
z Alarm Reset from the Keypad.
All alarm displays can be cleared from the keypad without a need for an external Alarm clear
(Reset) signal.
Ex. Under voltage Alarm AL-01.
Step
Control
Key
LED Display after
Opertion
Description
1 Alarm
Under voltage Alarm AL-01 is displayed.
2
To clear Alarm:-
Remove input contact SON (Servo On).
Then press INCREMENT-Key and DECREMENT-Key
at the same time.
The display will show RESET briefly and then returns
back to parameter display.
The LED display contains status code and the digit of LED, the LED shows different
meaning in Torque/Speed control mode and Position control mode, the statement is below.
