25

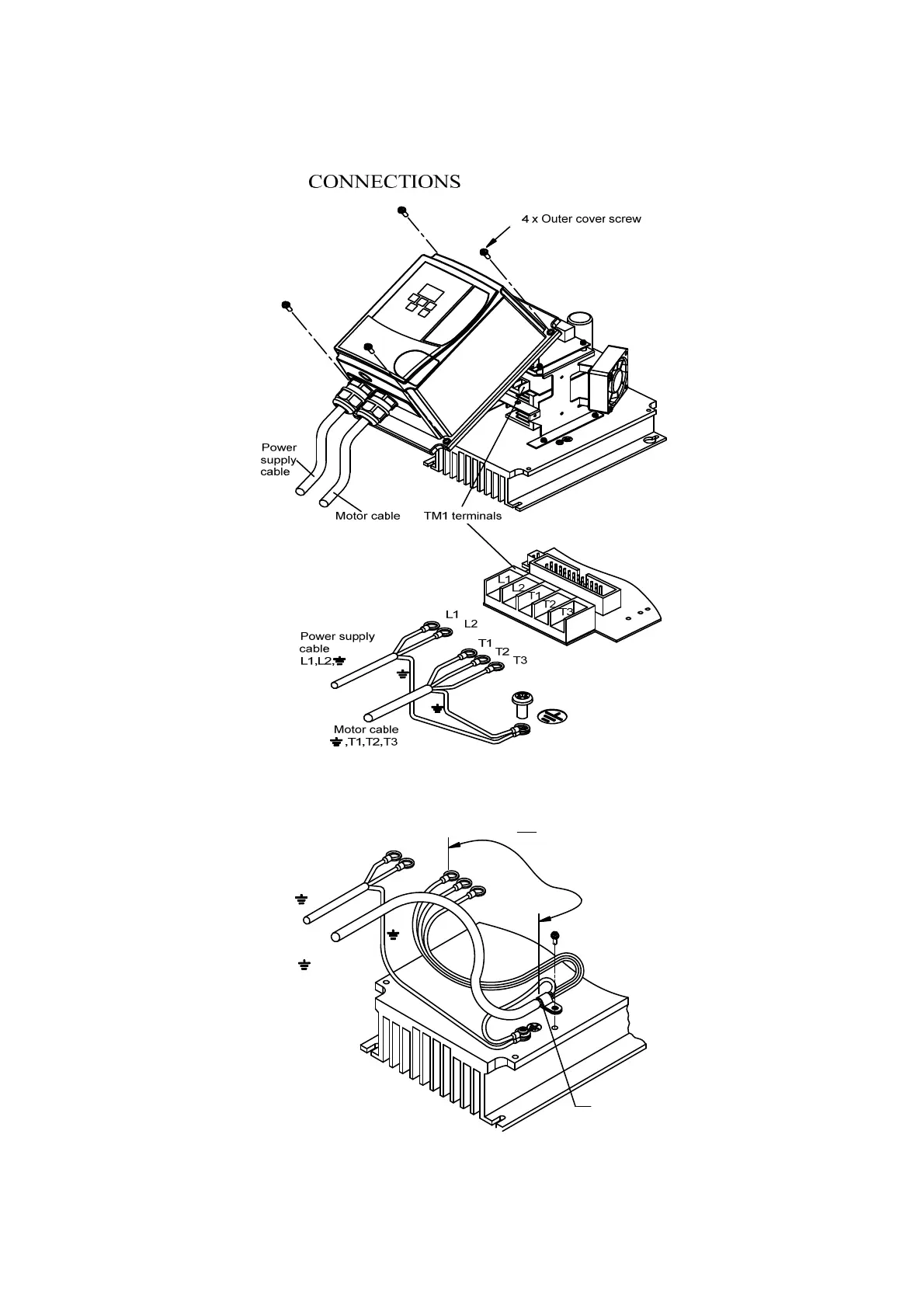

E2-1P2~201- -N4 (WITHOUT SWITCH TYPE ) CONNECTIONS & EMC MOUNTING:
T1
L2
L1
T2
T3
Motor cable
,T1,T2,T3
L1,L2,
Power supply
cable
200mm
Cutting Length
of cable shield
Cable shielding
connected to
ground clamp
EMC MOUNTIING
Length: Max 2M
Note:
TM2 Remote control
cable should be connect
to ground screw
