Set Up
• Installation
• Controlling Board
• Machine connection

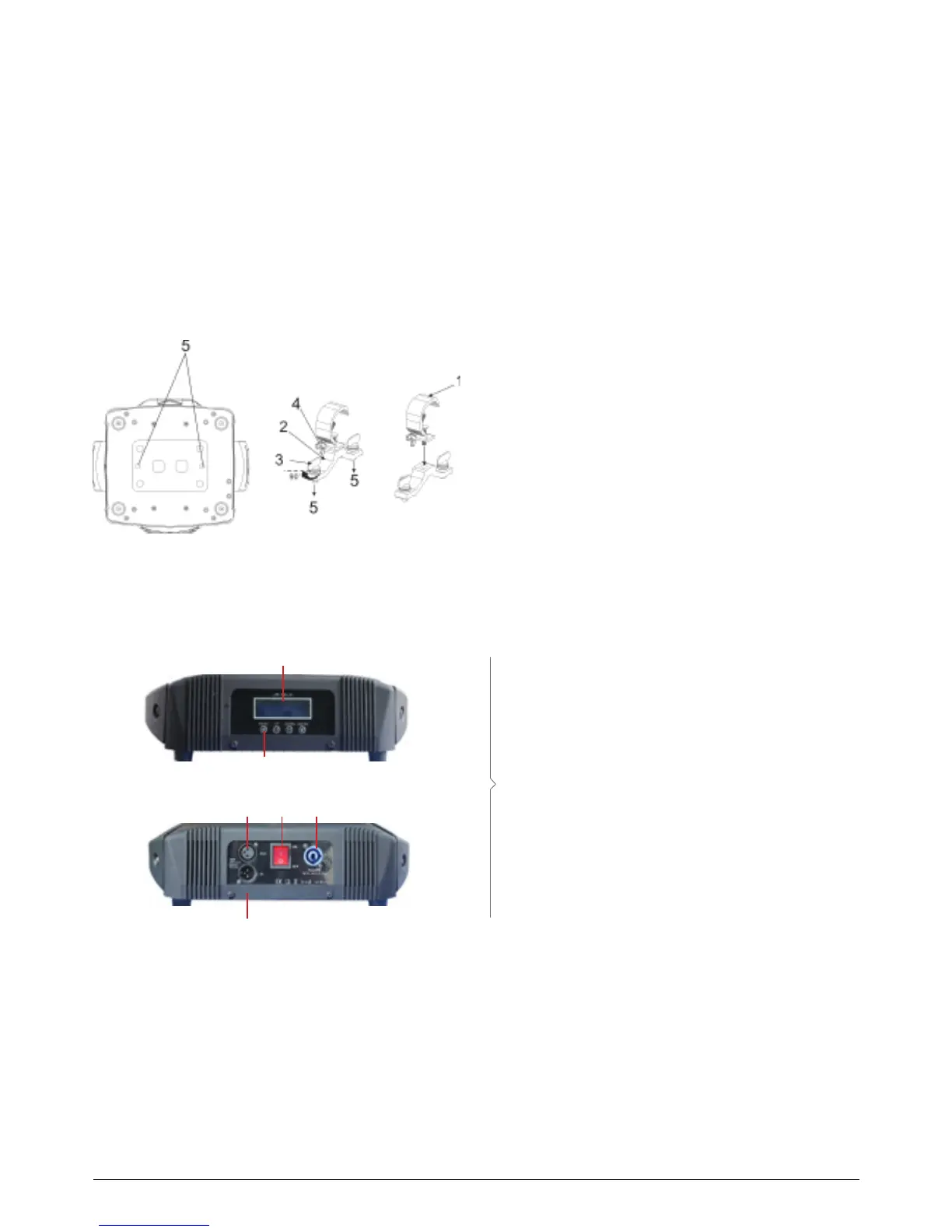

Installation
• This machine should be mounted through the screw
holes of truss. Safety wire is a must to x xture well.
Make sure truss and safety wire have strong load capaci-
ty to bear 3 times weight than xture at least.
• This machine should be installed by qualied technician.
1. LCD Display.
Shows menu
2. Display Control Button.
Buttons: Menu, UP, Down, Enter
3. Power Switch
Power on and power o
4. DMX In
Connect signal cable to let DMX signal input
5. DMX Out
Connect signal cable to let DMX signal output
1
2
6
3 4 5
Controlling Board
p. 4BEAMER 7R
ENGLISH VERSION
