NAVIGATOR SMART RDM
P.
3
2. Introduction
• Keep this device away from rain and moisture
• Please read the user manual carefully before use.
• The device firmware can be updated.
• Please check if a new version is available online.
ENGLISH VERSION

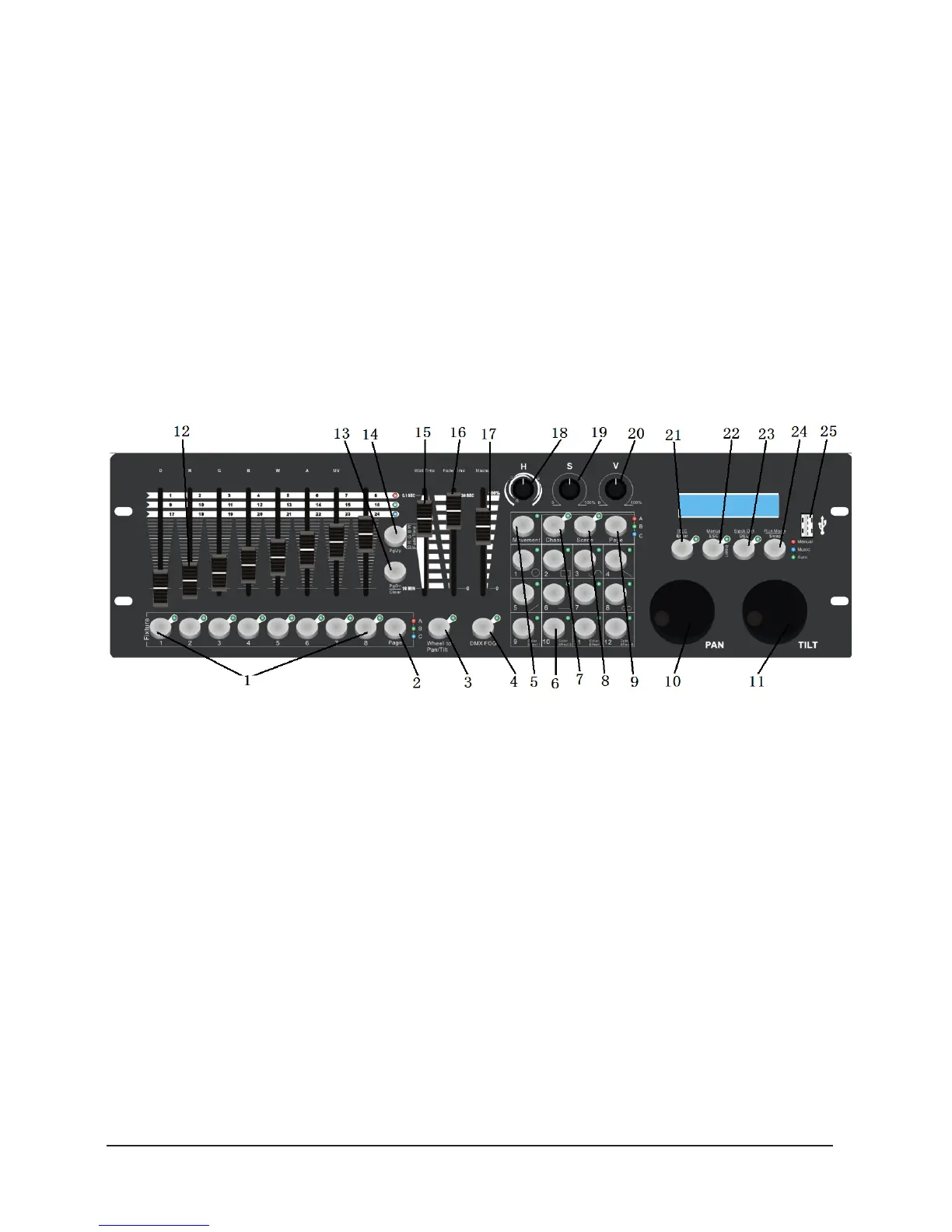

1. Fixture button: Units: 1-8 have 3 pages, total
control of 24 fixtures.
2. Fixture page button: Unit Pages
3. Wheel Button to PAN/TILT: Function select,
if the LED flicker, PAN/TILT wheel control PAN
/TILT channels, if the LED OFF, PAN/TILT is
other function.
4. DMX fog Button: DMX Fog machine control,
press once and the machine is ON, press
twice and is OFF.
5. “Movement” button: When activated, the
1-12 number buttons are for built in move
ments.
6. 1-12 Number button: Function diferently in
dierent modes.
7. Chase button: When activated, the 1-12
number buttons are for chases.
8. Scene button: When activated, the 1-12
number buttons are scenes.
9. Number button PAGE: In Chase and scene
mode, can use the button select diferently
page.
10. PAN Wheel Button: If “wheel to pan/tilt” LED
flicker, the PAN wheel control PAN channel,
if “wheel to pan/tilt” LED OFF, the PAN wheel
control other parameter,for example, in
MOVEMENT mode, PAN wheel can control
PAN channel move range.

