TECSYSTEM T154 Series User Manual

10
T154 SERIES
T154
1MN0044 REV. 0
1)
Power supply
3)
Pt100 sensors (white-red-red)
Optional Ni100 or Ni120
2)
Relays (ALARM-TRIP-FAULT-FAN)
Note: with the power to the unit ON, the FAULT relay switches, contacts 8-9 open (NO) and 7-9 closed (NC), read paragraph
ALARMS AND VENTILATION on page 11 and see the fault contact switching picture below.
FAULT CONTACT SWITCHING
FAULT 8-9 NC: ALARM FAULT OR POWER OFF FAULT 7-9: NC POWER ON
RELAY CONNECTION EXAMPLE
Output relay with 5A-250Vac-res COSФ=1 contacts.
1MN0095 REV. 0

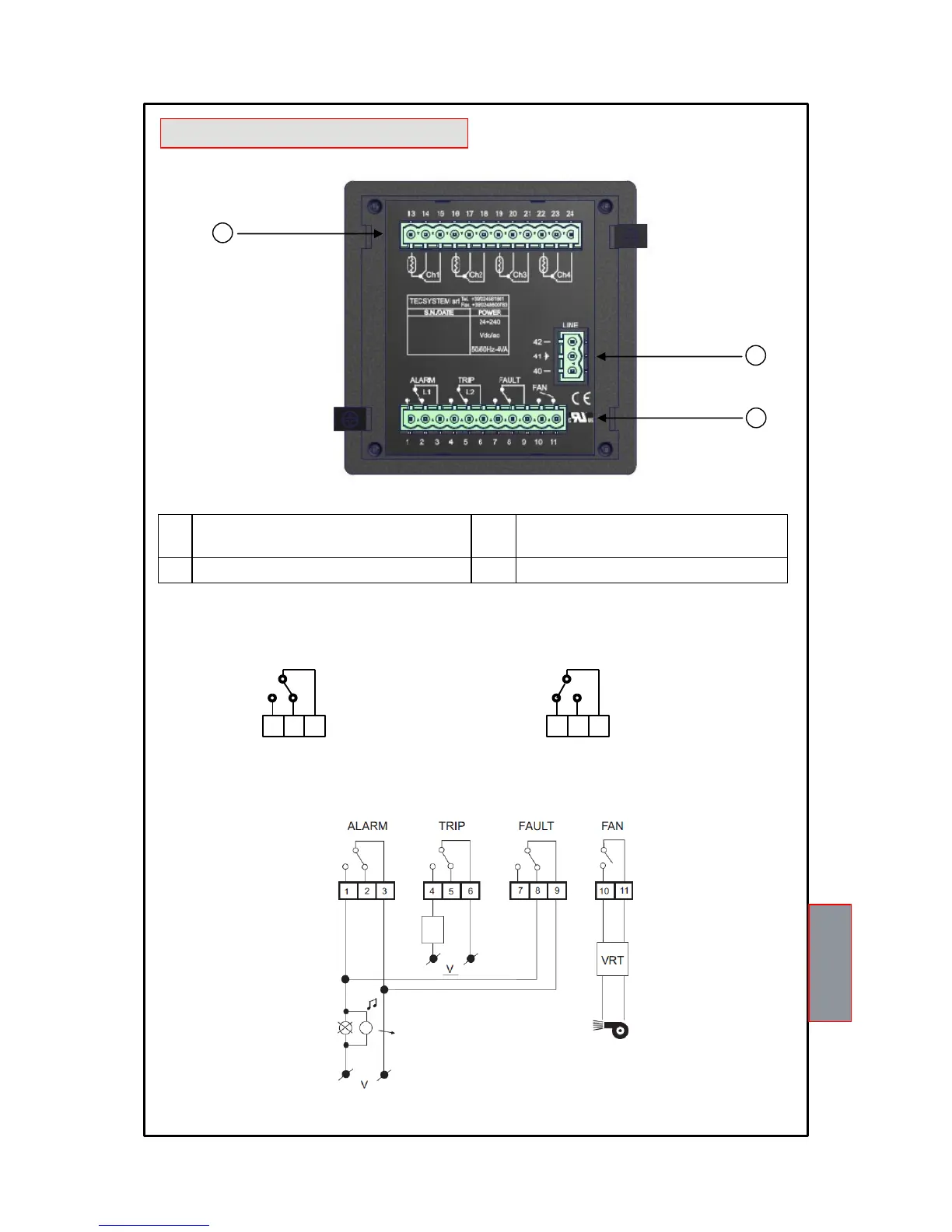

ELECTRICAL CONNECTIONS
LIGHT SIGNAL
SYSTEM STOP
AUDIO SIGNAL
1
2
3
7 8 9
7 8 9
