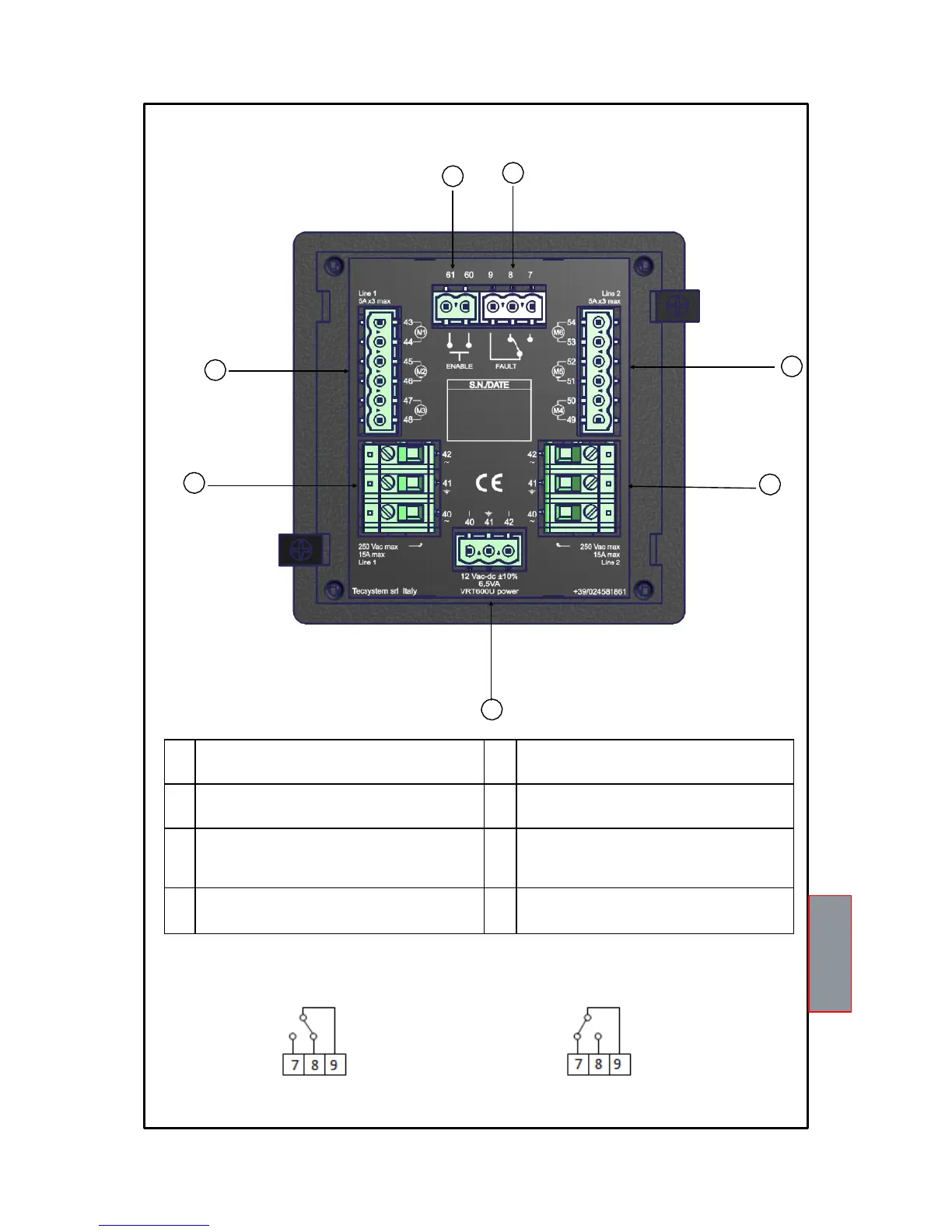

RT600 SERIES
VRT600 U SERIES
6
7
5
1
4
2
1MN0051 REV. 0
3
1) M4-M5-M6 motor line connection
(5A max)
5) M1-M2-M3 motor line connection
(5A max)
2) M4-M5-M6 fan line supply 230Vac ±10%
15 amp.max 50-60Hz.
6) Remote enabling contact ENABLE
3) Control unit supply
12Vac-dc ±10% 6.5VA
7) FAULT relay (fault signal)
4) M1-M2-M3 fan line supply 230Vac ±10%
15 amp.max 50-60Hz.
Note: with the power to the unit ON, the FAULT relay switches, contacts 8-9 open (NO) and 7-9 closed (NC).
FAULT 8-9 NC: ALARM FAULT OR POWER OFF FAULT 7-9: NC POWER ON
