RT600 SERIES
16
17
1
15
14
2
13
12
3
4
11
10
5
9
8 7 6
7 6
1MN0050 REV. 0

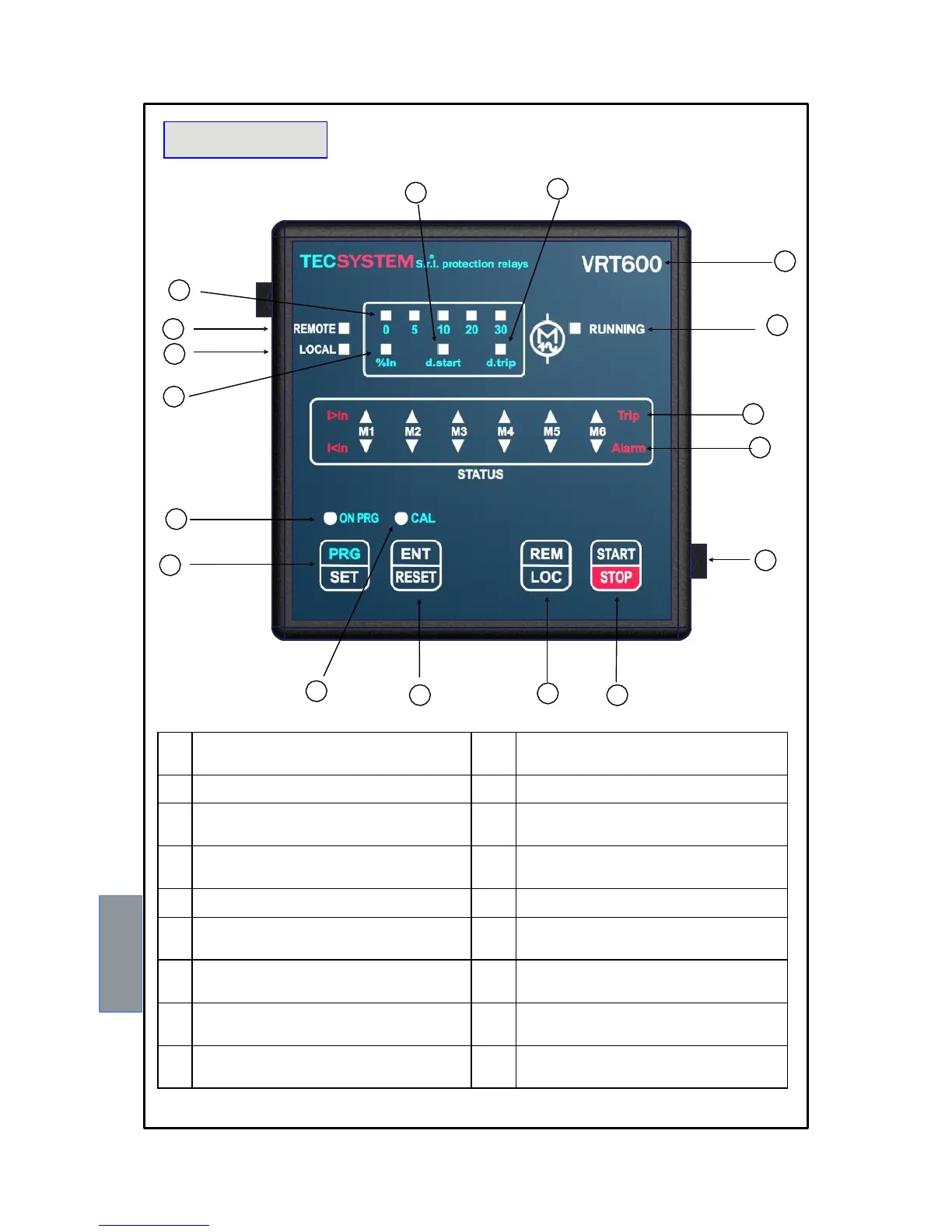

1) Control unit series 10) PRG/SET button: entering programming
and going on to the following step
2) Active (running) ventilation LED (green) 11) Programming phase ON PRG LED (yellow)
3) LED (red) warning motors M1-M2-
M3-M4-M5-M6 are in over-current
12) Current variation LED (yellow)
4) LED (yellow) warning motors M1-M2-
M3-M4-M5-M6 are in under-current
13) Fans' local management LED (yellow)
5) Fixing block 14) Fans' remote control LED (green)
6) Fans' local START/STOP button 15) Programming selection LED (yellow)
(% In, start d., trip d.)
7) Fans' control mode REM/LOC button
(REMOTE or LOCAL)
16) Monitoring delay LED (yellow) at start up
start d.
8) ENT/RESET button: alarm reset and
programming data selection
17) Release delay LED (yellow) trip d.
9) Motors' auto-tuning phase LED (yellow)
FRONT PANEL
