TECSYSTEM VRT600 - Mounting

8
VRT600

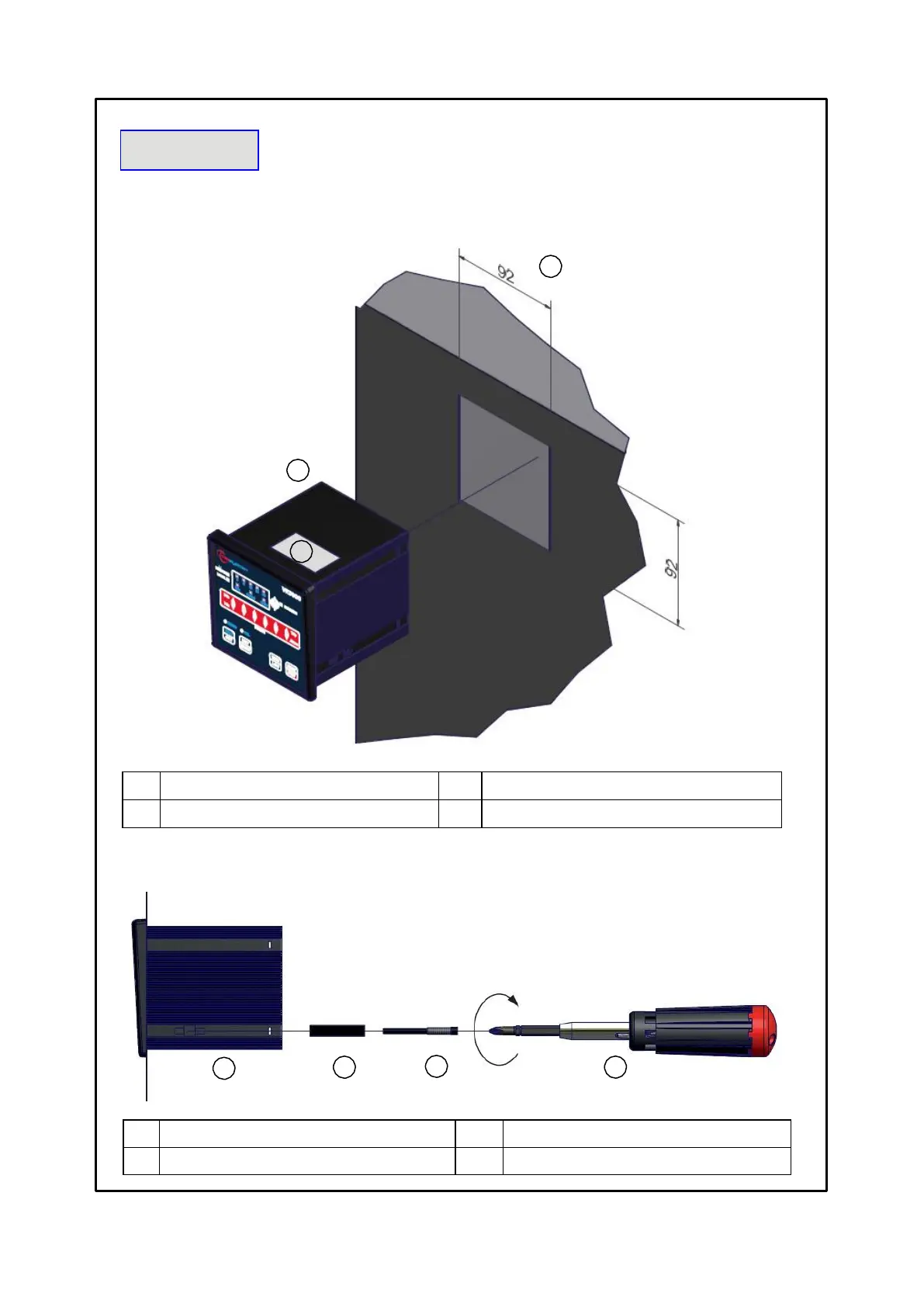

Drill a 92 x 92 mm hole in the panel sheet.
2
1
3
1MN0063 REV. 2
1)
Control unit
2)
Panel hole dimensions (+0.8mm tolerance)
3)
Identification label
Fix the unit securely with the blocks supplied.
1 2
3
4
1MN0008 REV. 0
1)
Control unit
3)
Fixing screw
2)
Fixing block
4)
Crosshead screwdriver #1X100mm
MOUNTING
