TECSYSTEM VRT600 - Electrical Connections

9
VRT600
VRT600 ED18
1)
M4-M5-M6 motor line connection
(5A max) OUTPUT POWERED
5)
M1-M2-M3 motor line connection
(5A max) OUTPUT POWERED
2)
M4-M5-M6 fan line supply 85-250Vac
15 Amp.max 50-60Hz.
6)
Remote enabling contact ENABLE
3)
Control unit supply
85-250 Vac 50-60 Hz 7.5 VA
7)
FAULT relay (fault signal)
4)
M1-M2-M3 fan line supply 85-250Vac
15 Amp.max 50-60Hz.
Note: with the power to the unit ON, the FAULT relay switches, contacts 8-9 open (NO) and 7-9 closed (NC).
FAULT 8-9 NC: ALARM FAULT OR POWER OFF FAULT 7-9: NC POWER NO FAUL

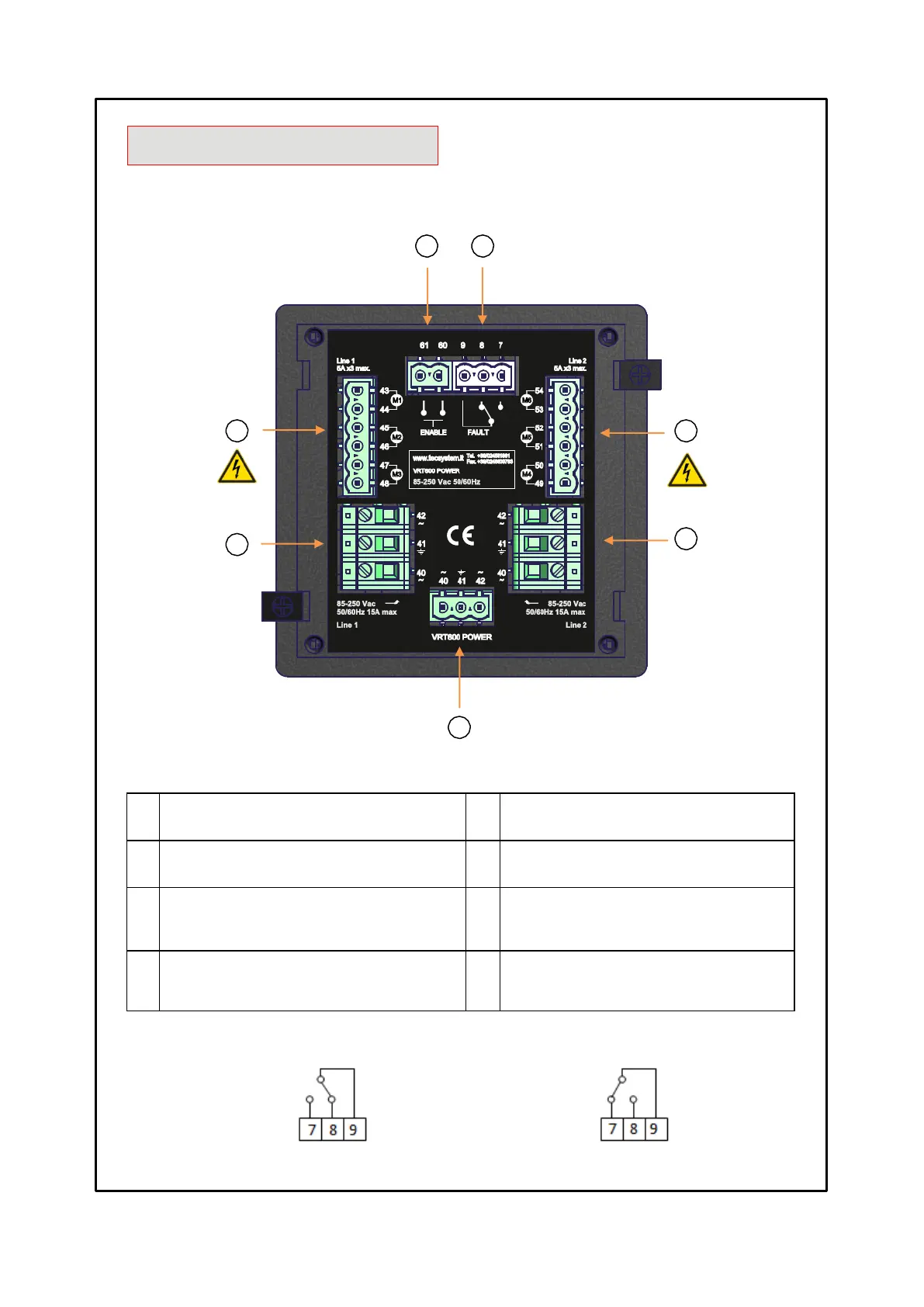

ELECTRICAL CONNECTIONS
6
7
1
2
3
4
5
1MN0050 REV.3
