3. A creepage protector and a main power switch with a 1.5 times capacity of max. current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is grounded well.
5. Connect the wires according the attached electrical connection diagram located on the panel of the
outdoor unit. Fig. 22 & 23
6. All wiring must comply with local and national electrical standards and codes and be installed by qua-
lified and skilled people.
7
. An individual branch circuit and single receptacle used only for this air conditioner must be available.
See the following table for suggested fuse specifications:

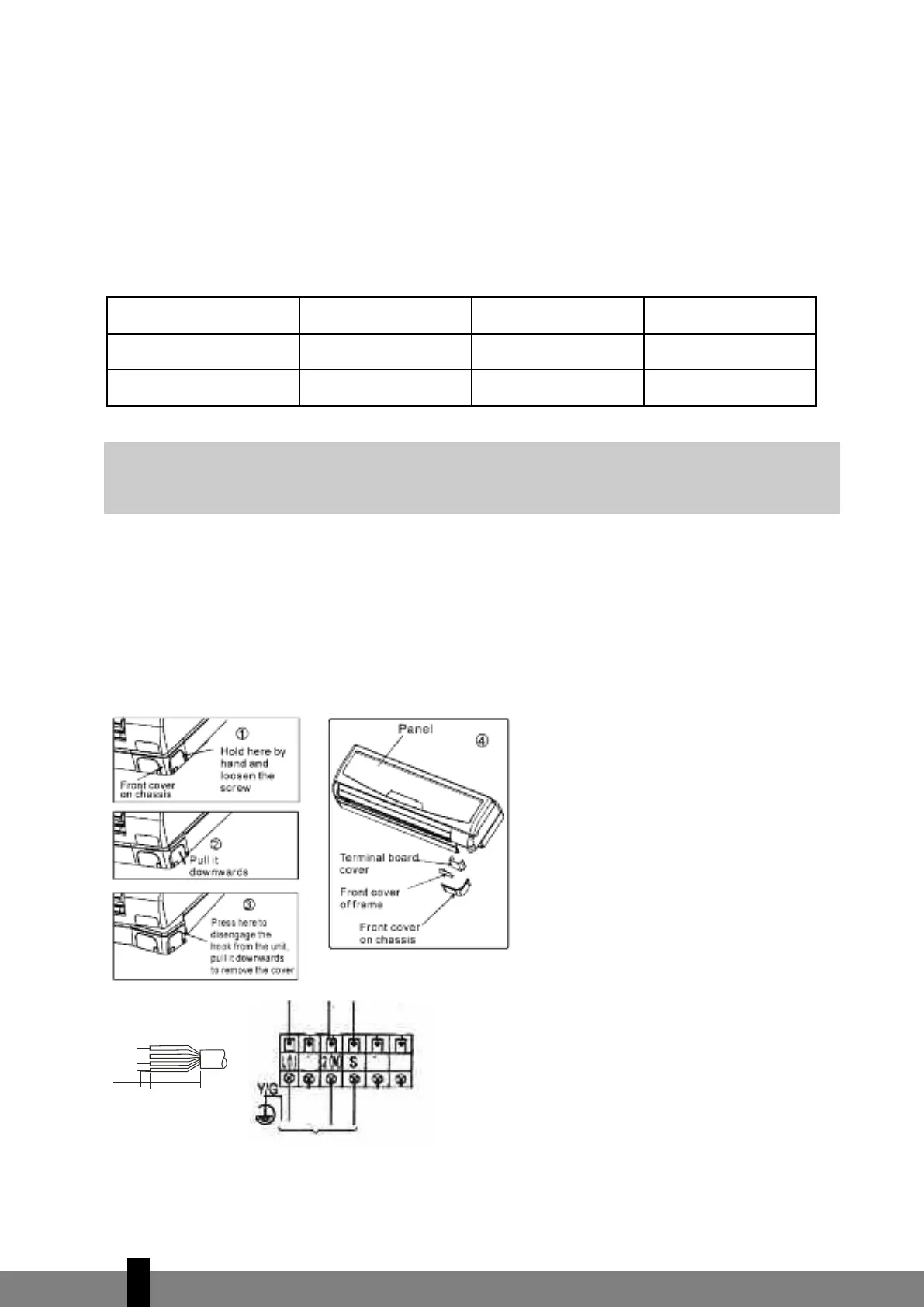

Connect the cable to the indoor unit (for TS models)
1. Indoor/Outdoor connection cable should be H07RN-F type.
2. Remove the panel and screw, then remove the window cover. (fig. 21)
3. Connect cables according to their marks to terminals. (fig. 22)
4. Wrap those cables not connected with terminals with insulation tapes, so that they will not touch any
electrical components.
5. Fit the power cord clamp.
Fig. 21
Fig. 22
G
NOTE!
The supply voltage should be consistent with the rated voltage
of the air conditioner.
Model Power supply
Input Rated Current
(Switch/Fuse)
Power cord size
≤ 3,5 kW
230V~50Hz 16A 2,5 mm
2
> 3,5 kW
230V~50Hz 16A slow 2,5 mm
2
to indoor unit
4
94
