Tecumseh HH100 User Manual
5
of 1
of 1 rating
78 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
55

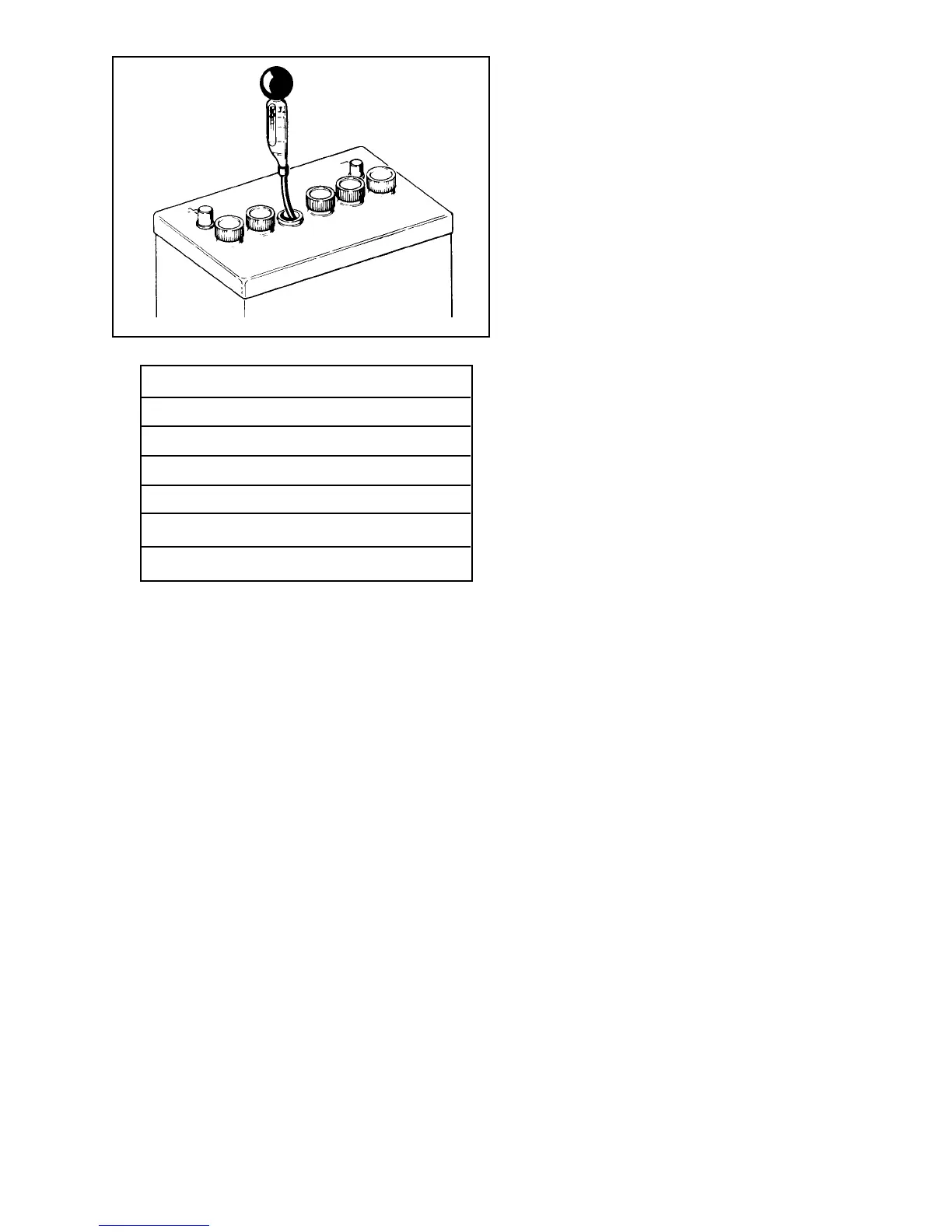

Battery Condition
Specific
Gravity
Discharged
1.1
10 to 1.130
No useful charge
1.140 to 1.160
25%
1.170 to 1.190
50%
1.200 to 1.220
75%
1.230 to 1.250
100%
1.260 to 1.280
56
58
Table of Contents
Default Chapter
2
Table of Contents
2
Chapter 1. General Information
3
Section 1. Engine Identification
3
Section 2. Engine Care
4
Chapter 2. Air Cleaners, Carburetors, Governors and Linkage
6
Section 1. Air Cleaners
6
Section 2. General Carburetor Information
7
Section 3. Tecumseh Carburetors
8
Float Adjusting Procedure
11
Section 4. Walbro Carburetors
12
Hh80 - 120, Vh80 - 100
12
Section 5. Overhead Valve Engine Carburetors
15
Section 6. Governors
18
Section 7. Impulse Fuel Pump
21
Chapter 3. Rewind Starters, Electric Starters, Troubleshooting and Generators
22
Section 1. Rewind Starters
22
Section 2. Electric Starters
24
Section 3. 12 Volt Starter Trouble Shooting Chart
27
Chapter 4. General Valve Information, Cylinder Head and Breather Assembly
29
Section 1. General Valve Information
29
Cylinder Head Torque
33
Section 2. Cylinder Head
33
Section 3. Breather Assemblies
34
Chapter 5. Piston and Rings, Connecting Rods and Crankshafts
35
Section 1. Piston and Rings
35
Section 2. Connecting Rods
37
Section 3. Crankshafts
38
Chapter 6. Camshaft, Bearings and Seals
39
Section 1. Camshaft
39
Section 2. Bearings
40
Section 3. Seals
44
Chapter 7. Dyna-Static Balancing System
45
CHAPTER 8. IGNITION SYSTEMS, CHARGING SYSTEMS BATTERY SERVICE and ELECTRICAL CONTROL PANELS
47
Section 1. Ignition Systems
47
Section 2. Charging Systems
50
Section 3. Battery Service
55
Section 4. Electrical Control Panels
58
Chapter 9. Troubleshooting
63
Chapter 10. 8 H.p. & Larger Engine Specifications and Torques
68
Section 1. Cross Reference List for Table of Specifications
68
Section 2. Torque Specifications
72
P. & Larger Engines (Except Valve-In-Head)
72
Section 3. Valve-In-Head Engine Specifications
73
Section 4. Torque Specifications
75
Valve-In-Head
75
Chapter 11. Educational Materials and Tools
76
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Tecumseh HH100 and is the answer not in the manual?
Ask a question
Tecumseh HH100 Specifications
General
Horsepower
10 HP
Fuel Type
Gasoline
Cooling System
Air-cooled
Ignition System
Magneto
Spark Plug
Champion J8C
Displacement
163 cc (10.0 cu in)
