B. Filling Oil Sump
I. Oil Fill Cap/Dipstick
If your engine has an oil fill cap/dipstick go to step 1. If your
engine does NOT have an oil fill cap/dipstick, see "II. Oil Fill
Cap/Plug" instructions below.
1. Be sure engine is upright and level.
2. Unscrew oil fill cap/dipstick from oil filler tube and wipe
dipstick clean. See Figures 8 and 9.
3. Screw oil fill cap/dipstick back into oil filler tube. Tighten
securely.
4. Unscrew and remove oil fill cap/dipstick from oil filler
tube. Note oil level. If oil reading on dipstick is below
“ADD” mark, slowly add oil to reach “FULL” level. See
Figure 7 on page 4. Afterward, continue reading
instructions below.
5. Screw oil fill cap/dipstick back into oil filler tube. Tighten
securely.
6. Wipe away any spilled oil.
NOTE
To change oil for engines with an oil fill cap/dipstick, see "B.
Changing Oil" instructions on page 17.
II. Oil Fill Cap/Plug
If your engine does NOT have an oil fill cap/dipstick, go to
step 1. If your engine has an oil fill cap/dipstick, see "I. Oil
Fill Cap/Dipstick" instructions above.
1. Be sure engine is upright and level.
2. Clean area around oil fill cap/plug. See Figure 9.
3. Unscrew oil fill cap/plug.
4. Add oil to overflow point, making sure to avoid spilling.
5. Screw oil fill cap/plug back into oil fill hole. Tighten
securely.
6. Wipe away any spilled oil.
NOTE
To change oil for engines with an oil fill cap/plug, see "B.
Changing Oil" instructions on page 17.

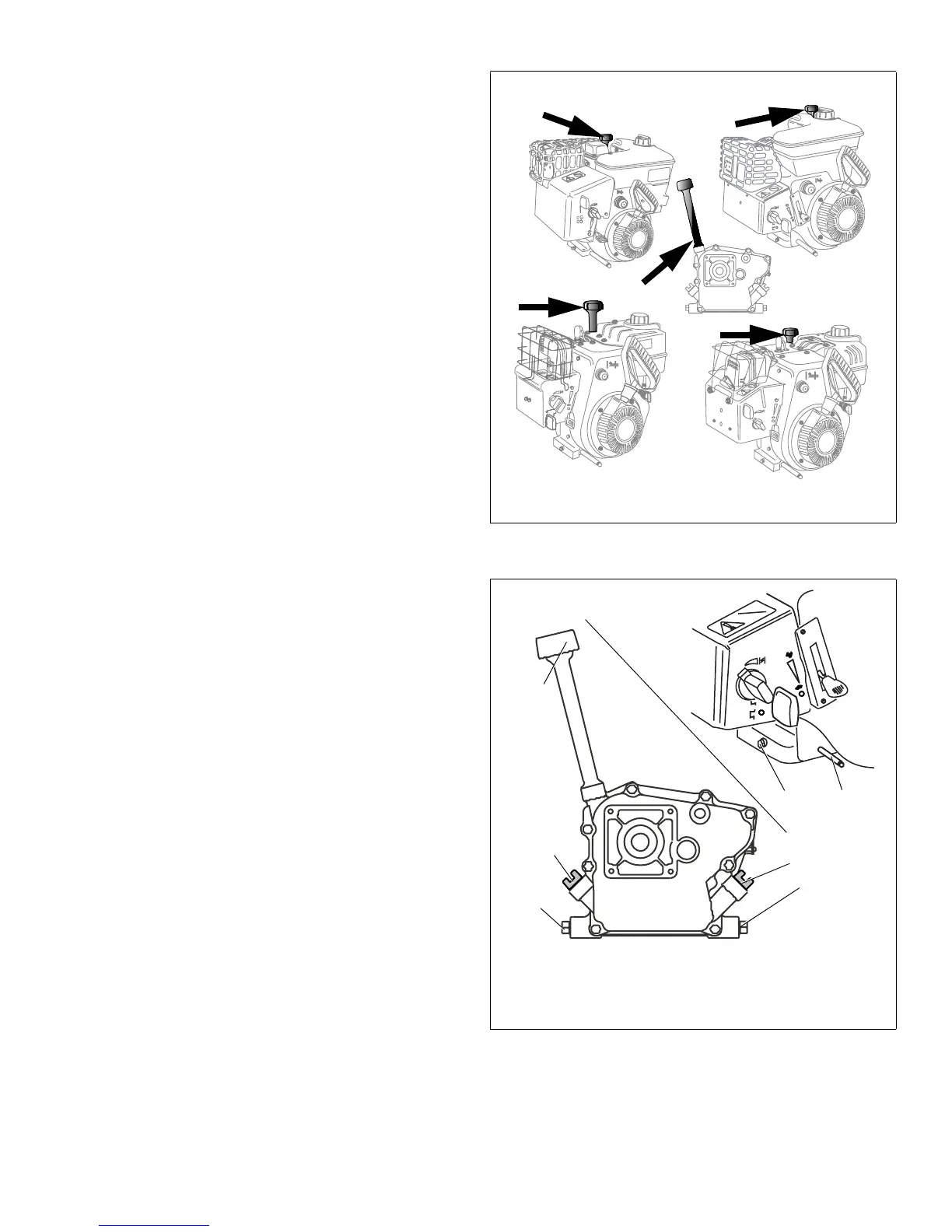

Figure 8. Oil Fill Cap/Dipstick Locations
Figure 9. Oil Fill/Drain Locations
OH318SA/OH358SA OH195SA/OH195SP
LH318SA/LH358SALH195SA/LH195SP
S
T
O
P
STOP
1. Oil Fill Cap/Dipstick
2. Oil Fill Cap/Plug
3. Oil Drain Plug
1
3
2
3
Back View
2
33
Angled Front View
