Page 6 4-Cycle • Snow King Engine 181-1275-14
C. Check the Following Items
NOTE
Be sure equipment is in neutral before attempting to start
(see equipment manufacturer’s instructions).
1. Be sure ignition switch on engine or equipment is in
“ON”, “RUN” or “START” position. See Figures 10, 11
and 12.
Or
Ignition key, if present (see equipment manufacturer’s
instructions), is inserted into ignition key slot in
carburetor cover. DO NOT turn ignition key. Be sure
ignition key snaps into place. See Figures 10 and 11.
2. Be sure fuel valve, if present (see equipment manufac-
turer’s instructions) is open. See Figure 13.
3. Check engine and equipment before each operation for
loose nuts, bolts and attachments; keep these items
tightened.
D. Check the Item Descriptions
The item descriptions listed below are for all 4-Cycle
Horizontal Crankshaft Snow King Engine Models. See
Figure 14 on page 7.
1. Control Lever
2. Oil Drain Plug
3. Choke
4. Ignition Key or Ignition Switch
5. Carburetor Cover
6. Muffler With Muffler Guard
7. Oil Fill Cap/Dipstick
8. Spark Plug Cap
9. Fuel Fill Cap
10. Starter Cord Handle
11. Fuel Valve
12. Primer Bulb
13. Recoil Starter/Flywheel Guard

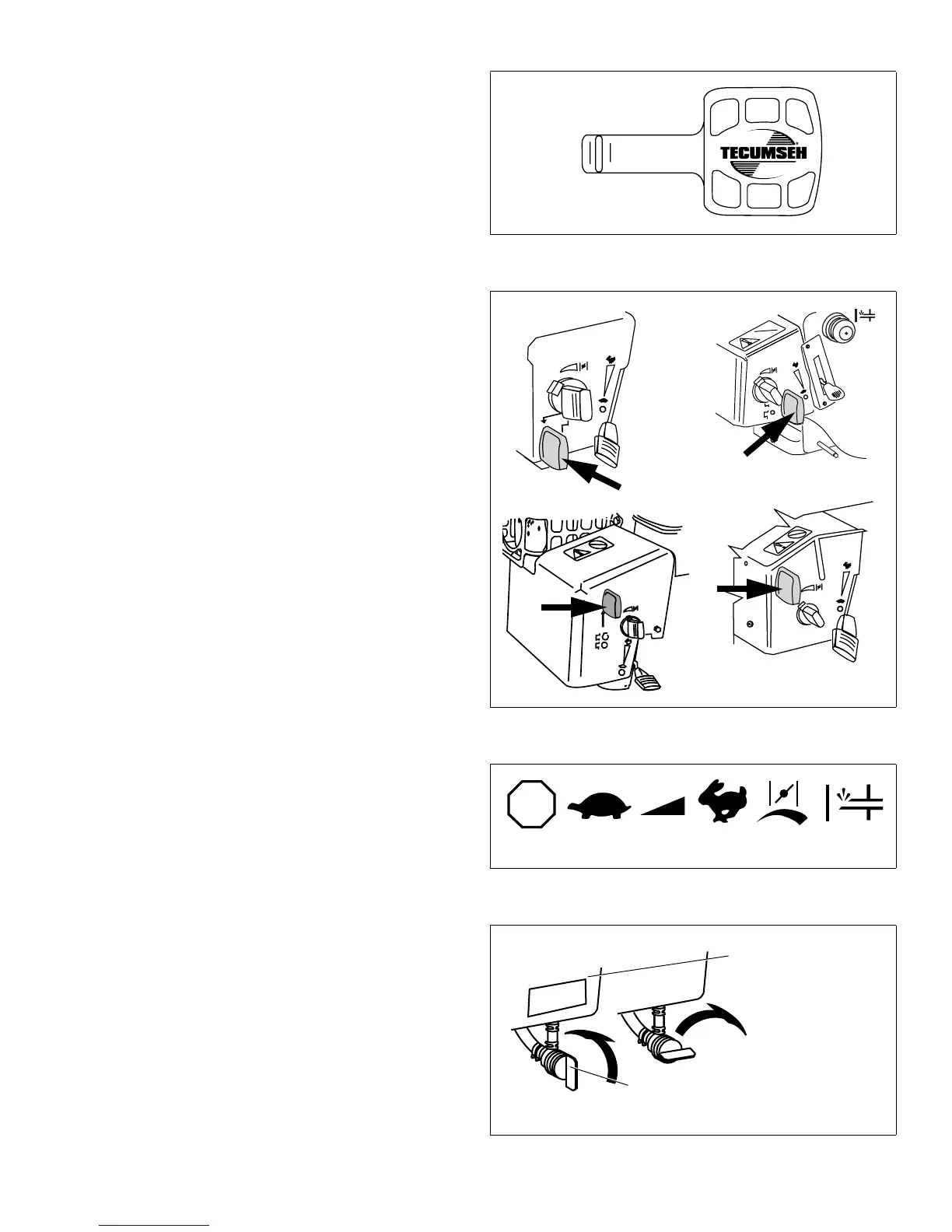

Figure 10. Ignition Key
Figure 11. Possible Ignition Key Locations
Figure 12. Typical Engine Symbols
Figure 13. Fuel Valve Positions
S
T
O
P
STOP
STOP
STOP
STOP SLOW RUN FAST CHOKE PRIMER
Fuel Tank
Fuel Valve “OPEN”
Position Shown
Turn Valve
Clockwise To
“OFF” Position
To Next Page
