9. ADJUSTMENT
9.1 ADJUT THE COIN MECH
Descriptions:
1): Please take out the plastic coin from sample coin chute
and replace it with token.
2): Remove the screws on back of coin entrance. Adjust the
fixing chip on back of coin entrance according to the
token’s diameter, which prevent blocking the coin mech
as inserting the large coin in by mistake.
3): Turn the COIN Switch to “NO” (COIN Signal wire and GND
should be disconnected at usual time). Turning switch can

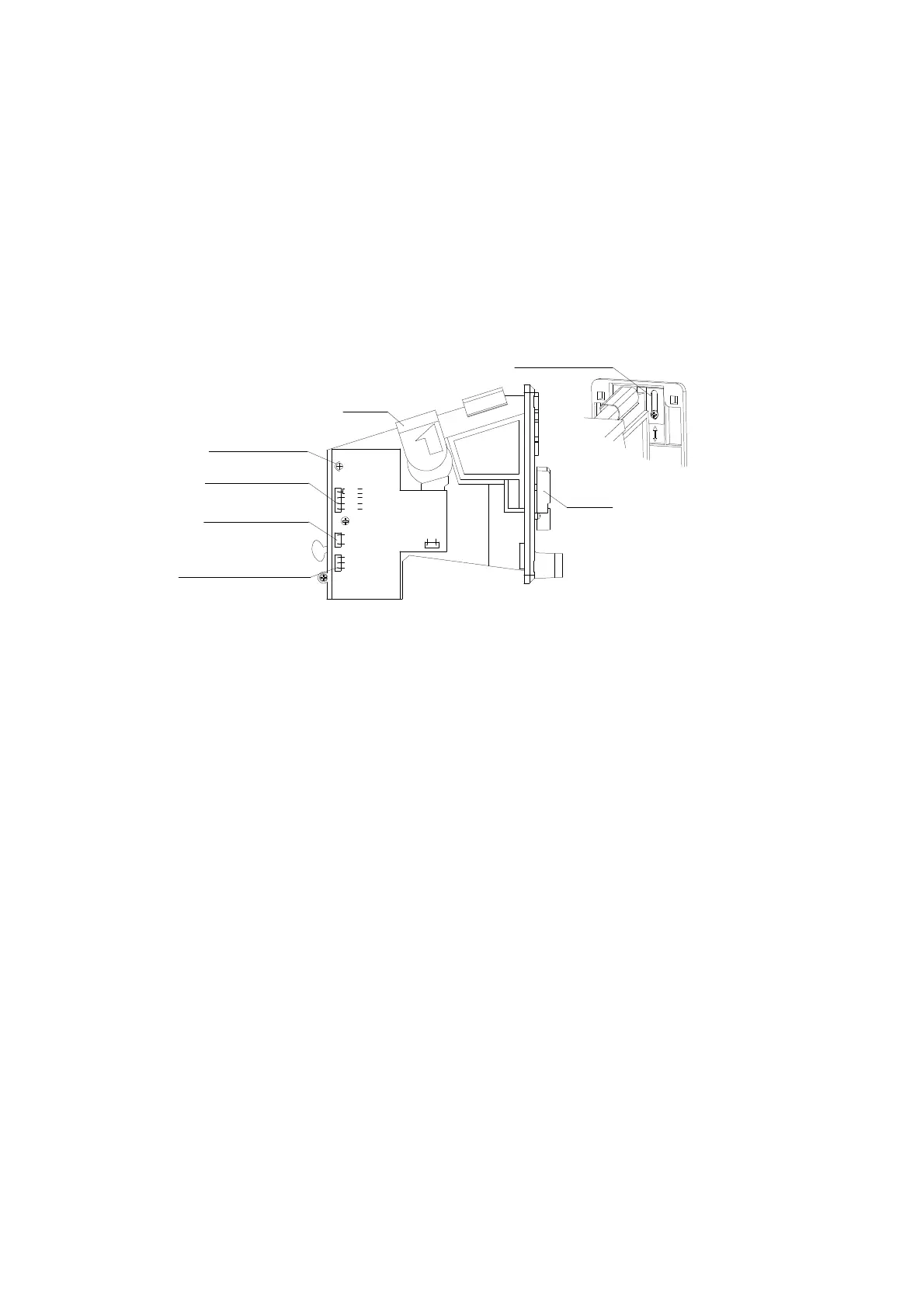

代币入口调节片
退币杆
COIN信号波长调整开关
COIN信号常态开关
电源/信号输入端
代币公差微调电阻
样币槽
DC+12V
STRICT
SLACK
Sensitivity
+
-
C
O
I
N
R
e
m
o
v
e
R
E
P
L
A
C
E
B
a
c
k
w
a
r
d
SW3
100ms SLOW
25ms FAST
NOM
正常
MGN
精准
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY
