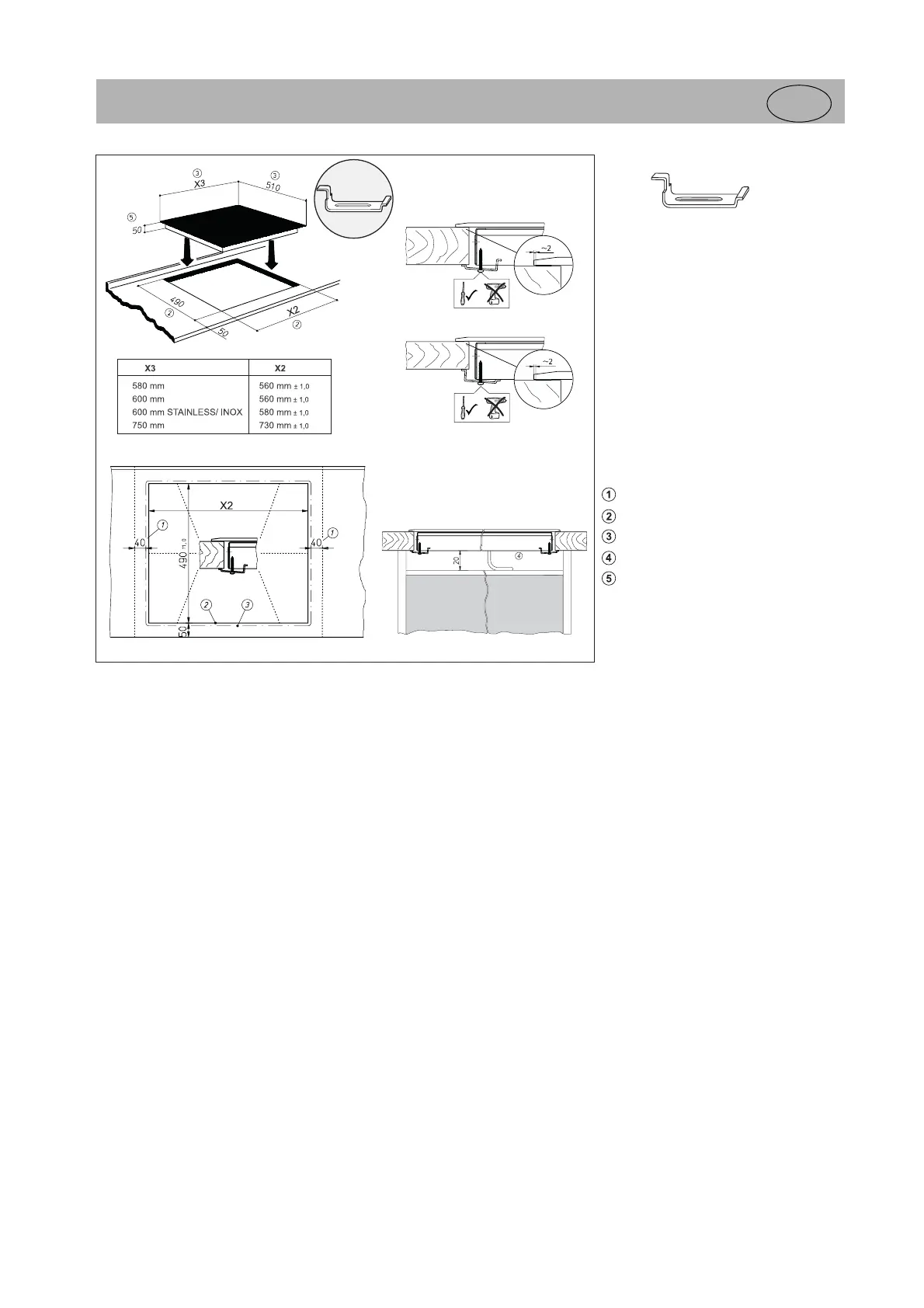

Instructions for assembly
GB
32
Bracket
• Insert the hob and align it.
• From the bottom, insert the brackets with
screws in the holes provided for fastening
the brackets, align the brackets and screw
them tight.
• Tighten the screws with a hand screw
driver only; do not use a battery-operated
screw driver.
• In the case of thin worktops make sure
that the brackets are correctly positioned.
Important!
There is a risk of breakage if the hob is
canted or subjected to stress during
installation!
Minimum distance to adjacent walls
Cut-out dimension
Outer dimensions of the hob
Cable routing in rear wall
Installation height
