Vendor Name: tekmar Control Systems Ltd.
Vendor ID: 585
Product Name: Boiler Control 284
Product Model Number: 284
Application Software Version: J1220x Firmware Revision: TBD BACnet Protocol Revision: 10
Product Description:
The 284 is a control that operates up to four boilers to provide heating for multiple loads. The control uses Proportional
Integral Derivative (PID) logic to accurately maintain target temperature and offers advanced features including
communication capability with a Building Automation System (BAS).
Supported BIBBs (Annex K) Name
DS-RP-B
Data Sharing-ReadProperty-B
DS-RPM-B
Data Sharing-ReadPropertyMultiple-B
DS-WP-B
Data Sharing-WriteProperty-B
DM-DDB-B
Device Management-Dynamic Device Binding-B
DM-DOB-B
Device Management-Dynamic Object Binding-B
DM-DCC-B
Device Management-Device Communication Control-B
*
DeviceCommunicationControl password is tekmar.
Data Link Layer Supported
BACnet
®
IP (Annex J)
Yes
Character Set Supported
ANSI X3.4
Yes
Device Address Binding Supported
Static Device Address Binding
No
BACnet Standardized Device Profile (Annex L)
BACnet
®
Application Specific Controller (B-ASC)
Standard Object Types Supported Creatable Deletable
Analog Input
No No
Analog Value
No No
Binary Input
No No
Binary Output
No No
Binary Value
No No
Segmentation Capability Supported Window Size
Able to transmit segmented messages
No
Able to receive segmented messages
No
Network Security Options
Non-secure Device
BACnet
®
Protocol Implementation Conformance Statement (PICS)

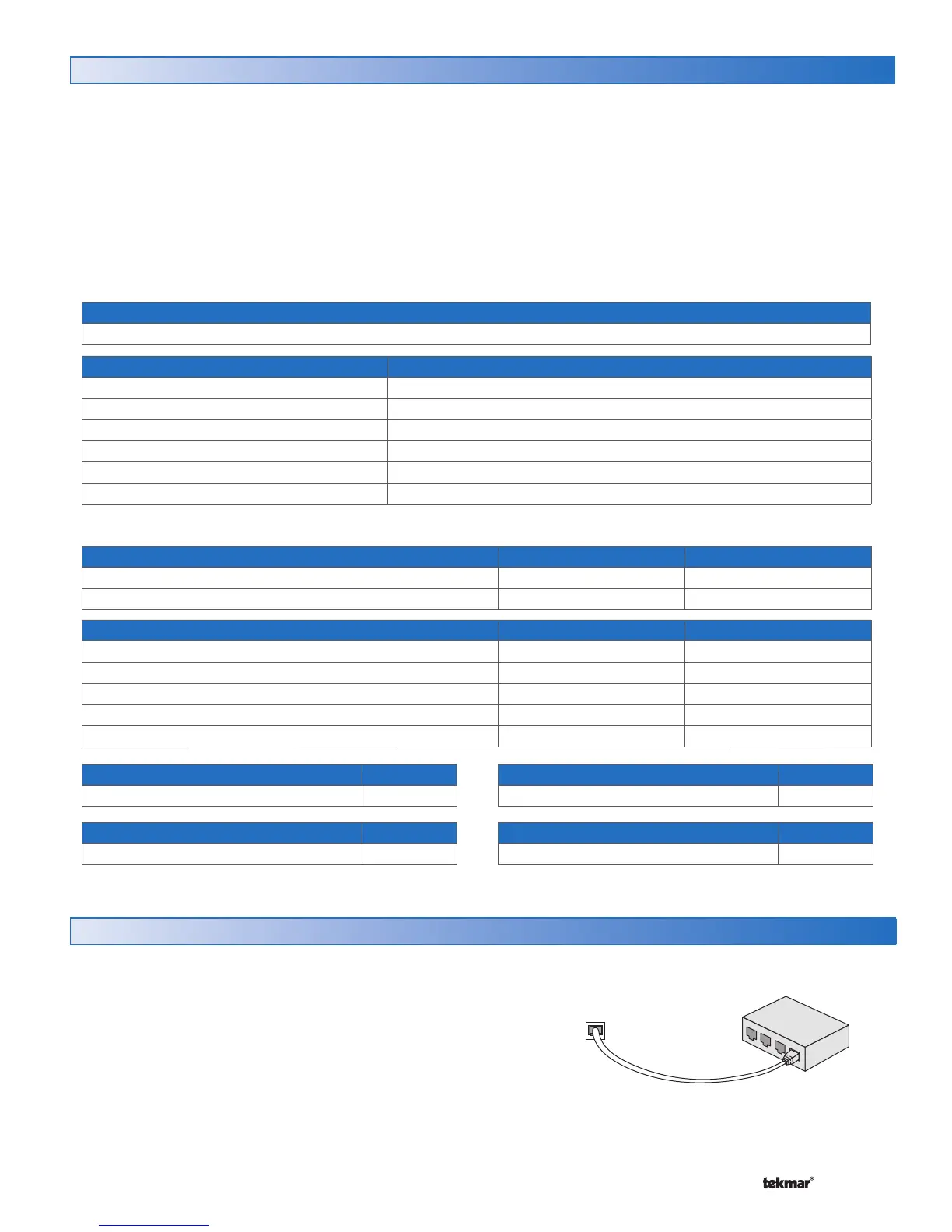

BACnet
®
Connection
RJ45
Boiler
Control 284
BACnet
®
Network
Switch
Use a top or back knock-out to bring a CAT-5E or CAT-6 wire into
the wiring chamber. Connect the 284 to the BACnet
®
network switch
using the RJ45 port on the top edge of the control board.
Cable length must not exceed 150 ft. (45.7 m) for CAT-5E or
300 ft. (91.4 m) for CAT-6.
If the cable was manually made, check continuity across each
of the wires.
•
•
