Tekmar 284 - Bacnet Settings in the 284 BAS Menu

© 2014 284_B - 08/14
4 of 12
A Watts Water Technologies Company

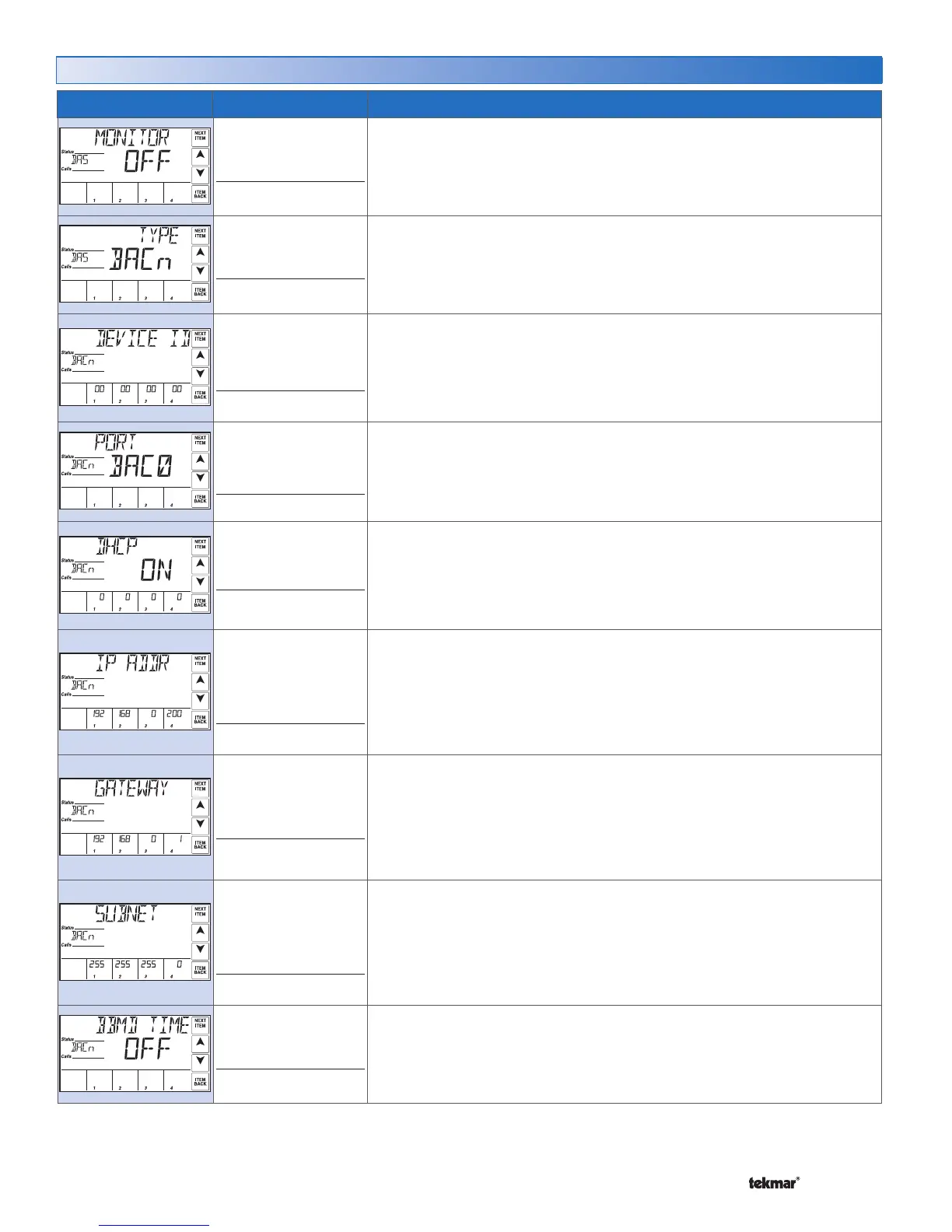

Item Field Range Description
OFF or ON
Default: OFF
Access: ADV
BAS MONITOR
Selects whether or not BAS monitoring is available.
Note: This item is only available when APP MODE is set to either RSET, SETP,
DDHW or EMS.
BACn, MODB
Default: BACn
Access: ADV
BAS TYPE
Selects the communication protocol used with the BAS network. Modbus
®
communicates over RS485 and BACnet
®
is over IP.
0 to 4, 0 to 99, 0 to
99, 0 to 99
Default: 0, 0, 0, 0
Access: ADV
BACNET DEVICE ID
Sets the unique address within the BACnet
®
network. The address is set using four
number sets displayed in the source output fields. Touch the ‘Next Item’ button to
view and adjust each number set.
Note: This item is only available when BAS TYPE is set to BACn.
0x1 to 0xFFFF
Default: 0xBAC0
(47808)
Access: ADV
BACNET PORT
Sets the User Datagram Port (UDP) port on the BACnet
®
network.
Note: This item is only available when BAS TYPE is set to BACn.
OFF or ON
Default: ON
Access: ADV
BACNET DHCP
Selects whether or not the Dynamic Host Configuration Protocol (DHCP) is used
to automatically assign the IP address on the BACnet
®
network. If ON is selected,
the address is displayed in the source output fields.
Note: This item is only available when BAS TYPE is set to BACn.
0 to 255, 0 to 255, 0
to 255, 1 to 254
Default:
192,168,0,200
Access: ADV
BACNET IP ADDRESS
Sets the IP address on the BACnet
®
network. The address is set using four
number sets displayed in the source output fields. Touch the ‘Next Item’ button to
view and adjust each number set.
Note: This item is only available when BAS TYPE is set to BACn and BACn DHCP
is set to OFF.
0 to 255, 0 to 255, 0
to 255, 1 to 254
Default: 192,168,0,1
Access: ADV
BACNET GATEWAY
Sets the Gateway address on the BACnet
®
network. The address is set using four
number sets displayed in the source output fields. Touch the ‘Next Item’ button to
view and adjust each number set.
Note: This item is only available when BAS TYPE is set to BACn and BACn DHCP
is set to OFF.
0 to 255, 0 to 255, 0
to 255, 0 to 255
Default:
255,255,255,0
Access: ADV
BACNET SUBNET
Sets the subnet address on the BACnet
®
network. The address is set using four
number sets displayed in the source output fields. Touch the ‘Next Item’ button to
view and adjust each number set.
Note: This item is only available when BAS TYPE is set to BACn and BACn DHCP
is set to OFF.
OFF, 30 to 65535
Default: OFF
Access: ADV
BACNET BBMD TIME
Sets the Bacnet
®
Broadcast Management Device (BBMD) time-to-live used
for foreign device registration.
Note: This item is only available when BAS TYPE is set to BACn.
BACnet
®
Settings in the 284 BAS Menu
