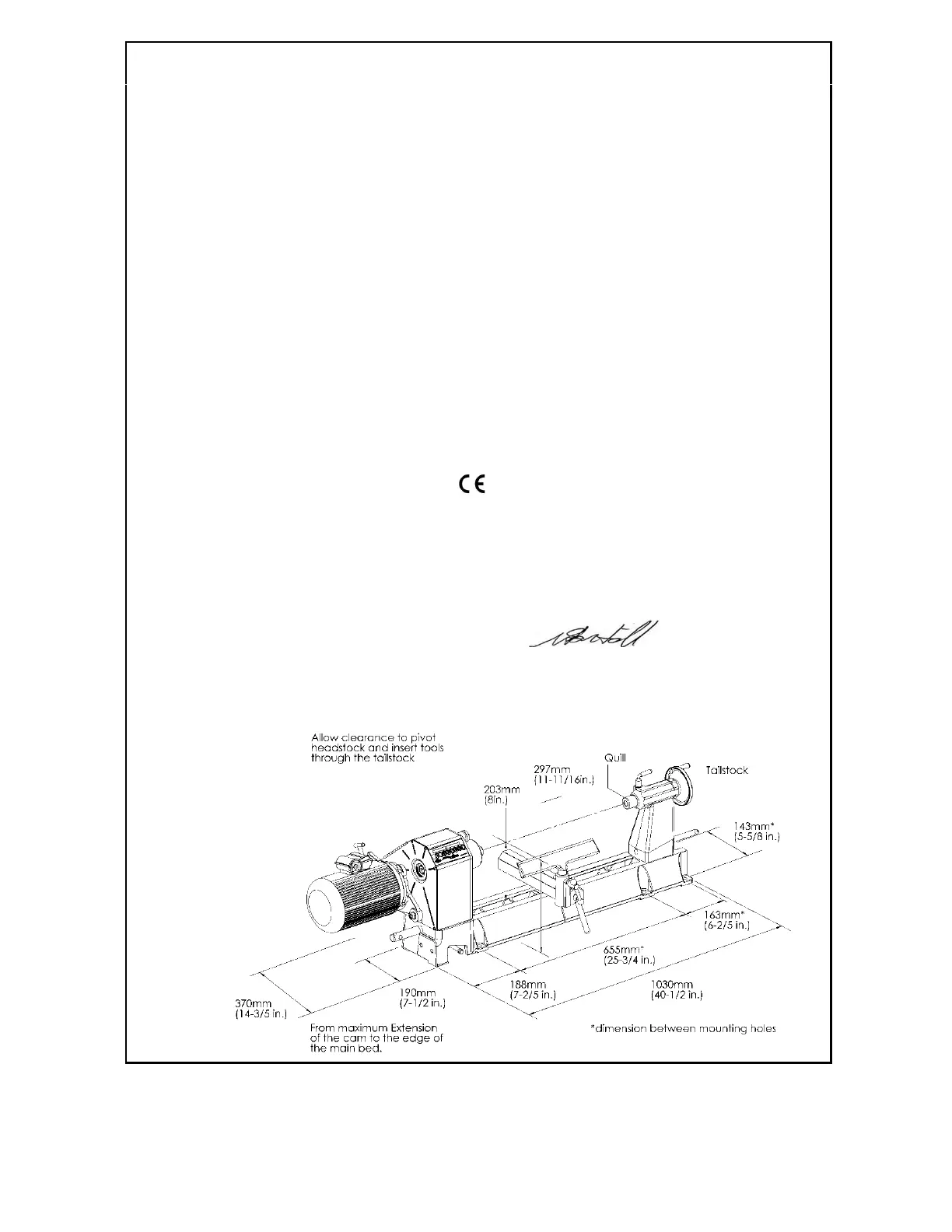

Size: see drawing below.
Weight: 72 kg (158.7 lb) (without motor)
Swing Over Bed: 400 mm (16 in.)
Distance Between Centers: 600 mm (24 in.);
expandable in 516 mm (20.3 in.) units with
add-on Bed sections.
Swing Outboard: 740 mm (29 in.) with headstock
at 90° with outrigger toolrest.
Headstock:
Spindle Thread:
1-1/4 x 8 TPI RH
(1) or
M33 x 3.5 RH
(2)
Headstock Bore: No. 2 Morse Taper (#2 MT)
Headstock Swivel: 0 to 360 degrees, with
detents at 0, 22.5, 45, and 90 degrees.
Outboard End Internal Thread: M20 x 1.5 LH
Spindle Index: 24 divisions (every 15 degrees)
Tailstock:
Tailstock Bore: No. 2 Morse Taper (#2 MT)
Quill Travel: 85 mm (3-1/4 in.)
Hole Through Tailstock: 15 mm (9/16 in.)
Toolrest:
Length: 300 mm (12 in.)
Shaft Diameter: 25.4 mm (1 in.)
Motor Options (Recommended):
AC Motor, 1.5 HP, 1425 rpm, 50 Hz
(1)
AC Motor, 1.5 HP, 115v 1720 rpm 60Hz
2)
DC Motor, 1.5 HP, 0-1750 rpm, 50-60 Hz 3
Speeds (rpm): 8-step motor pulley
178, 300, 570, 850, 1200, 1800, 2400, 3000
(1)
214, 360, 690, 1030, 1450, 2180, 2900, 3630
(2)
Standard Equipment:
300 mm (12 in.) Toolrest, Poly Vee Drive Belt, Motor Pulley,
Motor Mounting Kit, 150 mm (6 in.) Faceplate (Not all
countries, see notes below), Spur Center, and Live Center
Optional Accessories:
Nova Chuck Systems
SuperNova2 Chuck System
Faceplates: 80 mm (3 in.), 150 mm (6 in.)
Vacuum Faceplate
Toolrest: 100 mm (4 in.)
Bowl Toolrest
Outrigger Toolrest Unit
Handwheel
Vacuum Coupler
Revolving Center System
Notes:
(1) United States, New Zealand, Australia, Canada and
UK.
(2) Europe (except UK)
Note: Standard equipment varies from country to country. In other
markets, the motor and the faceplate are optional equipment. Check
with your reseller if you are unsure.
For Europe, Australasia, UK and South Africa
Directives this equipment complies with:
Low voltage directive (LVD) 73/23/EEC + 93/68/EEC+2006/95/EC
Machinery directive (MD) 89/392/EEC + 91/368 EEC +
93/68/EEC+2006/42/EC
Harmonized Standards applied in order to verify compliance with
Directives: EN 61029-1:2009 (Low Voltage Directive and Machinery
Directive.
Signed………………………………………..Dated 10/12/2010
Nathan Stantiall
Development Manager
