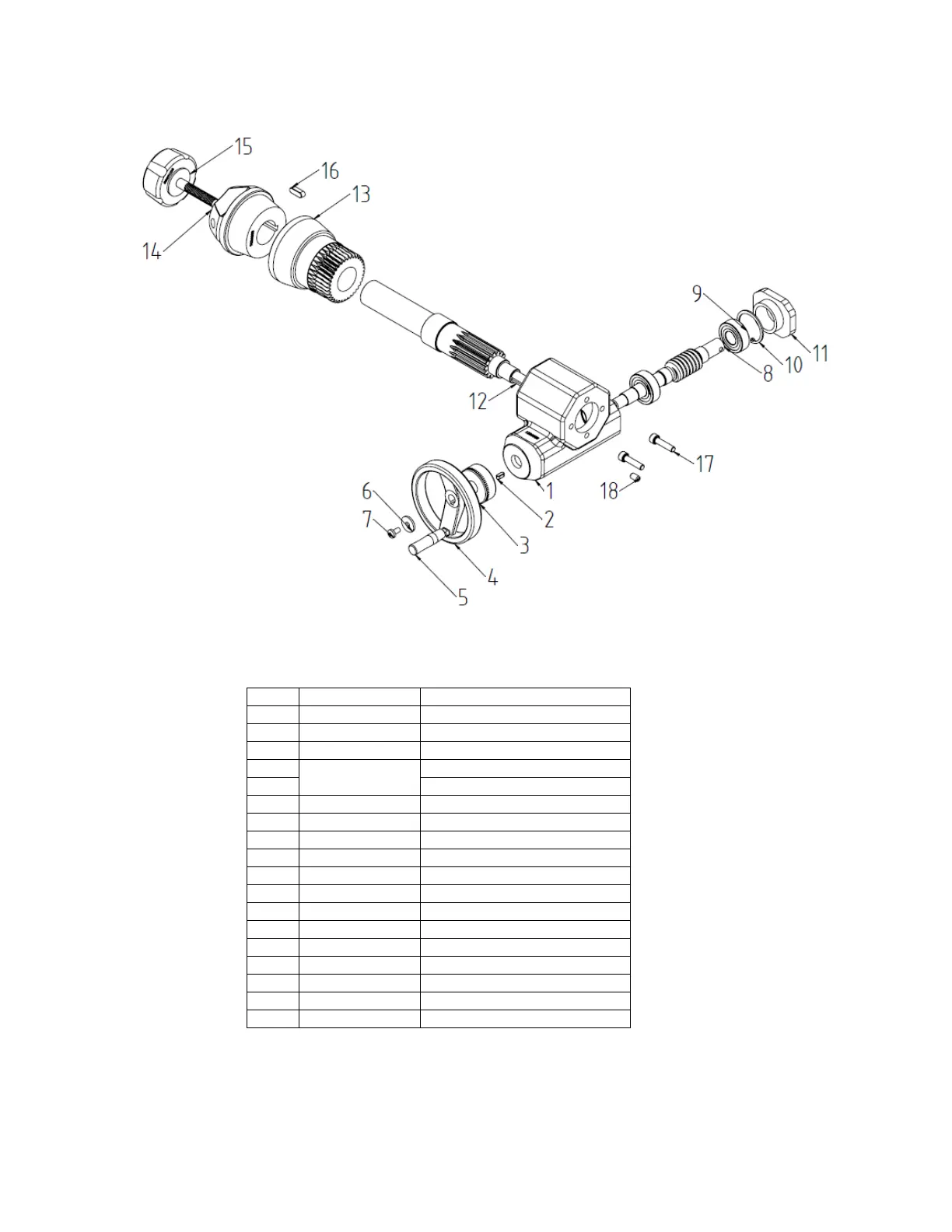

83820 NOVA Down feed Attachment Breakdown
83820 NOVA Down feed Attachment Parts List
REF#
PART#
DESCRIPTION
1
8389021
M1-838-021 Down feed Case
2
4mm key
3
8389027
Depth adjustment scale
4
8379015
Down feed hand wheel
5
handle
6
FW06
Flat washer 6mm
7
PBCS05012
Phillips cap screws M5 x12
8
8389024
Worm shaft
9
6202ZZ
6202 ZZ Bearings
10
IC35
Internal C-clips 35mm
11
8389022
Rubber Case End Cap
12
8389020
Down feed shaft
13
8389023
Worm Gear
14
8389026
Level handle base
15
8389025
Feed adjust knob M10-1.5x55
16
8mm key
17
C06025
M6 Cap Screw
18
P06020
6mm pin
