Teknion Leverage - Top Trim Installation Process

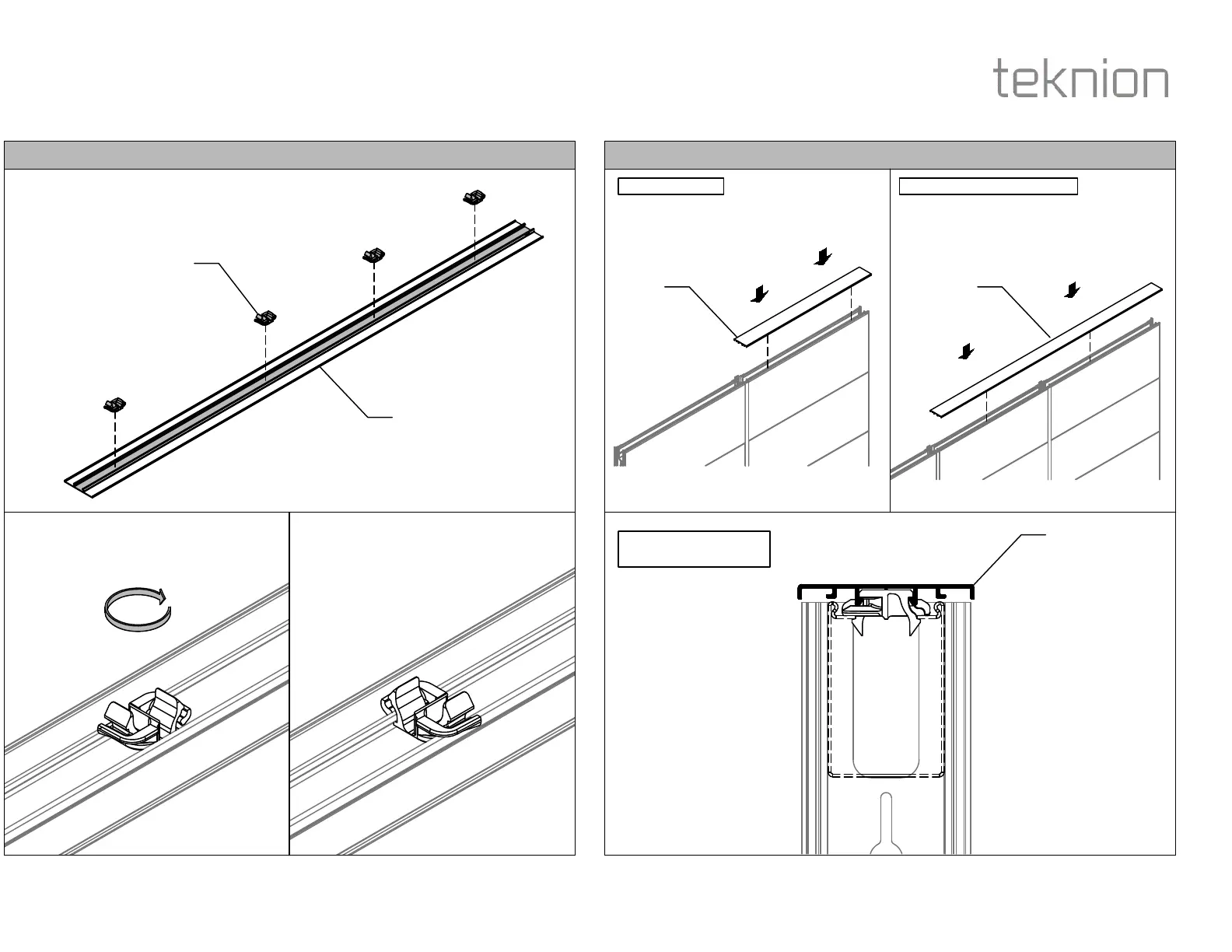

STEP 2: Place Top Trim with Clips attached onto the top of the Panel(s).STEP 1: Attach Top Trim Clips (Qty varies) on Top Trim by turning them clockwise.
Section:
Description:
Page No:
Date:
ATTACH TOP TRIM CLIPS PLACE TOP TRIM ONTO PANEL(S)
TLE_211
2 of 8
May 2020
END TRIMS & TOP TRIMS
PANEL CONNECTIONS & TRIMS
leverage Installation Guides
Top Trim Shown Continuous Top Trim Shown
NOTE: Make sure Clips
are fully engaged.
Side View Shown.
A2
A1
A1 A1
A1
