CONNECT TWO TOP TRIMS TOGETHER
May 2020
3 of 8
TLE_211
END TRIMS & TOP TRIMS
PANEL CONNECTIONS & TRIMS
leverage Installation Guides

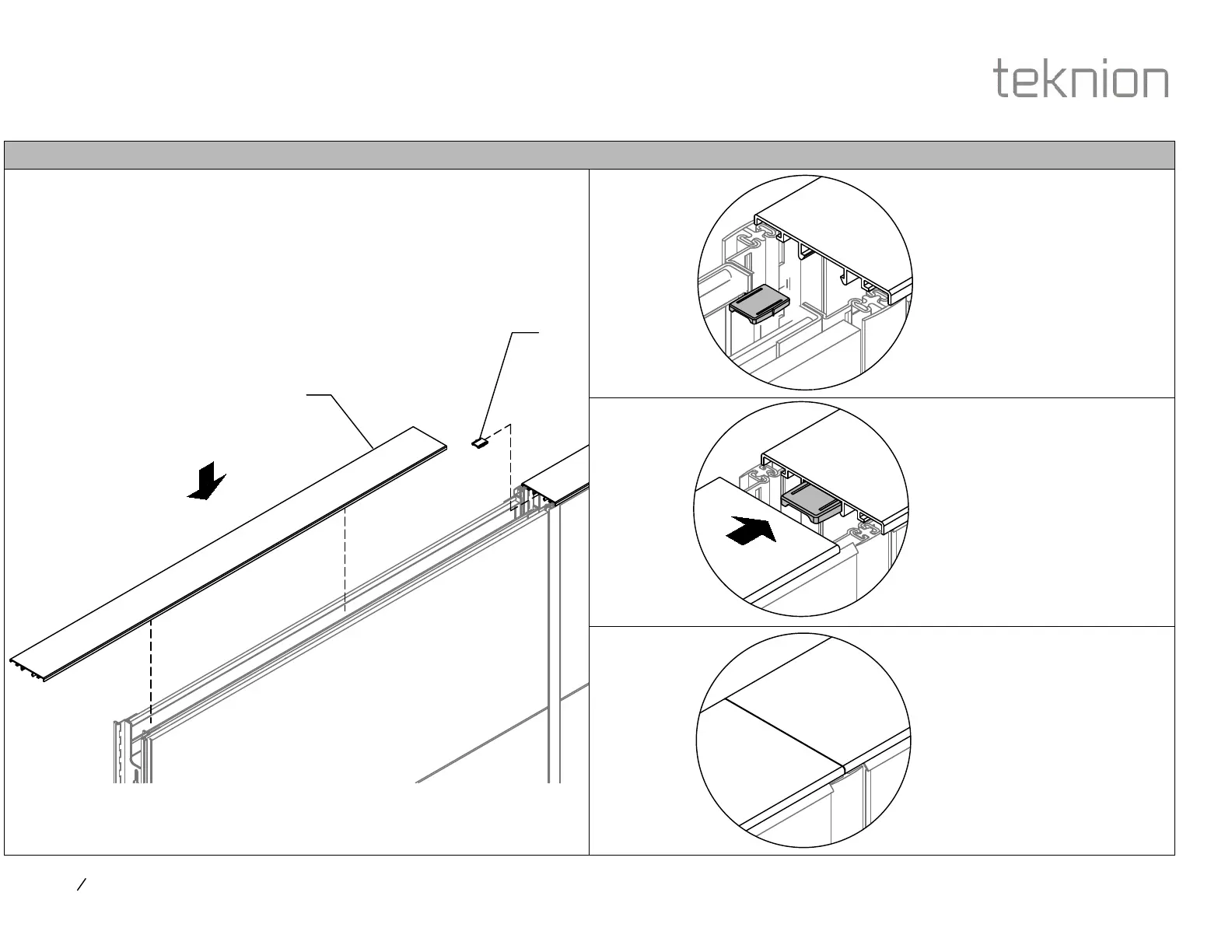

STEP 3: Slidr the Connection Clip into the Trim slot, attach the Top Trim to connect to, and slide it against the other one using the Connection Clip as alignment.
NOTE: A
1
32
" gap should be maintained between each Top Trim.
1
2
3
A1
A3
