INTERMEDIATE END TRIM INSTALLATION (STANDARD ELEMENT WIDTH)
May 2020
7 of 8
TLE_211
END TRIMS & TOP TRIMS
PANEL CONNECTIONS & TRIMS
leverage Installation Guides

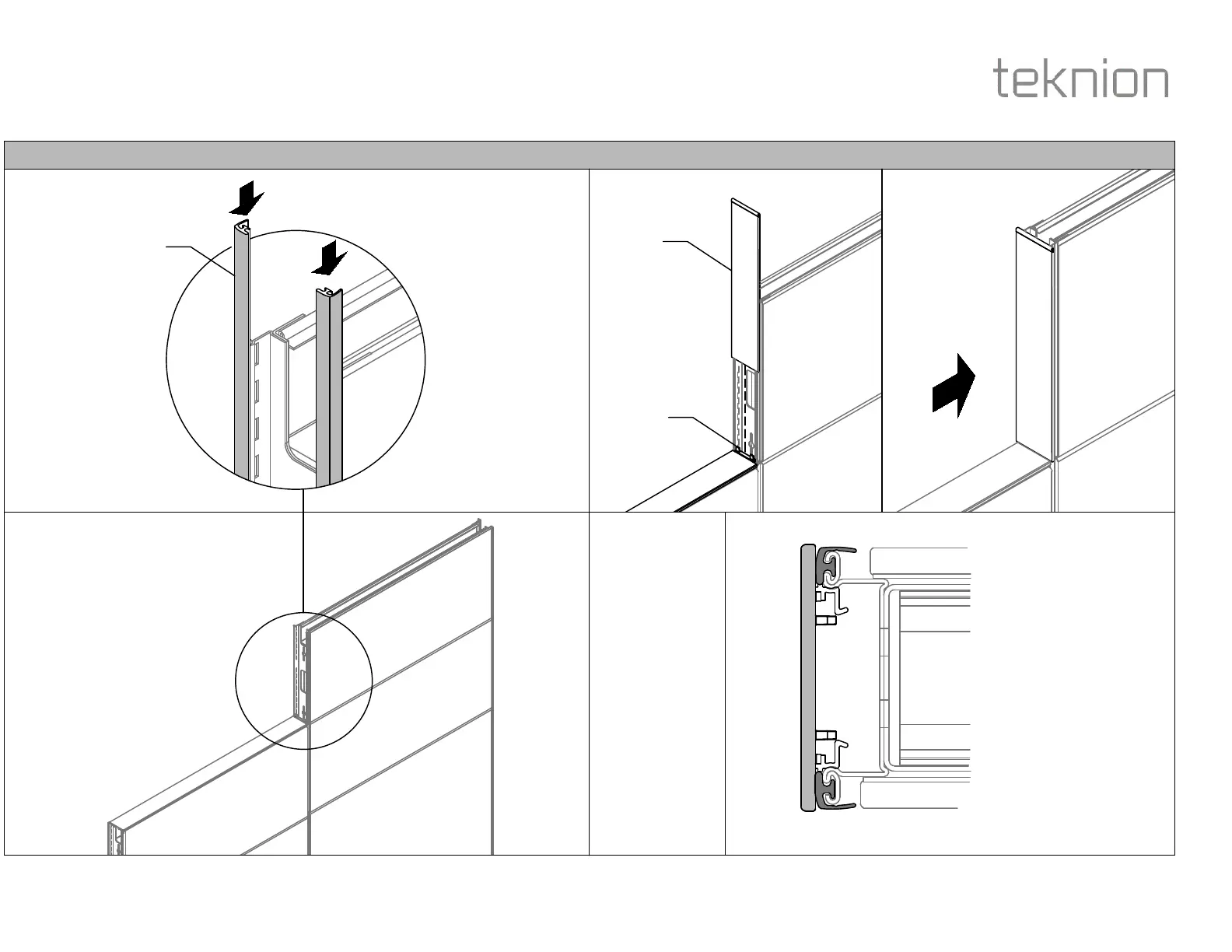

STEP 7: Slide Gaskets into Panel Slots, place the Intermediate End Trim onto the Connecting Pin and snap into the Panel.
Top View Shown.
C2
C1
C3
