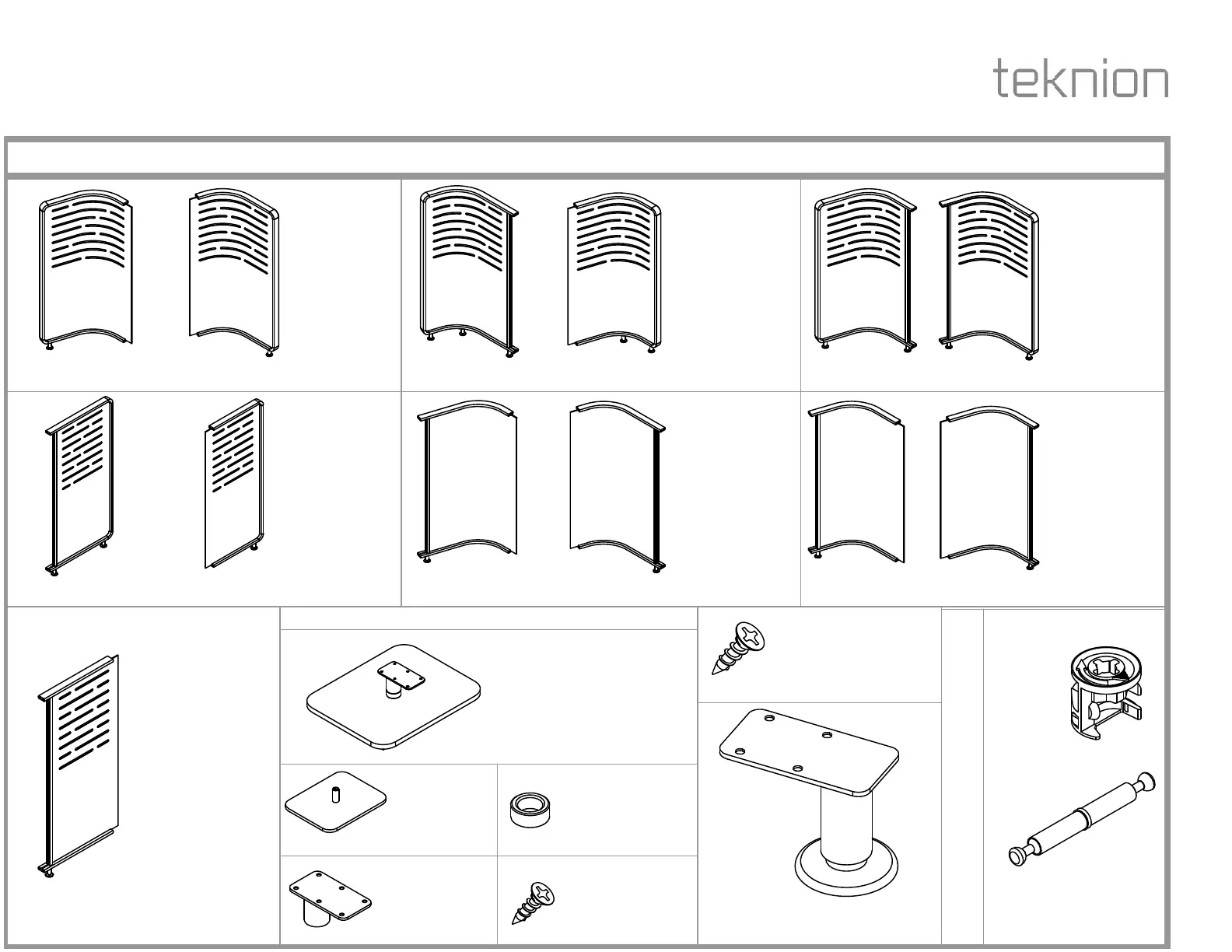

Part and Product Identification
Section:
Description:
Page No:
Date:
Rev. No:
4
FREESTANDING LOUNGE & SEMI-SUPPORTED SCREENS INSTALLATION
FREESTANDING SCREENS
May 2019
2 of 9
ZNS_101b
zones
Installation Guides
A1 - Curved End
Screen Assembly
(N02-3476) x qty.
varies
A2 - Reversed
Curved End
Screen Assembly
(N02-3836) x qty.
varies
(N02-3476\55\12\06P) (N02-3836\55\06\12P) (N02-3770\55\12\06P) (N02-3732\55\06\12P)
B1 - Reverse
Curved End
Screen Assembly
(N02-3770) x qty.
varies
B2 - Reversed
Curved End
Screen Assembly
(N02-3732) x qty.
varies
C1 - Curved End
Screen Assembly
(N02-3771) x qty.
varies
C2 - Reversed
Curved End
Screen Assembly
(N02-3860) x qty.
varies
(N02-3771\55\06\12P) (N02-3860\55\12\06P)
D1 - Flat End
Screen Assembly
Female
(N02-3661) x qty.
varies
D2 - Flat End
Screen Assembly
Male
(N02-3662) x qty.
varies
(N02-3661\55\24P) (N02-3662\55\24P)
F1 - Curved Mid
Screen Assembly
(N02-3773) x qty.
varies
F2 - Reversed
Curved Mid
Screen Assembly
(N02-3837) x qty.
varies
(N02-3773\55\06\12) (N02-3837\55\12\06)
G - Flat Screen
Assembly
(N02-3769) x qty.
varies
(N02-3769\55\24P)
E1 - Curved Mid
Screen Assembly
(N02-3772) x qty.
varies
E2 - Reversed
Curved Mid
Screen Assembly
(N02-3861) x qty.
varies
(N02-3772\55\12\06) (N02-3861\55\06\12)
H - Screen Anchor Plate Assembly (N09-7024) x qty varies
H1 - Screen
Anchor Plate
Asembly
(N09-6816) x 1
H2 - Bushing and
Plate Assembly
(N09-6815) x 1
H3 - Lock Ring
(A18-0345) x 1
H4 - Screw #8 x 5/8
LG Flat Quadrex
HD Wood Screw
(E04-0103) x6
K2 - Connecting Bolt
(E03-0831) x2
K1 - Minifix Cam
(E03-0832) x4
K - Screen Connector Kit
(N15-0966) x 2 per screen
J - Leg Assembly Telescoping - Screen
(N02-3479) x qty. varies
I - Screw #8 x 5/8 LG
Flat Quadrex HD Wood
Screw
(E04-0103) x qty. varies
NOTE: Not included in
(N02-3732), (N02-3771),
(N02-3860) and
(N02-3661).
NOTE: Only applies to
certain configurations.
To Next Page
