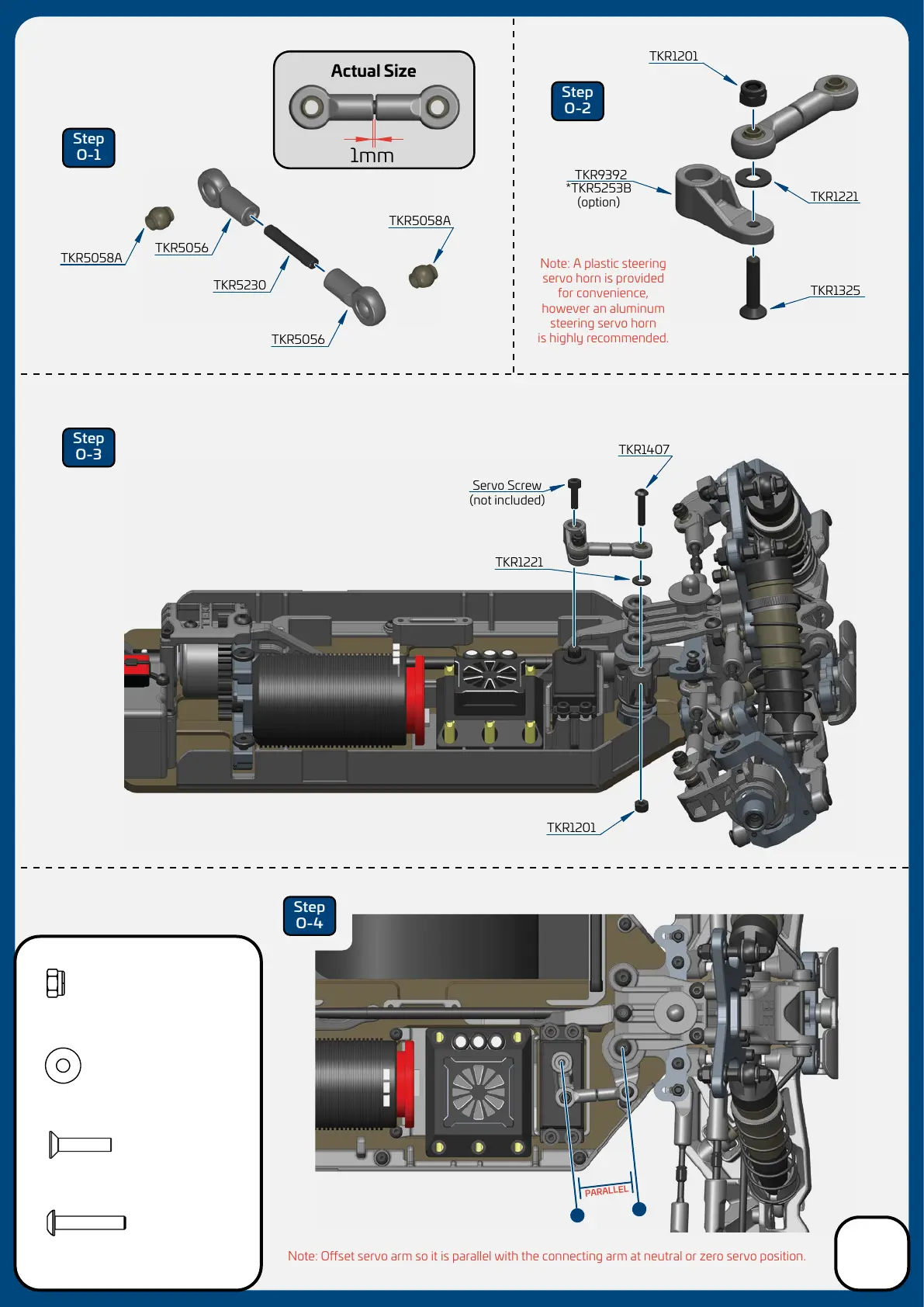

Tekno RC EB48 2.0 - Steering Linkage

Note: Oset servo arm so it is parallel with the connecting arm at neutral or zero servo position.
Note: A plastic steering
servo horn is provided
for convenience,
however an aluminum
steering servo horn
is highly recommended.
PARALLEL
1mm
Actual Size
Step
O-1
Step
O-3
Step
O-2
Step
O-4
TKR1407
TKR1325
TKR1201
TKR1221
TKR5058A
TKR5056
TKR1201
TKR1221
TKR5230
TKR5056
TKR5058A
TKR9392
*TKR5253B
(option)
Servo Screw
(not included)
TKR1325
M3x14mm Flat Head Screw
x1
TKR1201
M3 Lock Nut Black
x2
TKR1221
M3x8mm Washer
x2
TKR1407
M3x16mm Button Head Screw
x1
Bag O
Steering Linkage
22
