Tekno EB410.2 - P15_EB410_2 instructions_BagJ

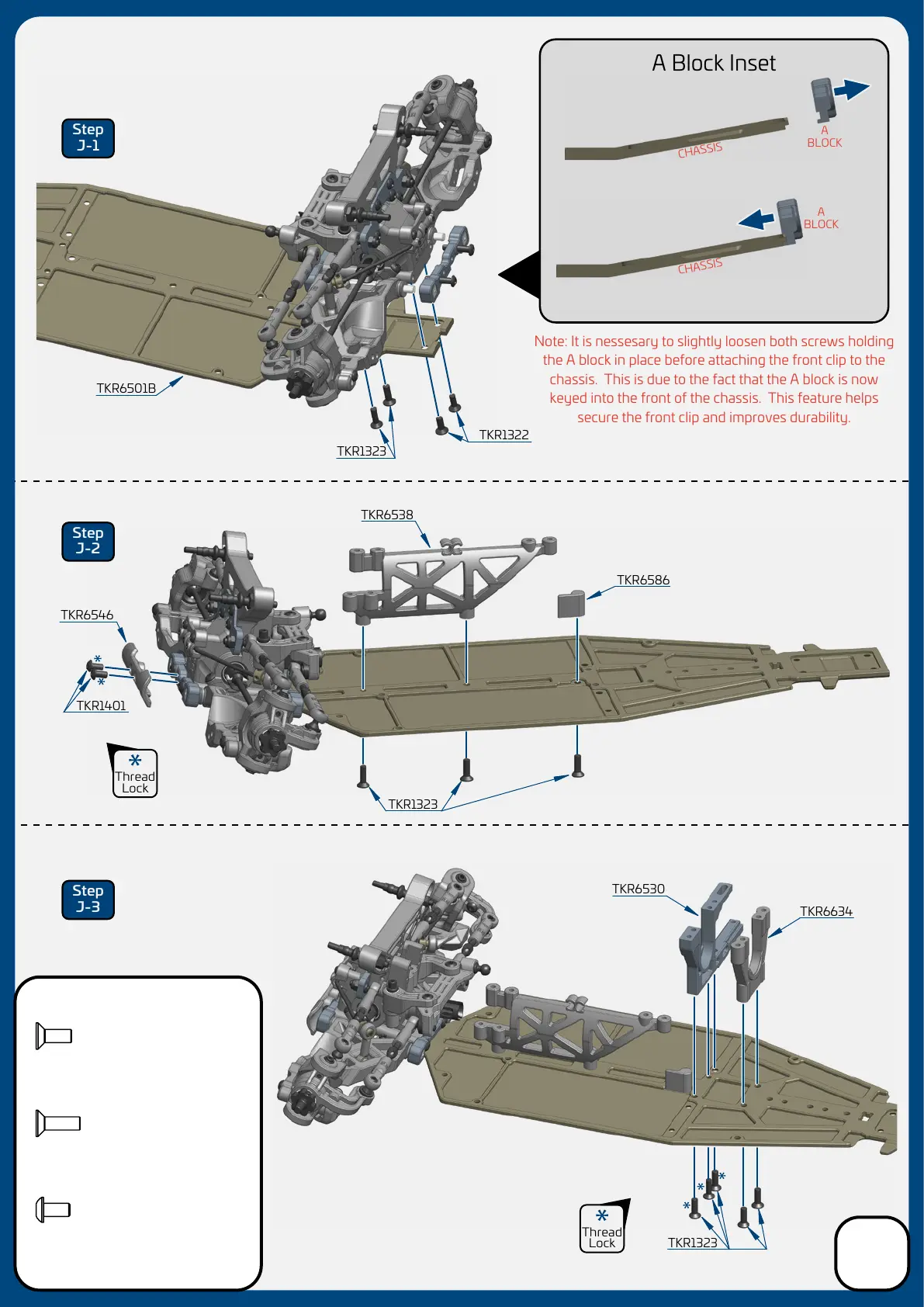

A Block Inset
Note: It is nessesary to slightly loosen both screws holding
the A block in place before attaching the front clip to the
chassis. This is due to the fact that the A block is now
keyed into the front of the chassis. This feature helps
secure the front clip and improves durability.
CHASSIS
CHASSIS
A
BLOCK
A
BLOCK
TKR1323
TKR6501B
TKR6586
TKR1323
TKR1322
TKR1401
TKR6546
TKR1323
TKR6530
TKR6634
TKR6538
Step
J-1
Step
J-2
Step
J-3
TKR1322
M3x8mm Flat Head Screw
x2
TKR1401
M3x6mm Button Head Screw
x2
TKR1323
M3x10mm Flat Head Screw
x10
Thread
Lock
Thread
Lock
Bag J
Front/Center Assembly
15
