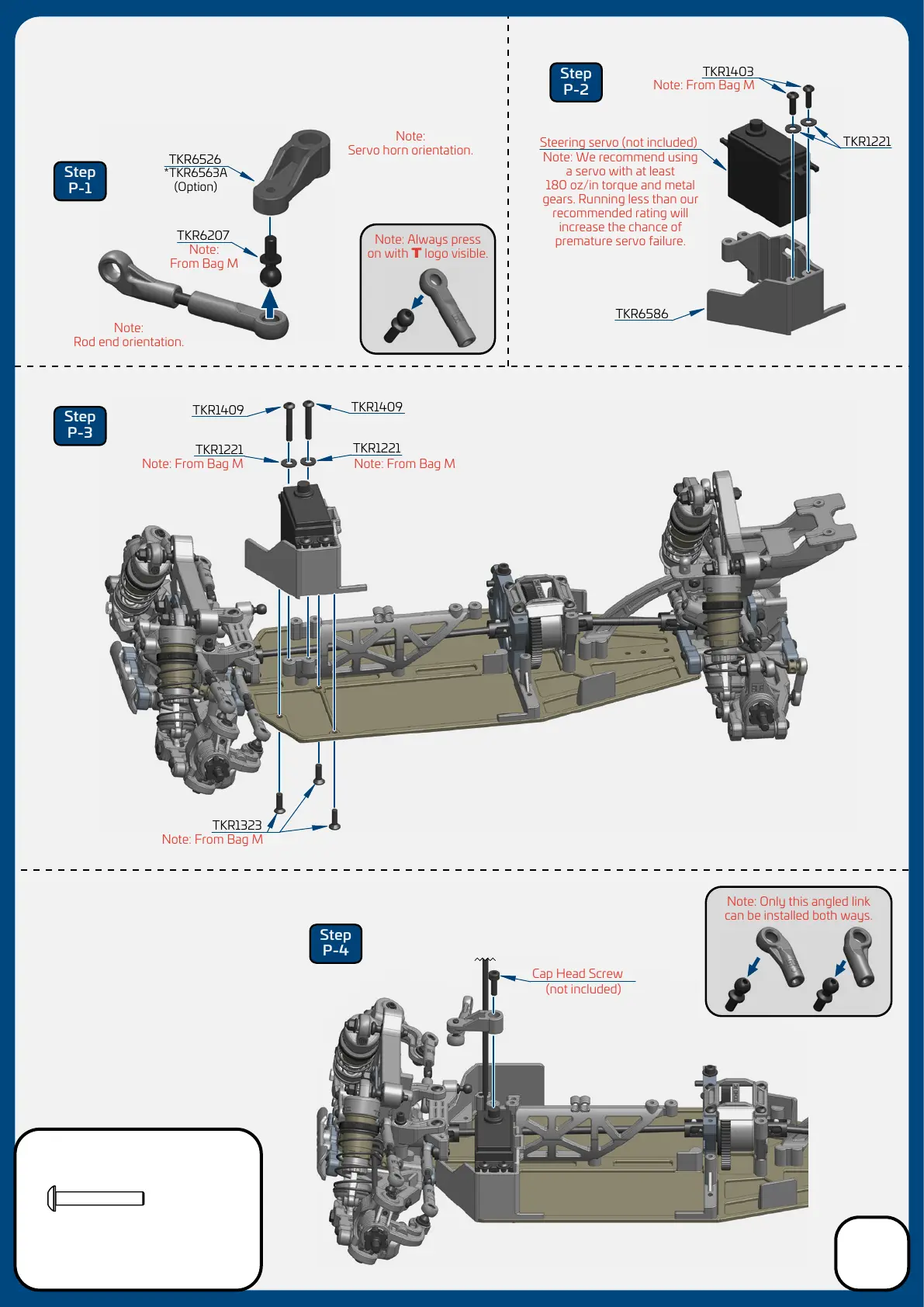

Step
P-1
Step
P-2
Step
P-3
Step
P-4
Steering servo (not included)
Note: We recommend using
a servo with at least
180 oz/in torque and metal
gears. Running less than our
recommended rating will
increase the chance of
premature servo failure.
Note: From Bag M
Note: From Bag MNote: From Bag M
Note:
From Bag M
Note: From Bag M
Note: Always press
on with
T
logo visible.
Note: Only this angled link
can be installed both ways.
TKR6586
TKR1403
TKR1221
TKR6207
TKR6526
*TKR6563A
(Option)
Note:
Rod end orientation.
Note:
Servo horn orientation.
TKR1409
TKR1323
TKR1409
TKR1221
TKR1221
Cap Head Screw
(not included)
TKR1409
M3x20mm Button Head Screw
x2
Bag P
Optional Tall Servo Mounting
25
To Next Page
