Tekno EB410.2 - P4_EB410_2 instructions_BagB

Bag B

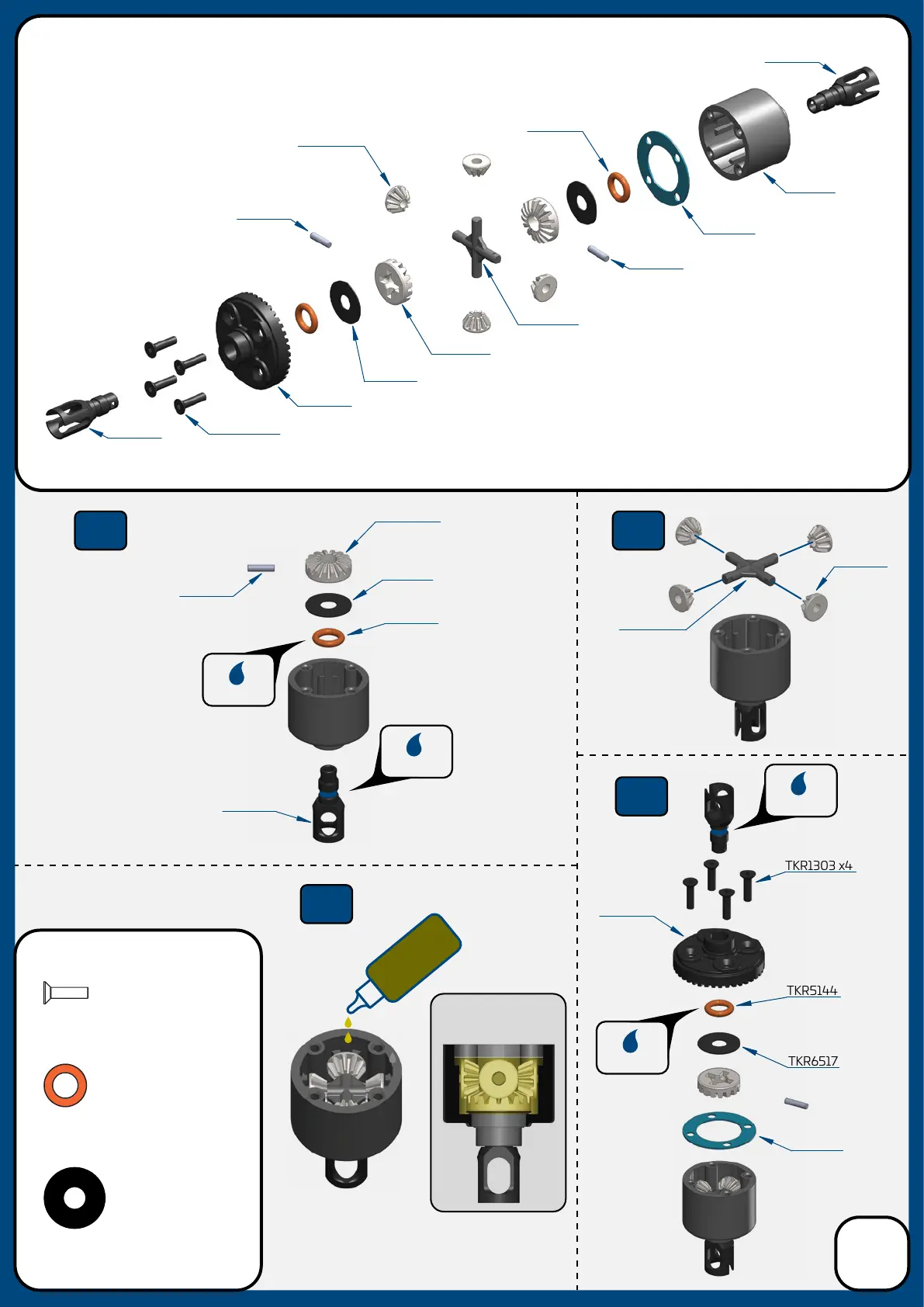

Front and Rear Dierential
(overview)
TKR6512
TKR6513X
TKR6550
TKR6515
TKR6511
TKR5144
TKR6517
TKR1303 x4
TKR6514
TKR6514
TKR6515
TKR5144
TKR1303 x4
4
Grease
Step
B-1
Step
B-2
Repeat for rear di
Fill Level
Di
Oil
Step
B-3
Step
B-4
Repeat for rear di
TKR5144
Dierential 0-rings
x4
TKR6517
Dierential Shims (5x14mm)
x4
TKR1303
M2.5x10mm Flat Head Screw
x8
Grease
TKR6513X
Repeat for rear di
Fill FRONT with #15,000 CST oil
Fill REAR with #10,000 CST oil
to 1mm below full
DO NOT OVER FILL
Repeat for rear di
TKR6517
TKR5144
Grease
Grease
TKR6550
TKR6514
TKR6514
TKR6512
TKR6514
TKR6514
Note: Apply grease to the
groove in the outdrive.
Note: Apply grease to the
groove where the o-ring is
placed as well as the o-ring itself.
TKR6550
TKR6517
TKR6550
