TKR1211
TKR1221
TKR1221
TKR1220
TKR1211
TKR1530
TKR1530
Step
F-3
Right
Left
TKR8052A
TKR9059C
TKR8052A
TKR5187B
TKR5187B
TKR9093
TKR9093
TKR9059C
TKR8052A
TKR8052A
43.25mm
Note: Notch always
goes on
left side of vehicle.
Actual Size
Step
F-4
Build Note: Hold the turnbuckle stationary
with pliers and push the rod end hard onto the
turnbuckle while turning at the same time.
Keep in mind that one end of the turnbuckle has
normal threads and the other has reverse threads.
Start the rod end straight and it will thread on straight.
Build Tip: Use some grease of
Chapstick to make assembly and
future adjustments easier.

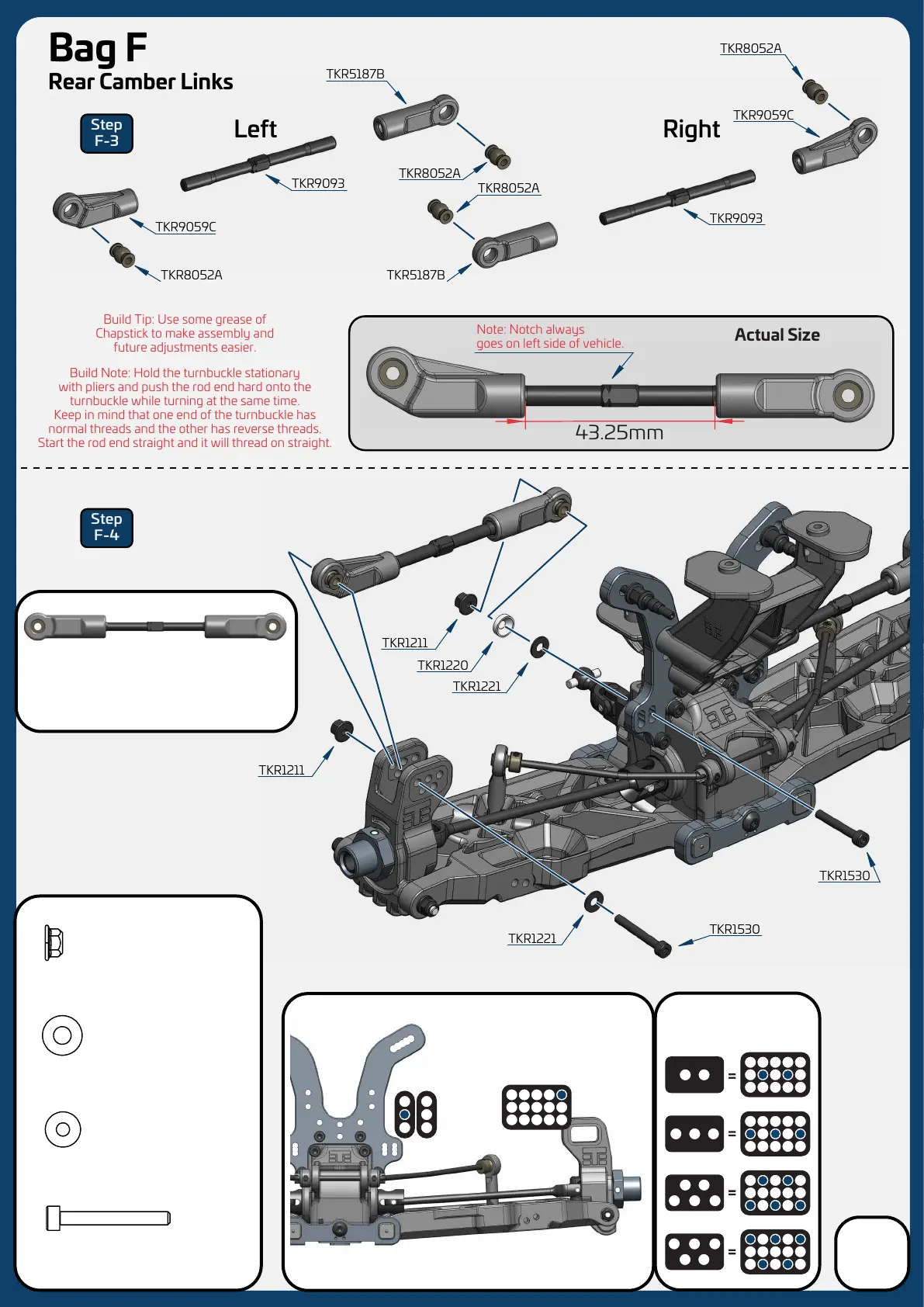

Bag F
Rear Camber Links
9
TKR1211
M3 Lock Nut Flange Black
x2
TKR1221
M3x8mm Washer
x4
TKR1220
M3 Countersunk Washer
X2
TKR1530
M3x25mm Cap Head Screw
x4
HUB INSERTS
Note: If you are running a short/low link
or don’t need excessive droop, you may
be able to use the straight rod ends
(TKR5187B) located in BAG S.
1
2
3
4
5
6
REAR HUB
Stock position is 2/5
To Next Page
