System Installation
Wiring Installation
The bulk of the necessary wiring information can be found in the wiring diagrams at the end of this
manual.
IMPORTANT: Liberty AV Solutions cable or equivalent is required for this install-
ation. Using other types of cable can cause various issues with the system and confusion
during installation.
Refer to Figure 18 on page 33 for additional cable specifications.
The NC356CE includes two master station ports, two patient station ports and PK356 port on the rear of
the module. Interconnection cable harnesses, CT318, (also known as “whip” or “pigtail” connectors) are
provided for the two patient station ports with the central equipment. Connect the PK356 Power Supply
to the NC356CE using the included 15-pin serial cable. Each port type is separately described below,
with the specifics of connection.

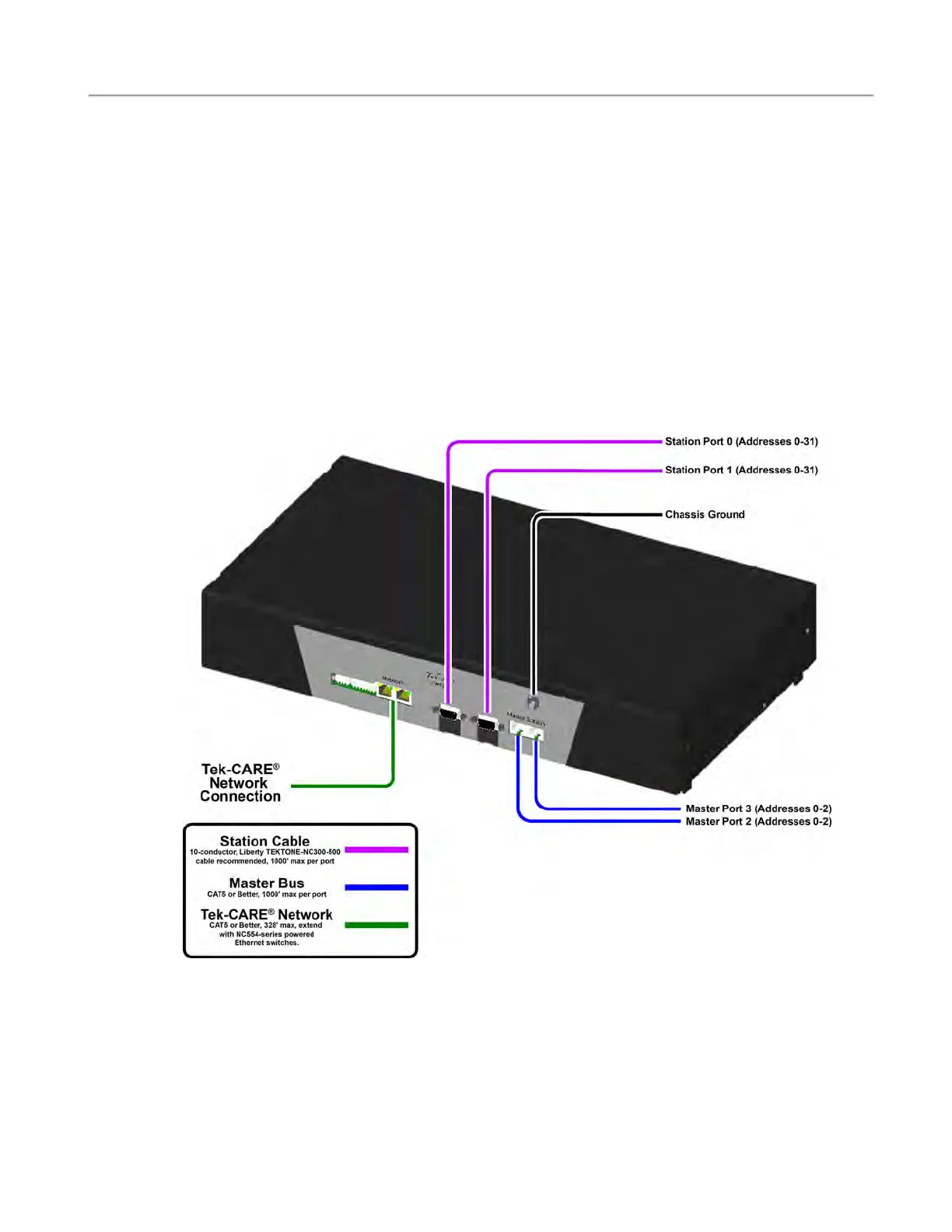

Figure 4 - NC356CE Connections
12|IL1057 Tek-CARE300III Installation Manual
