Master Station Ports: Each master station port supports three master stations and a maximum of 1000' of
interconnecting cable. CAT5 wiring or better is needed for the master station. Up to 6 master stations
can be connected to a NC356CE Module. Each NC404TS and NC415AV Master Station must be
assigned a unique address using the dip switches on the back of the master. The last NC415AV or
NC404TS Master Station that is furthest away from the CE should have a dip switch 5 turned ON for
the EOL resistor.

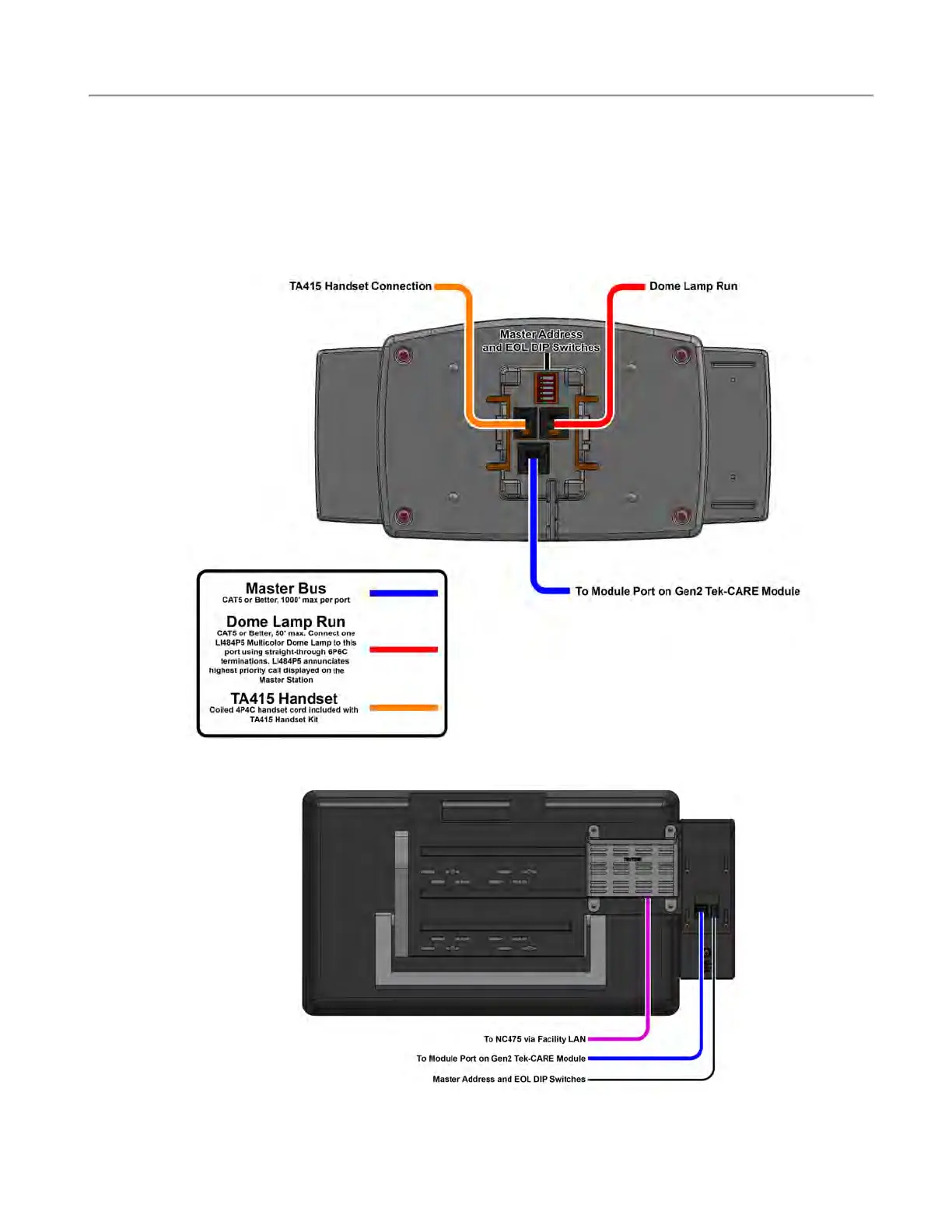

Figure 5 - NC415AV Master Station Connections
Figure 6 - NC404TS Master Station Connections
Copyright
©
TekTone Sound and Signal Mfg., Inc. All Rights Reserved
IL1057 Tek-CARE300III Installation Manual | 13
System Installation
