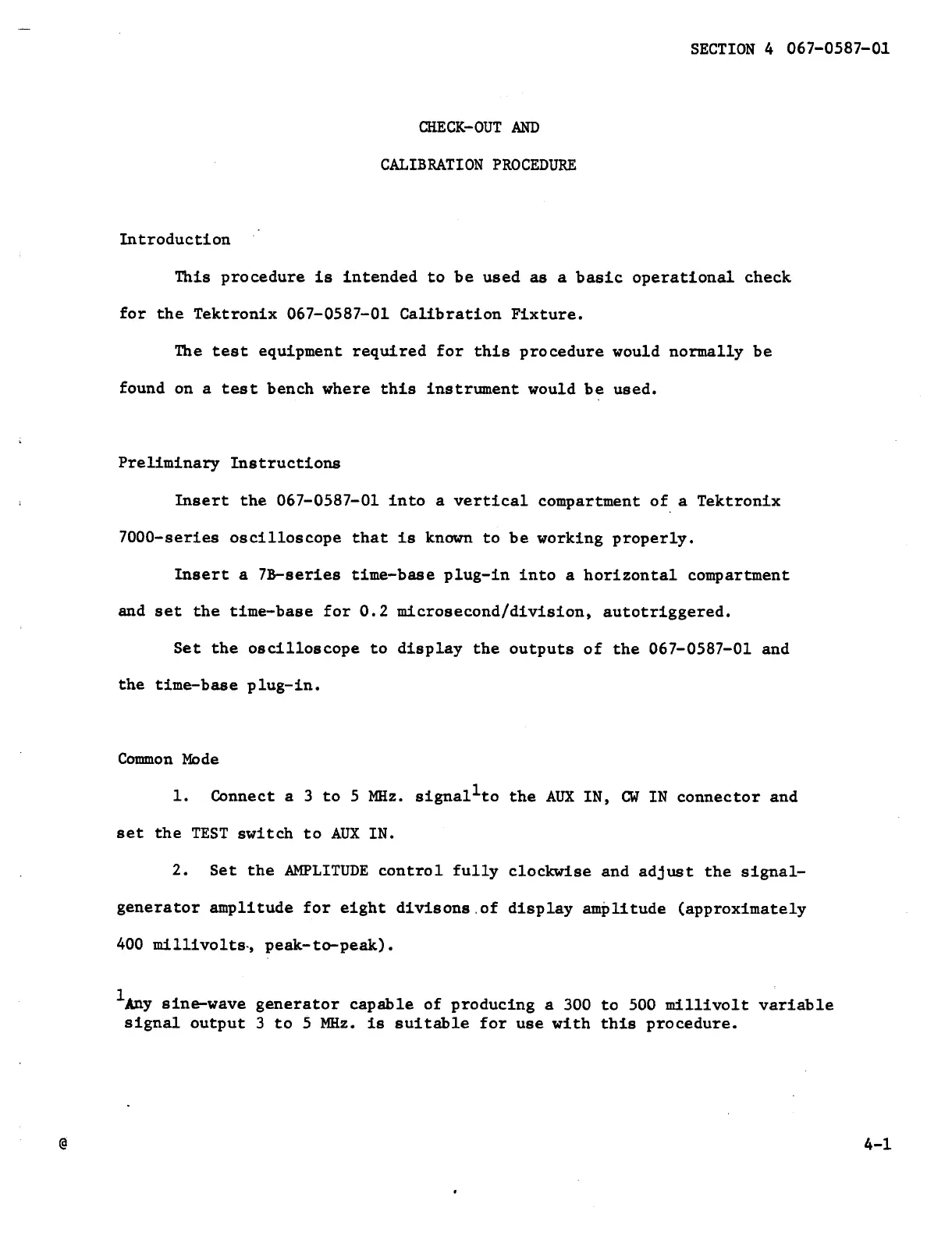

SECTION
4
067-0587-01
CHECK-OUT
AND
CALIBRATION
PROCEDURE
Introduction
This
procedure
is
intended
to
be
used
as
a
basic
operational
check
for
the
Tektronix
067-0587-01
Calibration
Fixture.
The
test
equipment
required
for
this
procedure
would
normally
be
found
on
a
test
bench
where
this
instrument
would
be
used.
Preliminary
Instructions
Insert
the
067-0587-01
into
a
vertical
compartment
of
a
Tektronix
7000-series
oscilloscope
that
is
known
to
be
working
properly.
Insert
a
7B-series
time-base
plug-in
into
a
horizontal
compartment
and
set the
time-base
for
0.2
microsecond/division,
autotriggered.
Set
the
oscilloscope
to
display
the
outputs
of
the
067-0587-01
and
the
time-base
plug-in.
Common
Mode
1.
Connect
a
3
to
5
MHz.
signallto
the
AUX
IN,
CW
IN
connector
and
set
the
TEST
switch
to
AUX
IN.
2.
Set
the
AMPLITUDE
control
fully
clockwise
and
adjust
the
signal-
generator
amplitude
for
eight
divisons
of
display
amplitude
(approximately
400
millivolts.,
peak-to-peak).
lany
sine-wave
generator
capable
of
producing
a
300
to
500
millivolt
variable
signal
output
3
to
5
MHz.
is
suitable
for
use
with
this
procedure.
