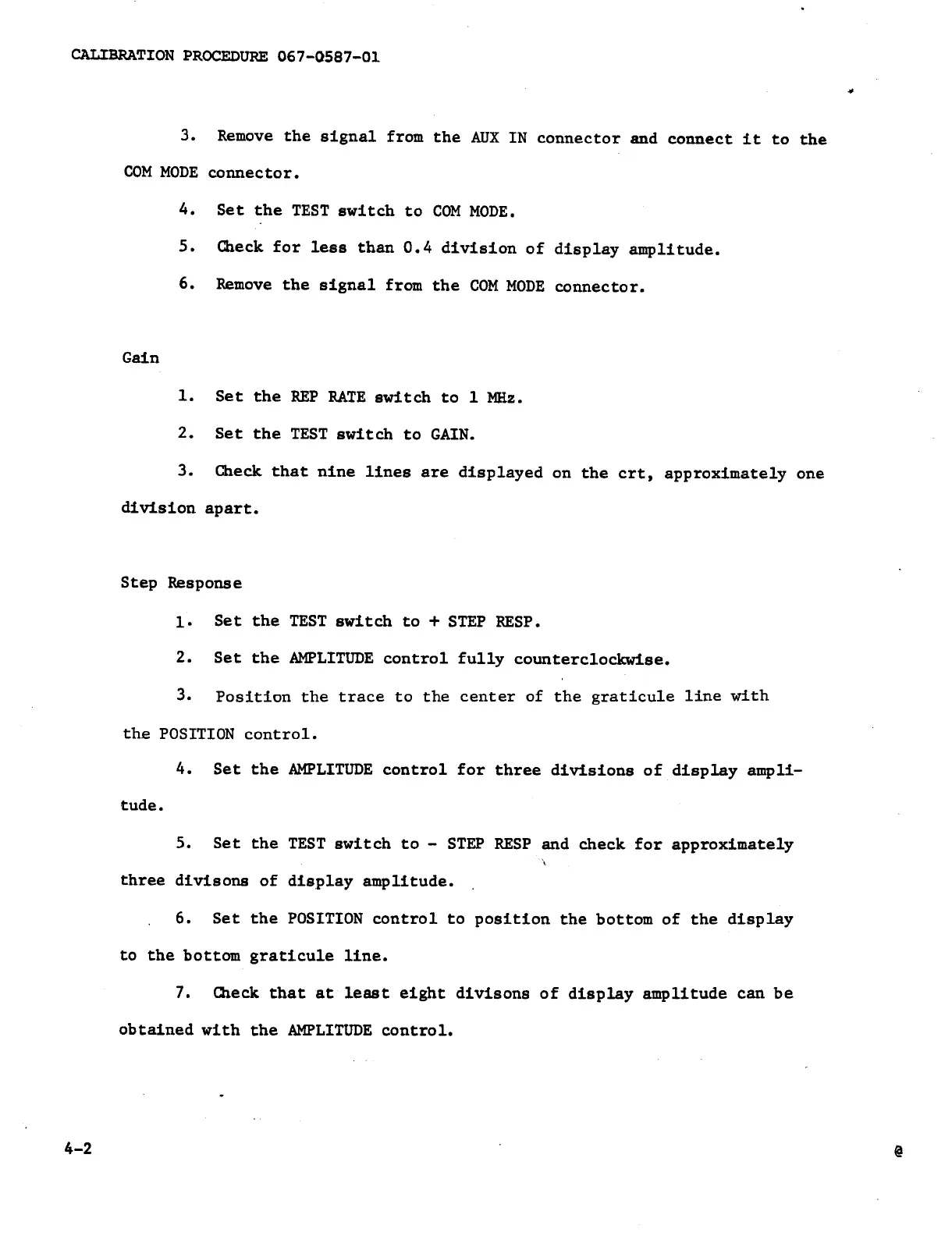

CALIBRATION
PROCEDURE
067-0587-01
3.
Remove
the
signal
from
the
AUX
IN
connector
and
connect
it
to
the
COM
MODE
connector.
4.
Set
the
TEST
switch
to
COM
MODE.
5.
Check
for
less
than
0.4
division
of
display
amplitude.
6.
Remove
the
signal
from
the
COM
MODE
connector.
Gain
1.
Set
the
REP
RATE
switch
to
1
MHz.
2.
Set
the
TEST
switch
to
GAIN.
3.
Check
that
nine
lines
are
displayed
on
the
crt,
approximately
one
division
apart.
Step
Response
1.
Set
the
TEST
switch
to
+
STEP
RESP.
2.
Set
the
AMPLITUDE
control
fully
counterclockwise.
3.
Position
the
trace
to
the
center
of
the
graticule
line
with
the
POSITION
control.
4.
Set
the
AMPLITUDE
control
for
three
divisions
of
display
ampli-
tude.
5.
Set
the
TEST
switch
to
-
STEP
RESP
and
check
for
approximately
three
divisons
of
display
amplitude.
|
6.
Set
the
POSITION
control
to
position
the
bottom
of
the
display
to
the
bottom
graticule
line.
7.
Check
that
at
least
eight
divisons
of
display
amplitude
can
be
obtained
with
the
AMPLITUDE
control.
