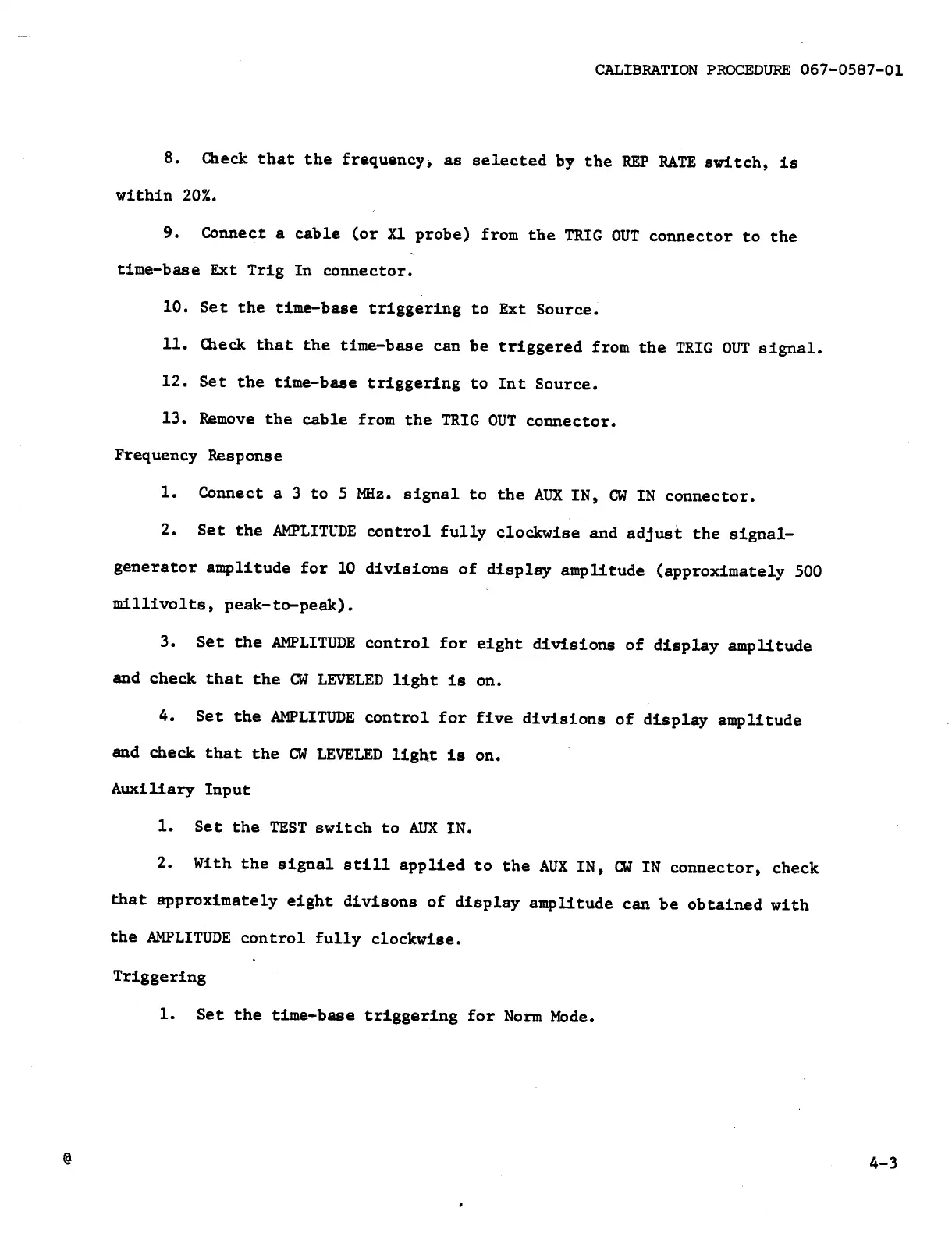

CALIBRATION PROCEDURE 067-0587-01
8.
Check
that
the
frequency,
as
selected
by
the
REP
RATE
switch,
is
within 20%.
9.
Connect
a
cable
(or
Xl
probe)
from
the
TRIG
OUT
connector
to
the
time-base Ext Trig In connector.
10. Set the time—base triggering to Ext Source.
11.
Check
that
the
time-base
can
be
triggered
from
the
TRIG
OUT
signal.
12.
Set
the
time-base
triggering
to
Int
Source.
13.
Remove
the
cable
from
the
TRIG
OUT
connector.
Frequency Response
1.
Connect
a
3
to
5
MHz.
signal
to
the
AUX
IN,
CW
IN
connector.
2.
Set
the
AMPLITUDE
control
fully
clockwise
and
adjust
the
signal-
generator
amplitude
for
10
divisions
of
display
amplitude
(approximately
500
millivolts,
peak-to-peak).
|
3.
Set
the
AMPLITUDE
control
for
eight
divisions
of
display
amplitude
and check that the CW LEVELED light is on.
4.
Set
the
AMPLITUDE
control
for
five
divisions
of
display
amplitude
and
check
that
the
CW
LEVELED
light
is
on.
Auxiliary Input
1. Set the TEST switch to AUX IN.
2.
With
the
signal
still
applied
to
the
AUX
IN,
CW
IN
connector,
check
that
approximately
eight
divisons
of
display
amplitude
can
be
obtained
with
the AMPLITUDE control fully clockwise.
Triggering |
1.
Set
the
time-base
triggering
for
Norm
Mode.
