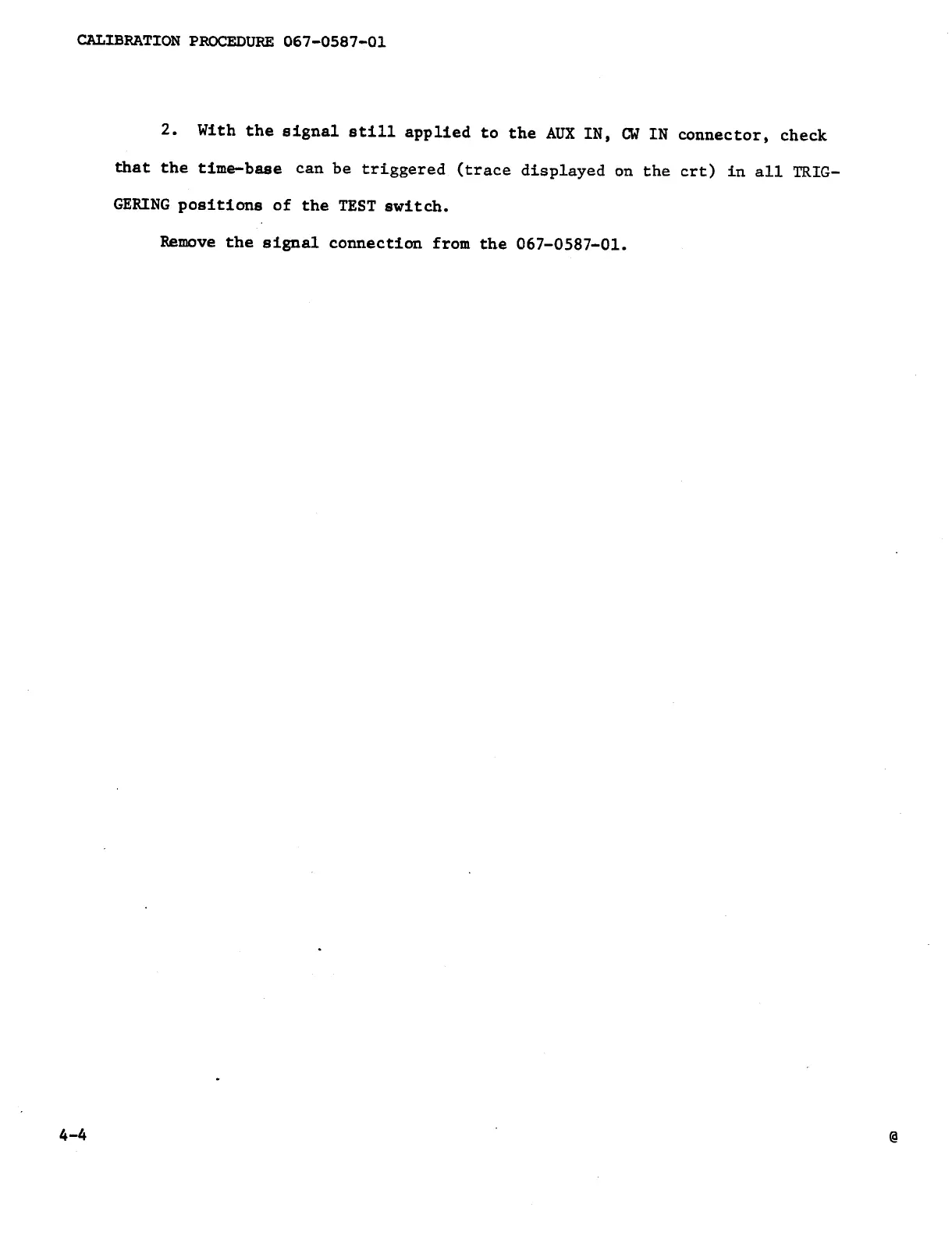

CALIBRATION PROCEDURE 067-0587-01
2.
With
the
signal
still
applied
to
the
AUX
IN,
CW
IN
connector,
check
that
the
time-base
can
be
triggered
(trace
displayed
on
the
crt)
in
all
TRIG-
GERING positions of the TEST switch.
Remove
the
signal
connection
from
the
067-0587-01.
